- Screen Type
- IPS display LCD monitor
- Screen size
- 10.1 inch（16: 9/4: 3）IPS
- Maximum resolution supported
- 1920(RGB)*1080 Pixel
- Brightness
- 500cd/m2
Product highlights
Simple fashion design, using 10.1 inch high brightness IPS screen, maximum resolution 1920*1080 RGB. Multi-functional Mini TV Screen: It support VGA / AVI / HDMI / DVD / PC / CCTV / TV, compatible with security system, vehicle monitor, backup camera system, it is suitable for gaming, computer and…
Specifications
General
- Screen Type
- IPS display LCD monitor
- Screen size
- 10.1 inch（16: 9/4: 3）IPS
- Maximum resolution supported
- 1920(RGB)*1080 Pixel
- Brightness
- 500cd/m2
- Active Display Area
- 216.96(H) X 135.60(V)[mm]
- Viewing angle
- 90°/90° (left/right), 90°/90°(up/down)
Show 11 more specifications
- Power supply
- DC12V (power by 12V-24V）
- Power Consumption
- 6W
- Signal interface(s)
- VGA, BNC, USB, HDMI, AV input, DC12V
- Audio input
- left/right signal input
- Speaker
- Built in Speaker(1x2w)
- System
- PAL/ NTSC system (auto switch)
- Language Menus
- Chinese/English/Russian/French/Italian/German,etc.
- Operation Method
- Full function remote controller
- Image rotaion
- Upper/lower/left/right
- Operatiom Temprature
- -20℃ ～ +70 ℃
- Outline Dimension
- 253mm*166mm*35mm
Full product details
Product overview
Simple fashion design, using 10.1 inch high brightness IPS screen, maximum resolution 1920*1080 RGB.
Multi-functional Mini TV Screen: It support VGA / AVI / HDMI / DVD / PC / CCTV / TV, compatible with security system, vehicle monitor, backup camera system, it is suitable for gaming, computer and so on.
Support AV input, provide all the way around the video and audio input, audio and video equipment to facilitate the connection.
Supports horizontal or vertical image inversion function options to meet different angles installation mode.
Support multi-language selection.
Built-in speaker.
Technical details and package contents
Screen Type: IPS display LCD monitor
Screen size: 10.1 inch（16: 9/4: 3）IPS
Maximum resolution supported: 1920(RGB)*1080 Pixel
Brightness: 500cd/m2
Active Display Area: 216.96(H) X 135.60(V)[mm]
Viewing angle: 90°/90° (left/right), 90°/90°(up/down)
Power supply: DC12V (power by 12V-24V）
Power Consumption: 6W

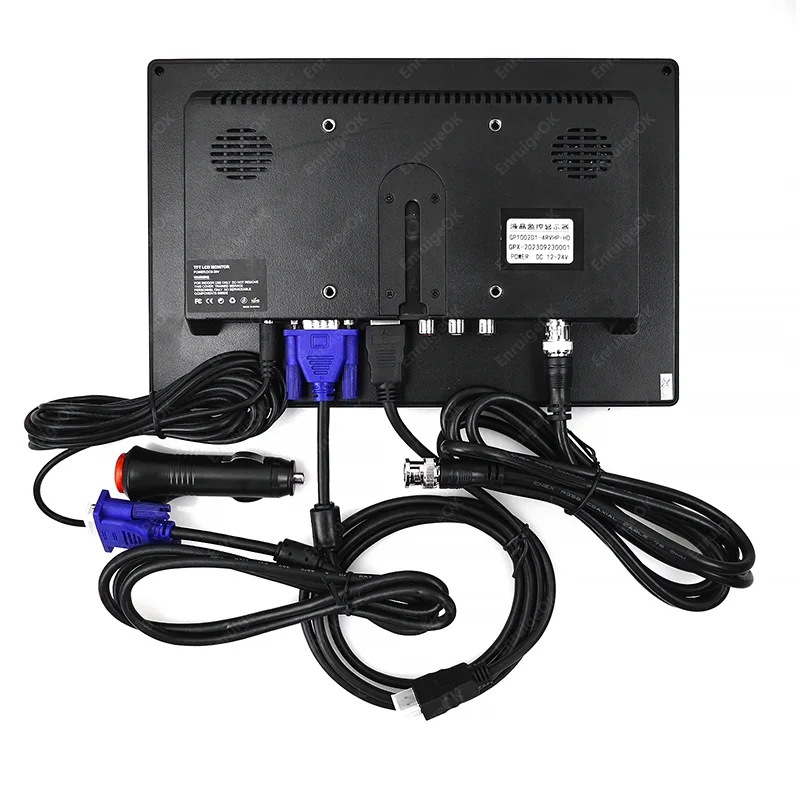

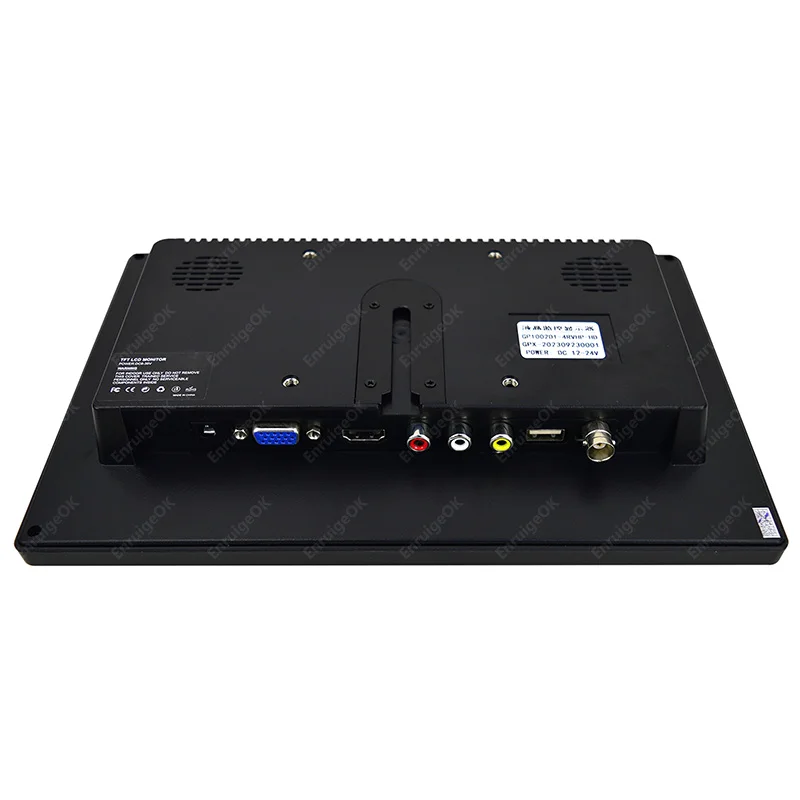

Signal interface(s): VGA, BNC, USB, HDMI, AV input, DC12V
Audio input: left/right signal input
Speaker: Built in Speaker(1x2w)
System: PAL/ NTSC system (auto switch)
Language Menus: Chinese/English/Russian/French/Italian/German,etc.
Operation Method: Full function remote controller
Image rotaion: Upper/lower/left/right
Operatiom Temprature: -20℃ ～ +70 ℃

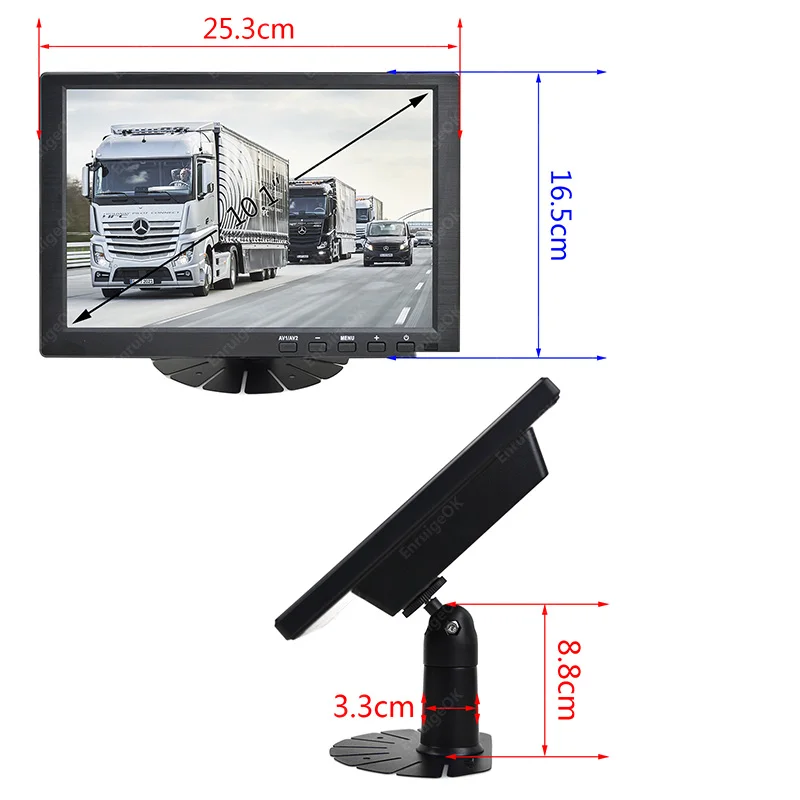

Outline Dimension: 253mm*166mm*35mm

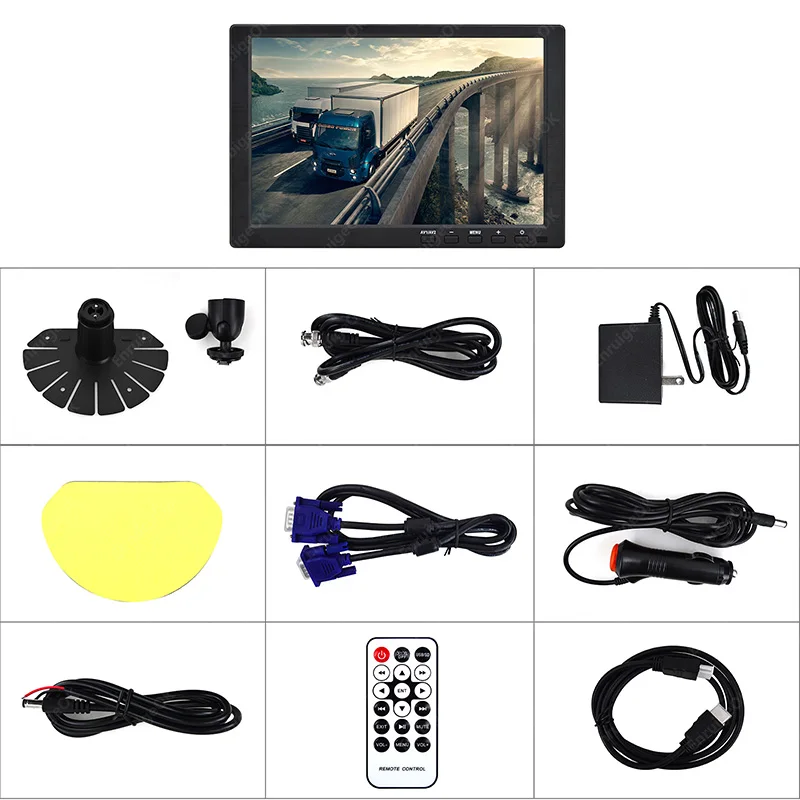

Package Included:
1 X Monitor
1 X Bracket
1 X Sticker
1 X Cigarette lighter power cable
1 X Remote control
1 X BNC cable
1 X VGA cable
1 X USB cable
1 X DC cable
1 X Power adapter
