ERG-5409

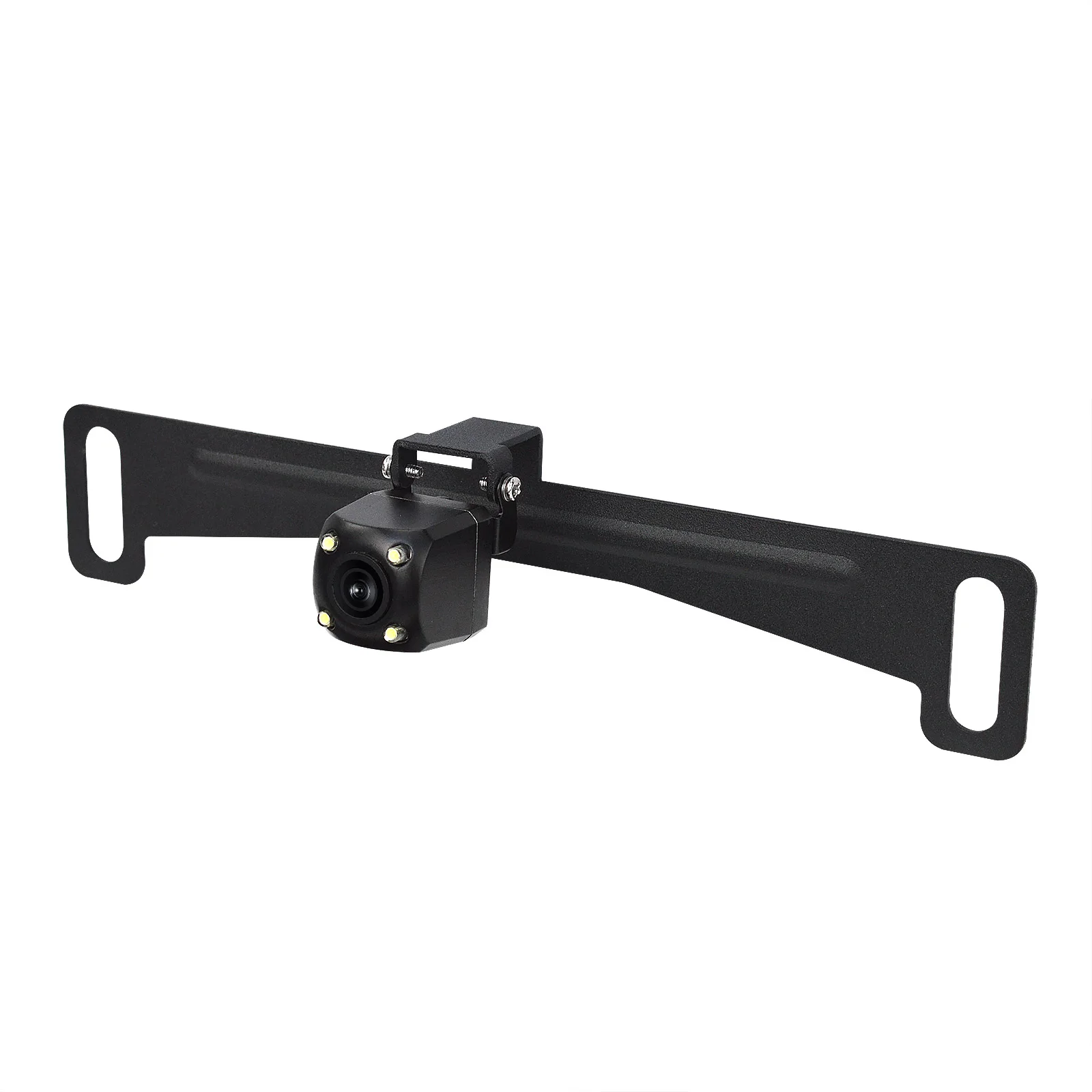

5-inch IPS Monitor and License Plate Backup Camera Kit
Open full-size image ↗
1 / 23
- Monitor — Screen size
- 5 inch IPS display
- Monitor — Display format
- 4: 3
- Monitor — Video
- 1-channel video input
- Monitor — Resolution
- 800(H) x 480(V) IPS
5-inch IPS monitor and AHD 1080P rear-view camera kit with adjustable parking guidelines, a suction-cup display mount and DC 12V power.
Specifications
General
- Monitor — Screen size
- 5 inch IPS display
- Monitor — Display format
- 4: 3
- Monitor — Video
- 1-channel video input
- Monitor — Resolution
- 800(H) x 480(V) IPS
- Monitor — Power supply
- DC 12V
- Monitor — Video system
- NTSC / PAL auto switch
Show 21 more specifications
- Monitor — Power consumption
- <4W
- Monitor — Operation temperature
- -20℃ ~ 60℃
- Monitor — Storage temperature
- -20℃ ~ 60℃
- Monitor — Note
- Display activates only when a video signal is connected
- Camera — Image sensor
- 1/3″ CMOS
- Camera — TV system
- PAL/NTSC
- Camera — Effective pixel
- 1920H*1080V
- Camera — Resolution
- AHD 1080P
- Camera — Waterproof rating
- IP68
- Camera — Viewing angle
- Imaging angle 120°, horizontal angle 100°
- Camera — Horizontal sync frequency
- 15.625KHZ
- Camera — Vertical sync frequency
- NTSC 60HZ
- Camera — Scanning system
- 2:1 interface
- Camera — Sync system
- Internal
- Camera — ACG
- Auto
- Camera — BLC
- Auto
- Camera — S/N Ratio
- More than 48dB
- Camera — Current consumption
- no more than 150mA
- Camera — Minimum illumination
- 0.1 – 0.5Lux / F = 1.2
- Camera — Power supply
- DC12V
- Camera — Operating temperature
- -20°~70°C
Monitor specifications
- Screen size
- 5 inch IPS display
- Display format
- 4: 3
- Video
- 1-channel video input
- Resolution
- 800(H) x 480(V) IPS
- Power supply
- DC 12V
- Video system
- NTSC / PAL auto switch
Show 4 more specifications
- Power consumption
- <4W
- Operation temperature
- -20℃ ~ 60℃
- Storage temperature
- -20℃ ~ 60℃
- Note
- Display activates only when a video signal is connected
Camera specifications
- Image sensor
- 1/3″ CMOS
- TV system
- PAL/NTSC
- Effective pixel
- 1920H*1080V
- Resolution
- AHD 1080P
- Waterproof rating
- IP68
- Viewing angle
- Imaging angle 120°, horizontal angle 100°
Show 11 more specifications
- Horizontal sync frequency
- 15.625KHZ
- Vertical sync frequency
- NTSC 60HZ
- Scanning system
- 2:1 interface
- Sync system
- Internal
- ACG
- Auto
- BLC
- Auto
- S/N Ratio
- More than 48dB
- Current consumption
- no more than 150mA
- Minimum illumination
- 0.1 – 0.5Lux / F = 1.2
- Power supply
- DC12V
- Operating temperature
- -20°~70°C
Full product details
Product overview

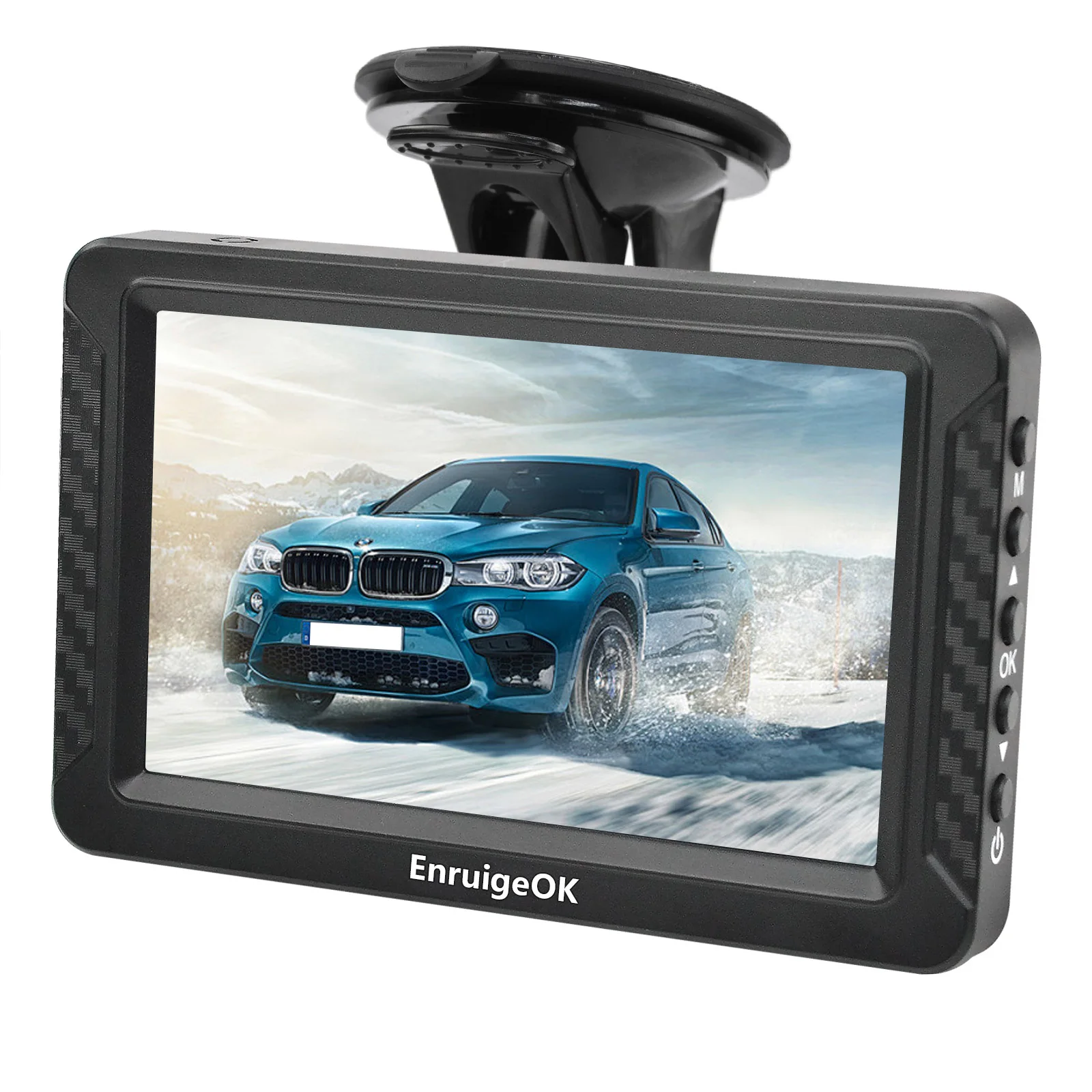

ERG-5409 combines a 5-inch IPS monitor with an AHD 1080P rear-view camera for reversing and parking applications. The monitor has an 800 × 480 display and a single video input. Confirm the camera style and installation requirements before ordering.
Key features
- Adjustable parking guidelines can be moved up, down, left and right.
- Mirror and original image modes.

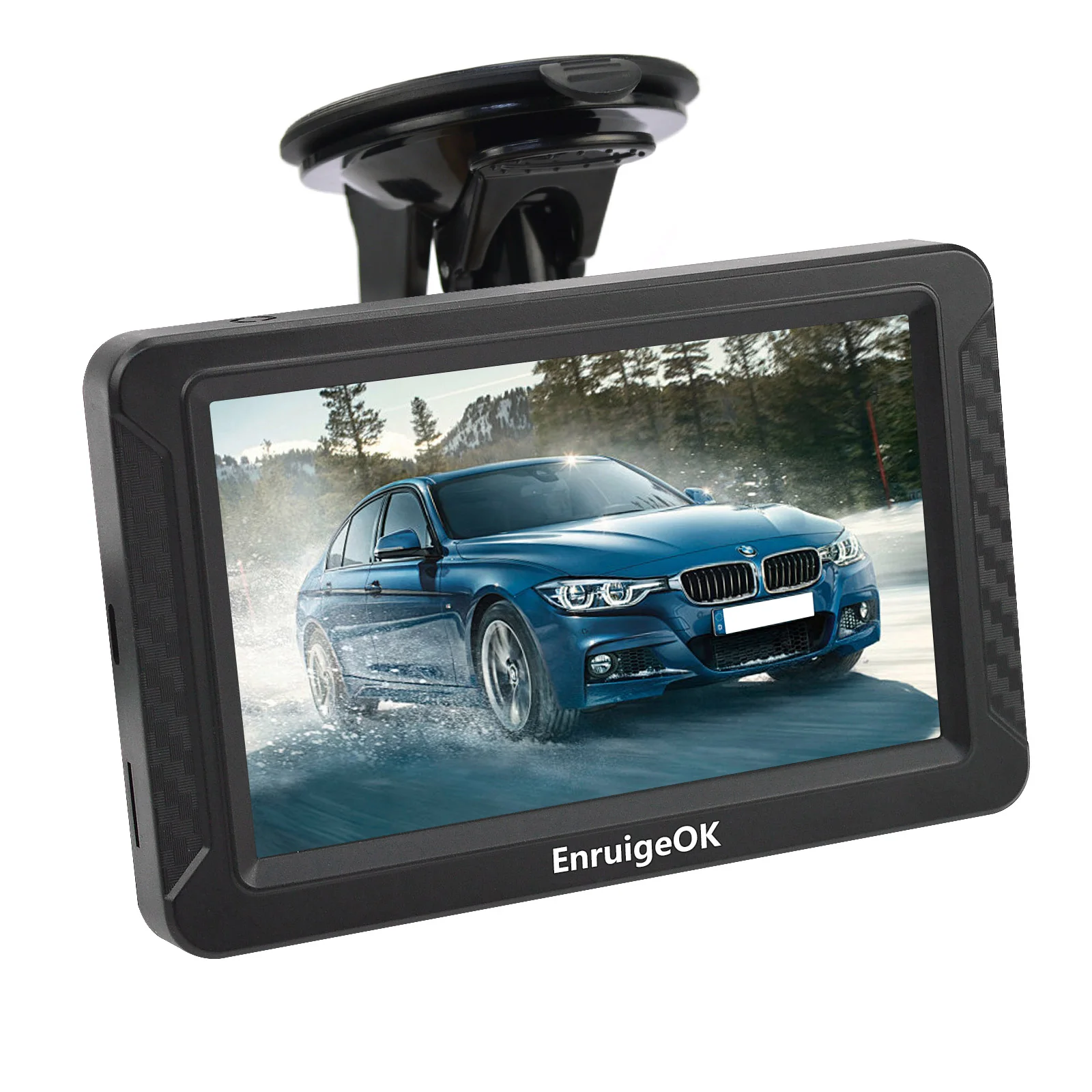

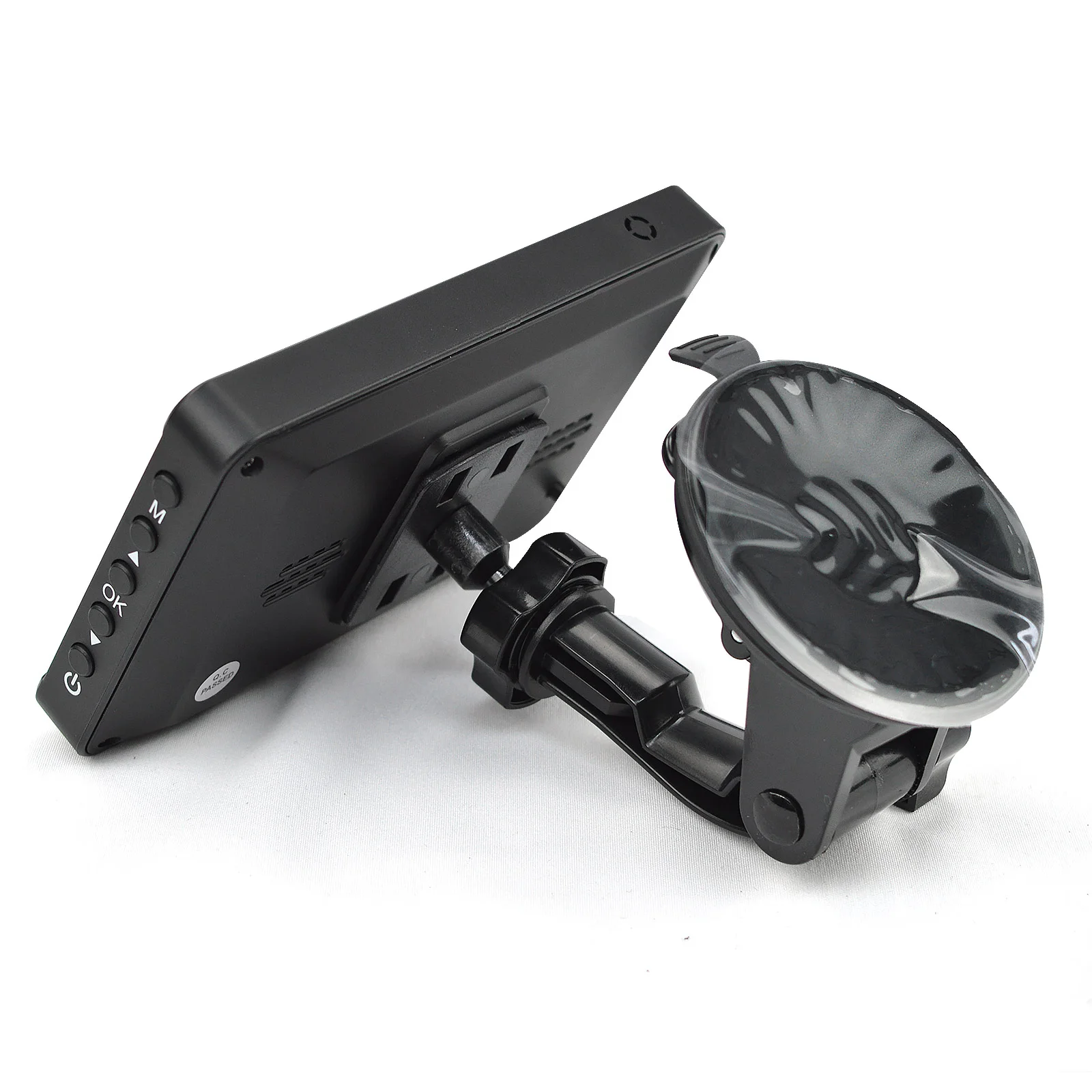

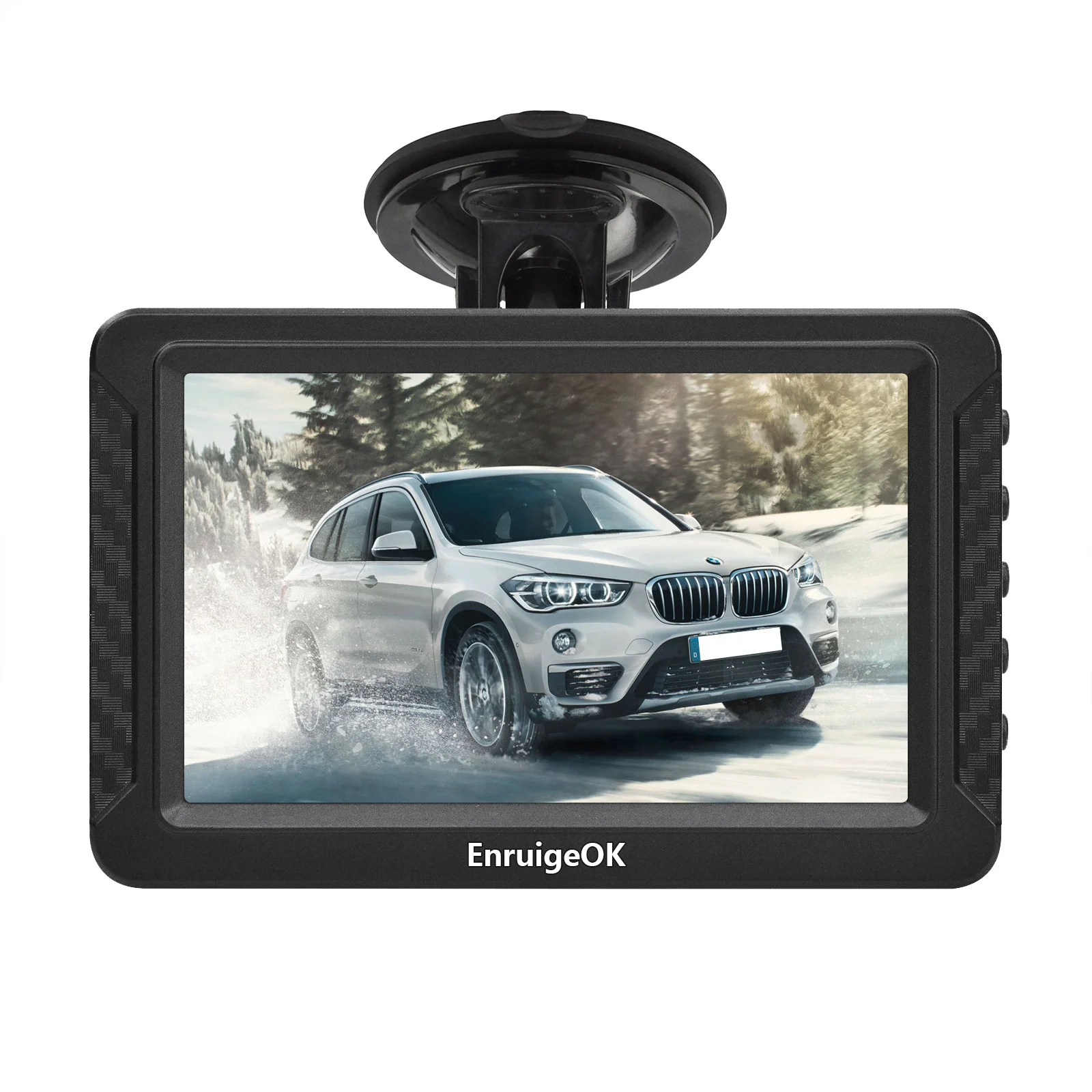

- Windshield suction-cup mount with 360° adjustment.

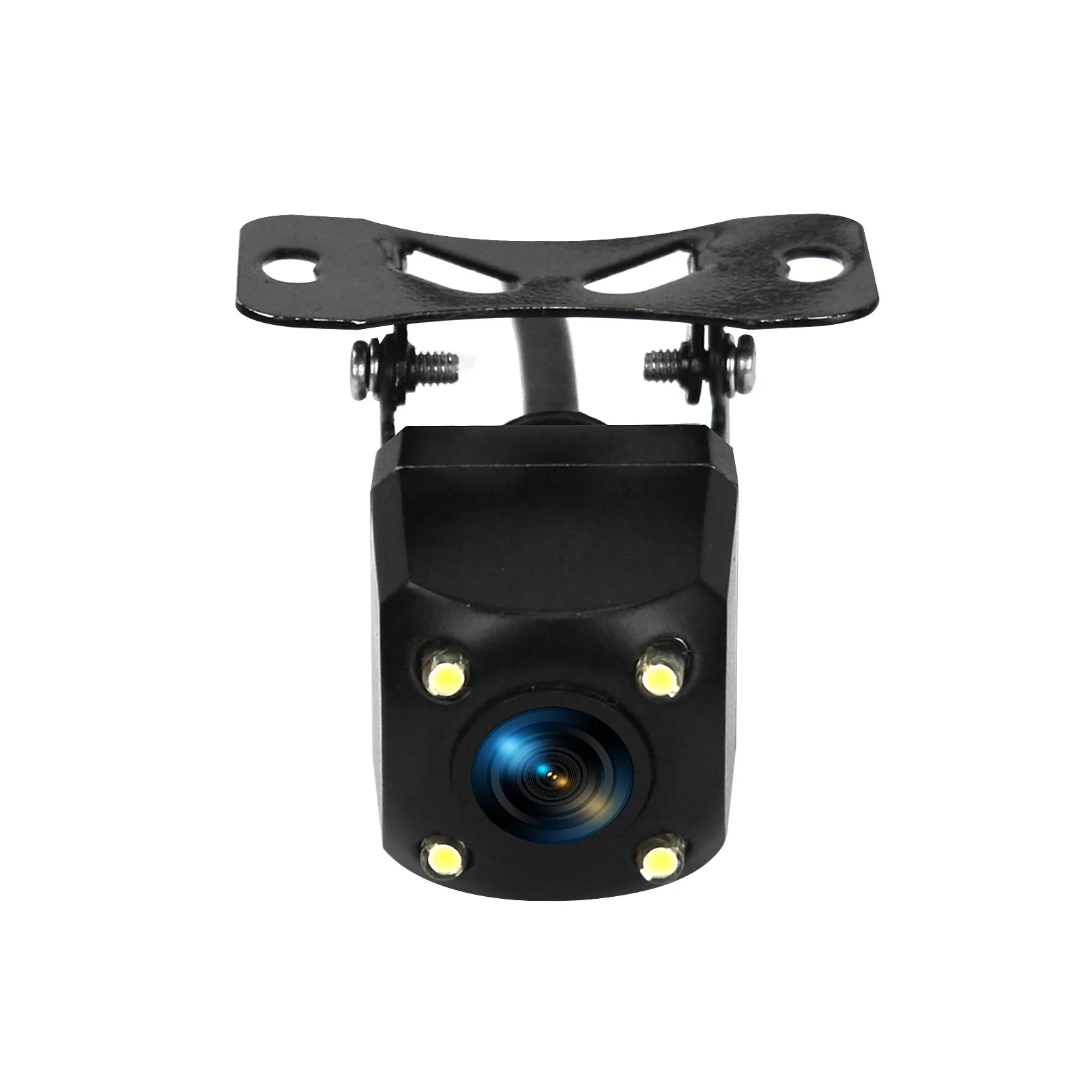

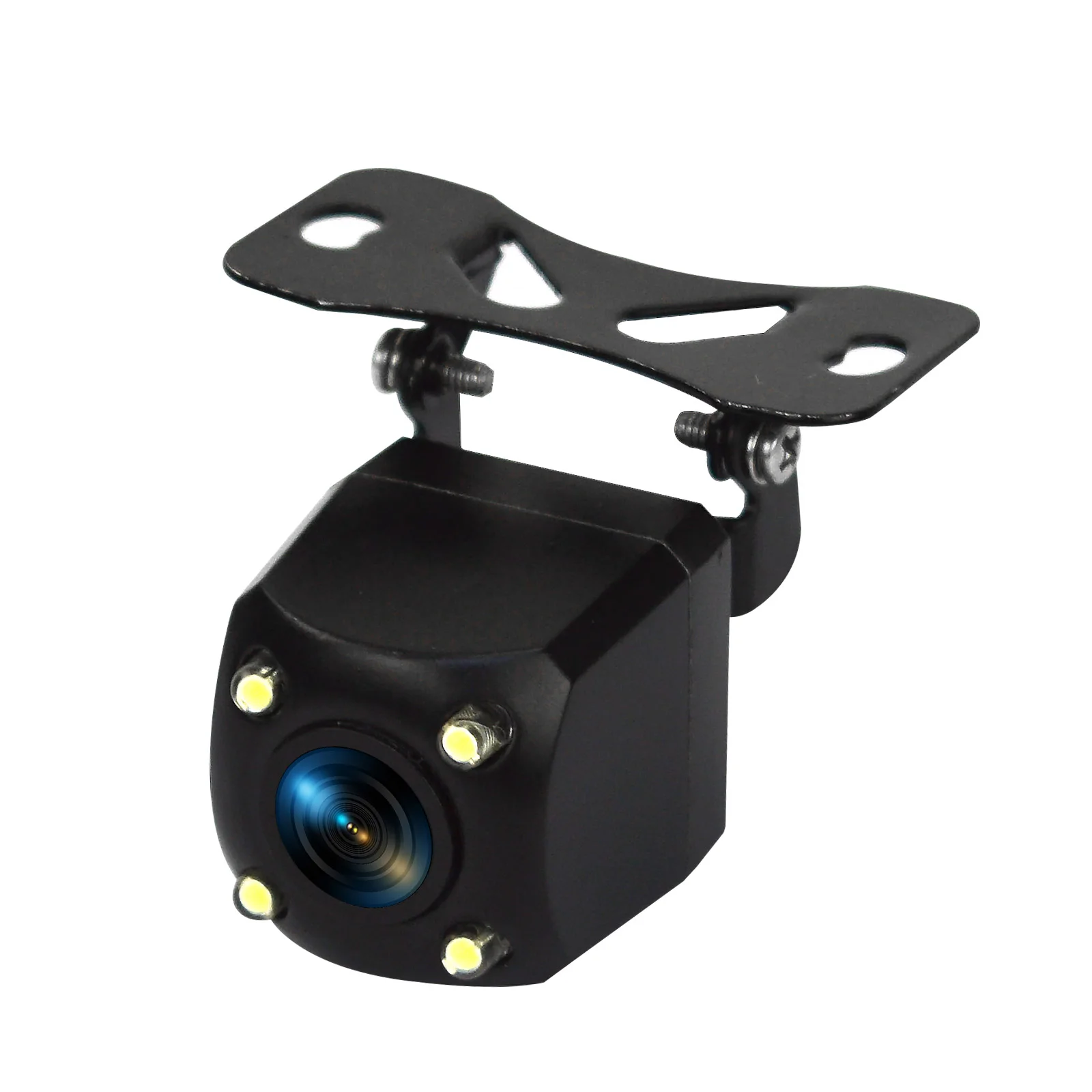

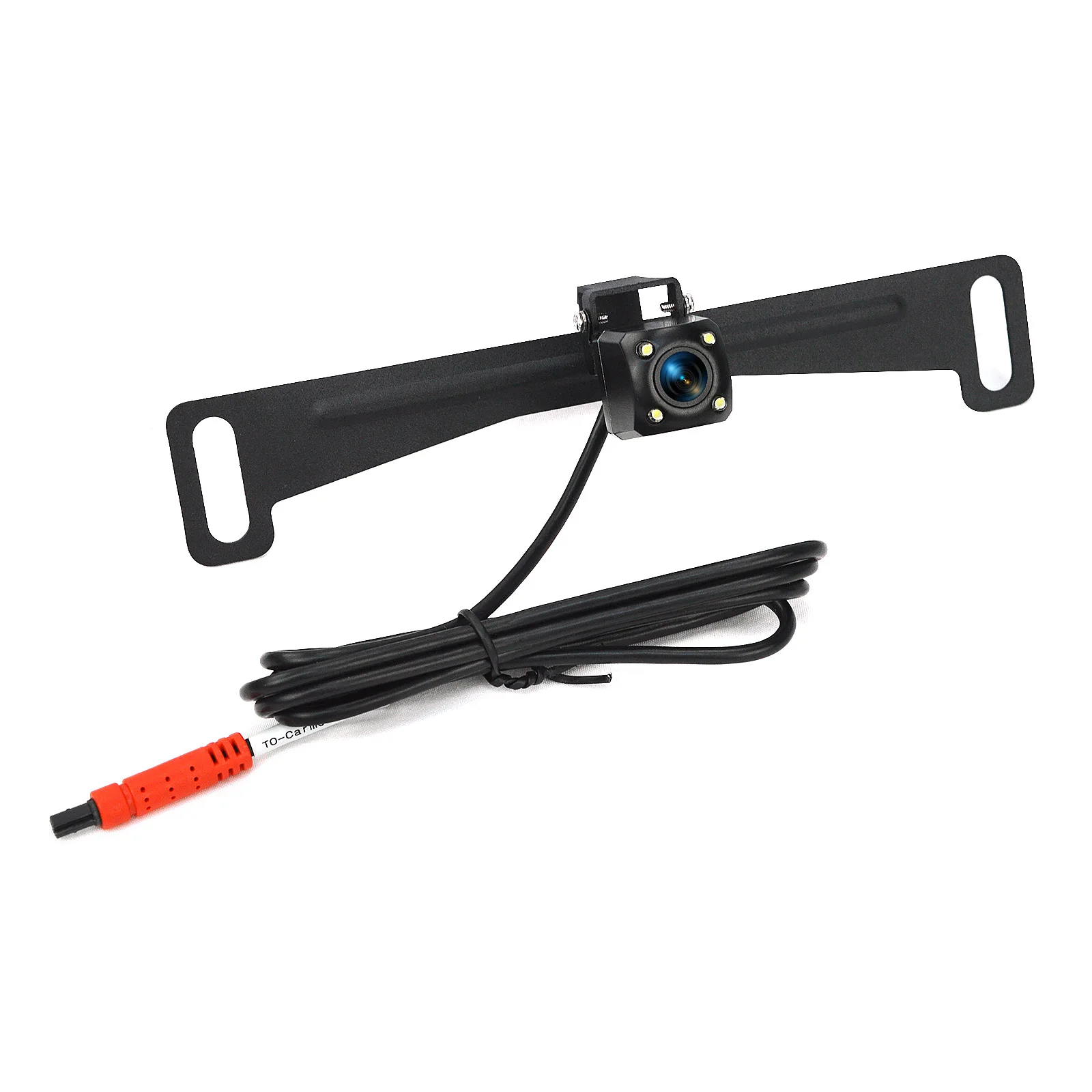

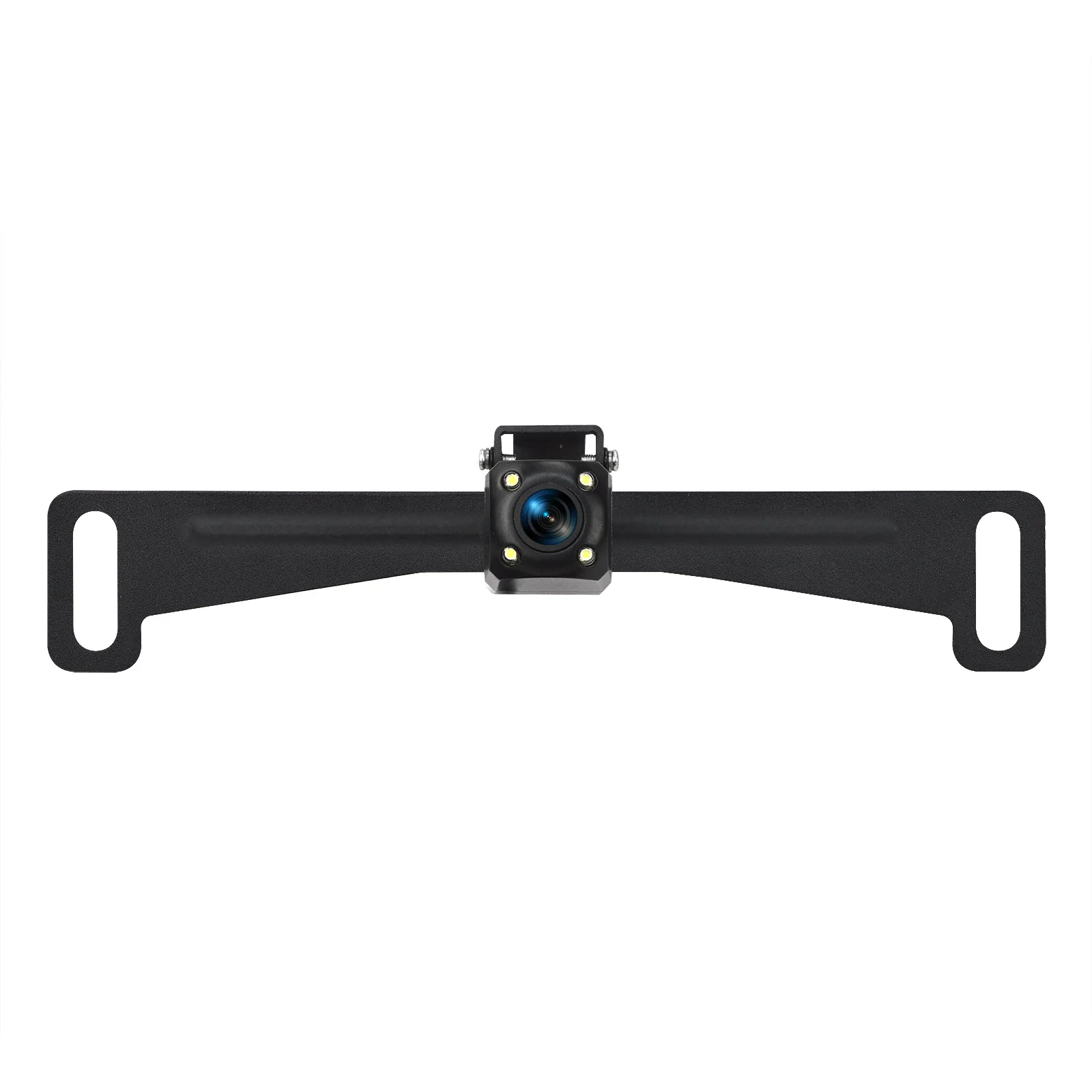

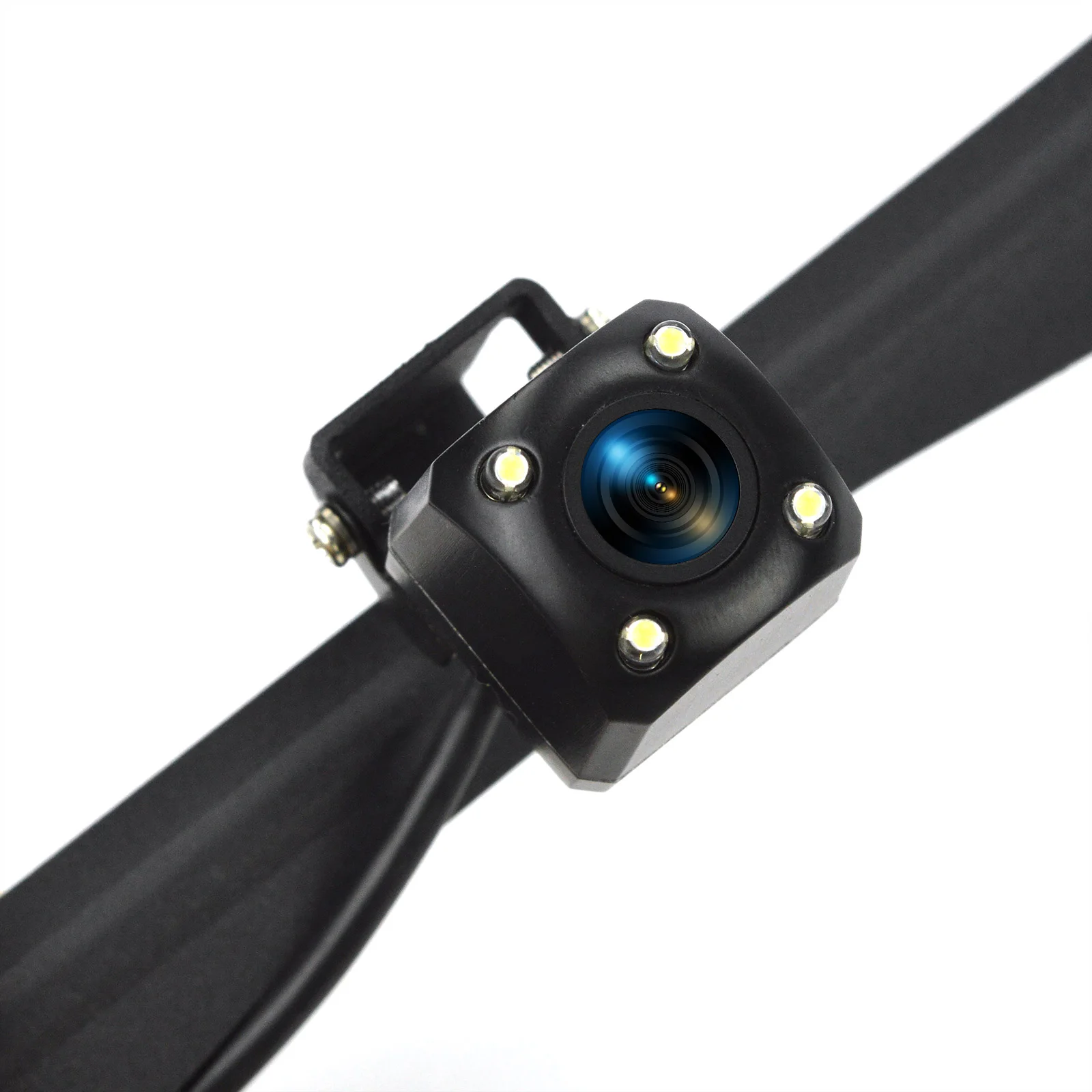

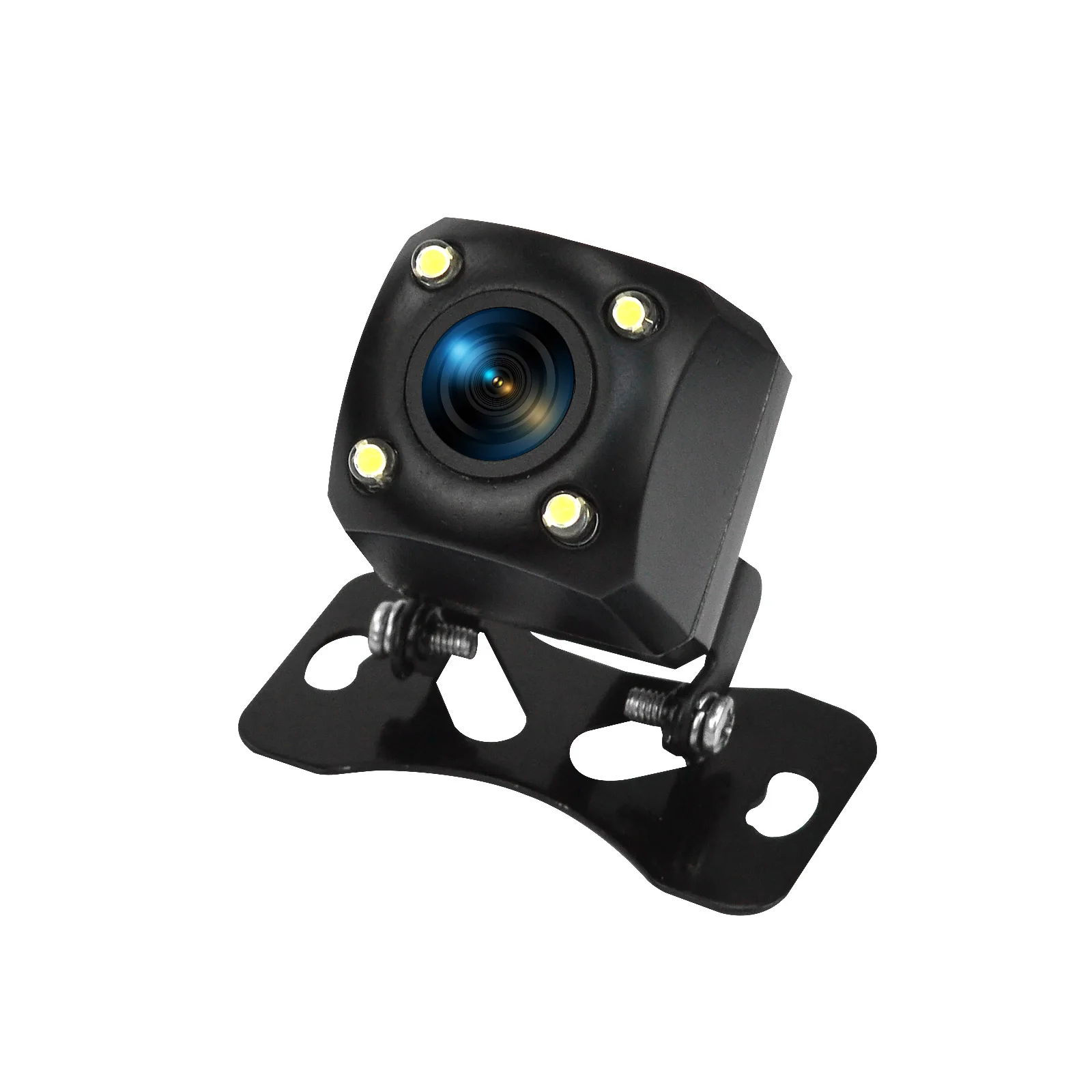

- Camera with a six-glass lens and four white LEDs for low-light visibility.

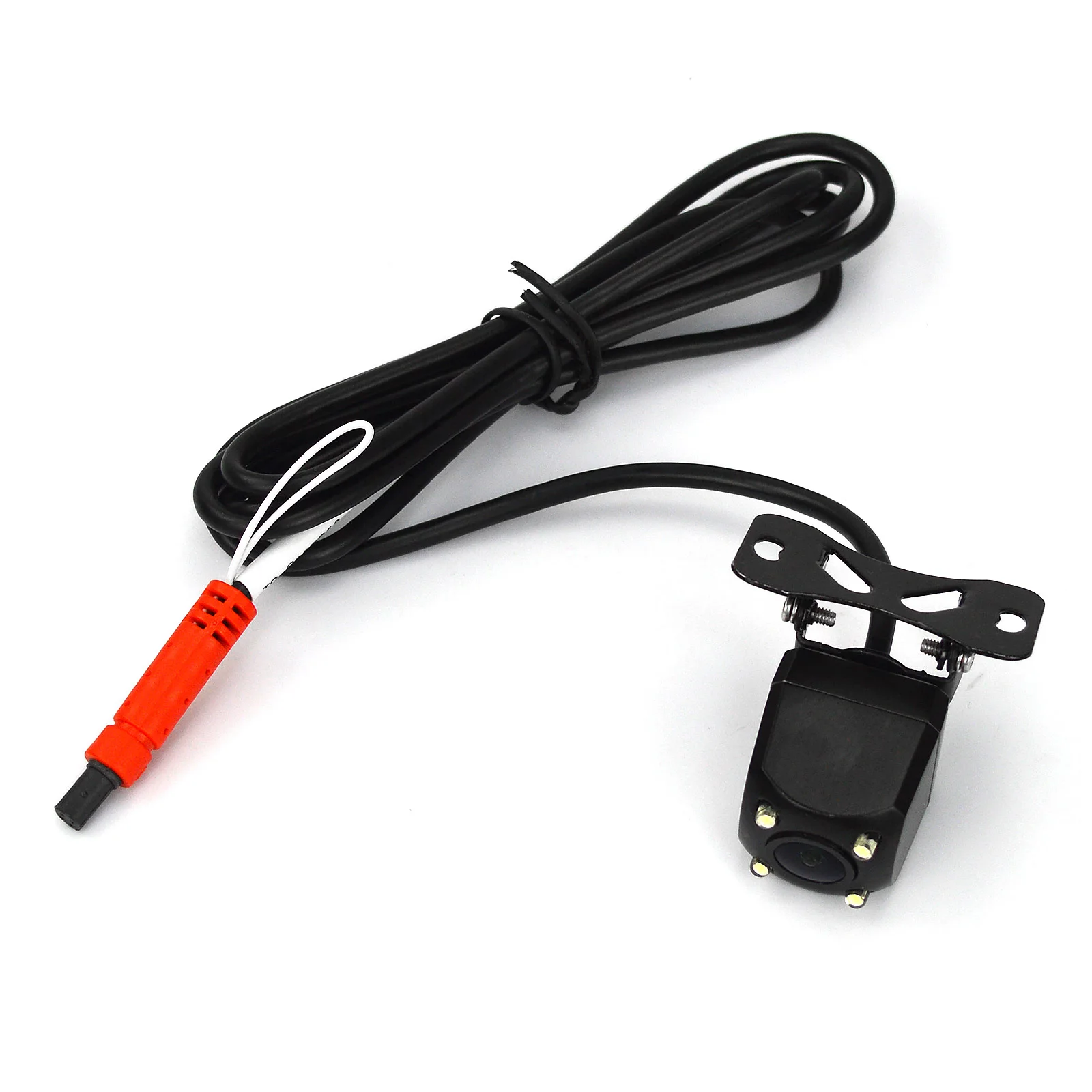

- White-light control through the white loop on the camera power cable.

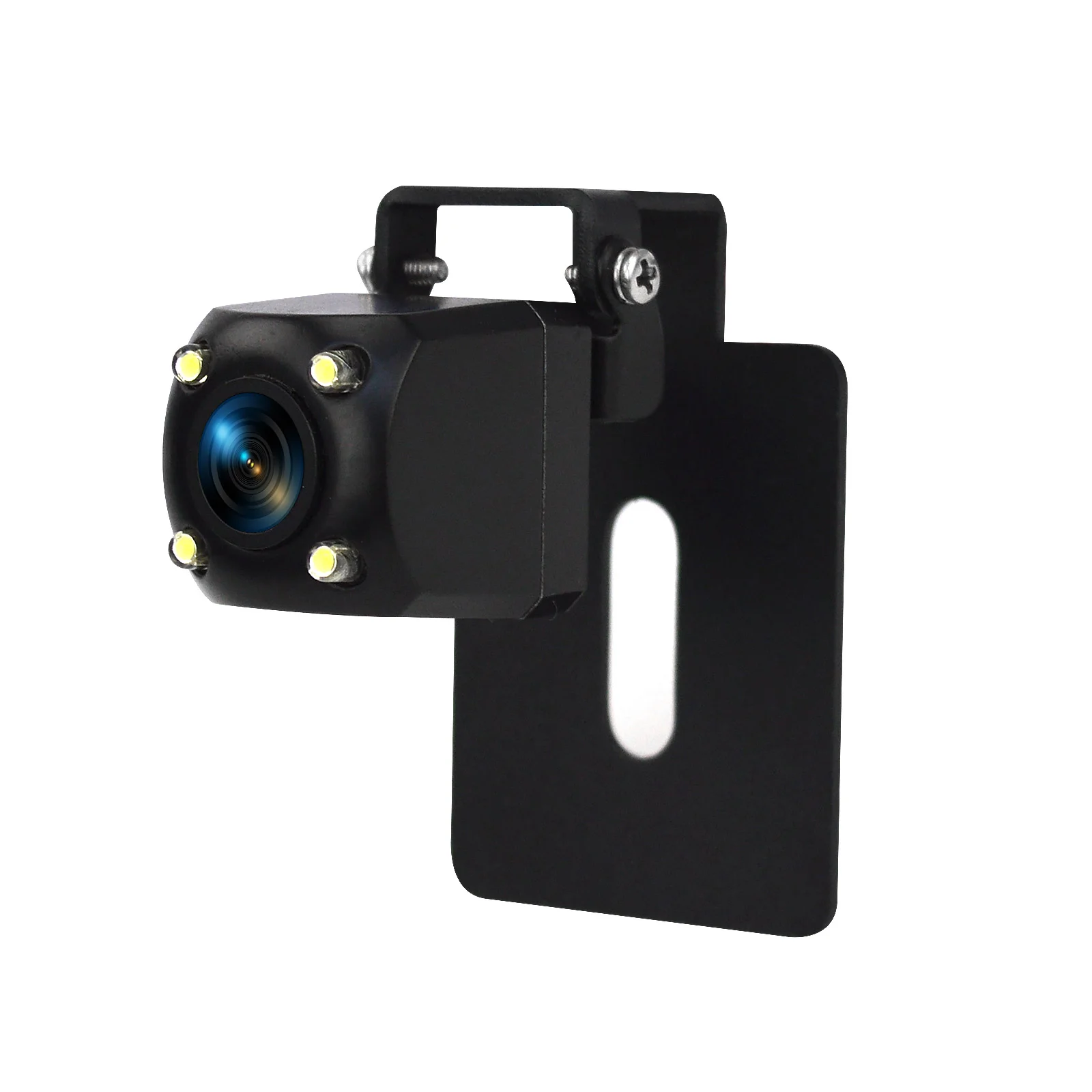

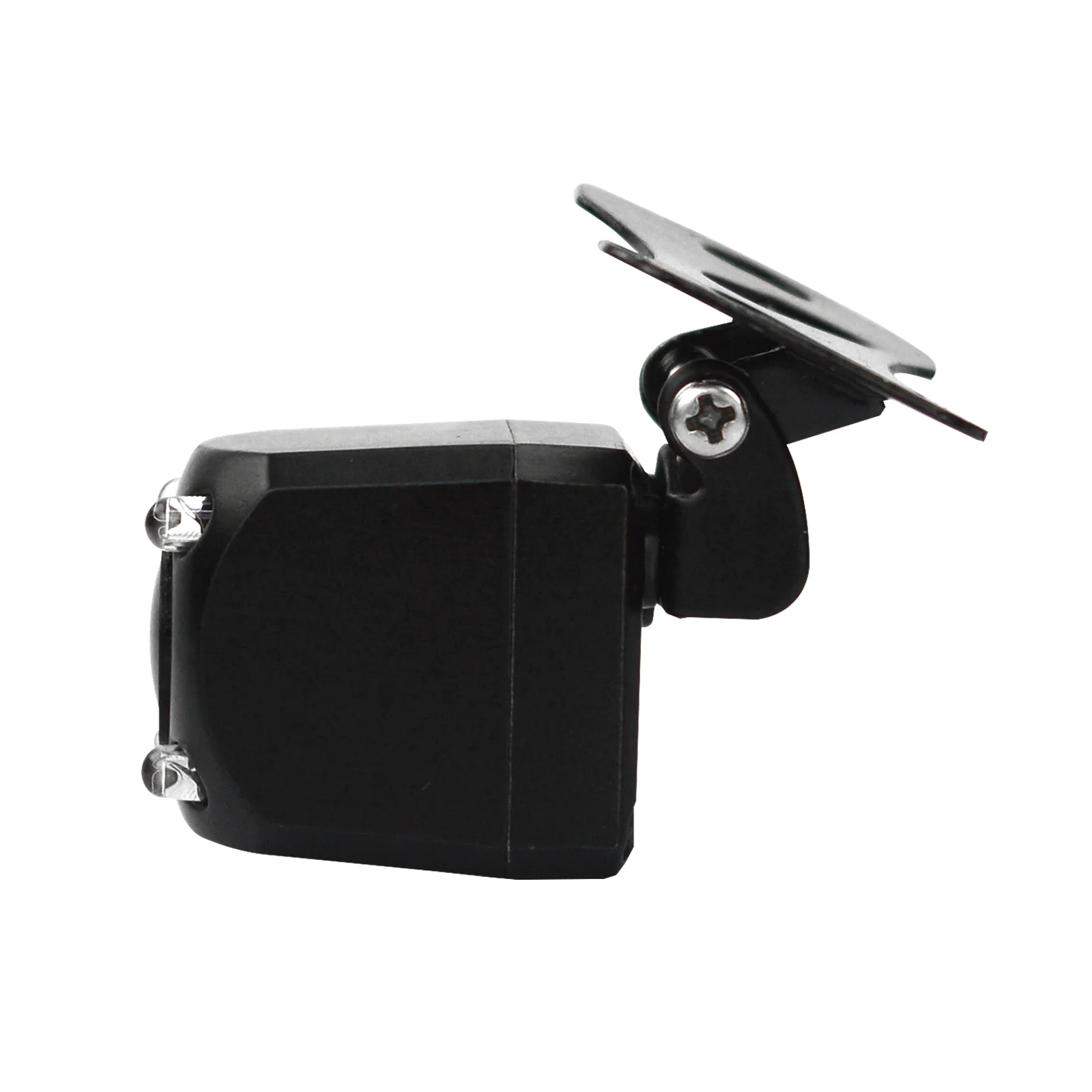

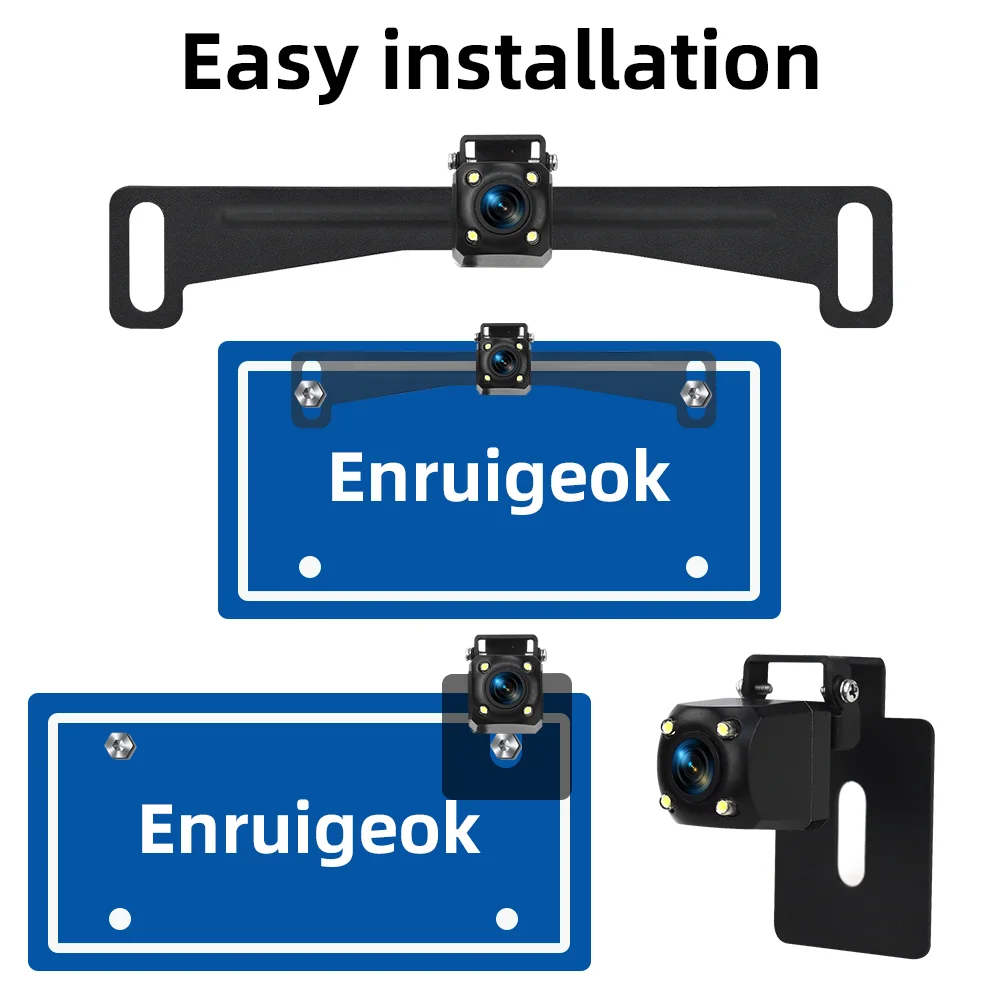

- Three camera styles available.

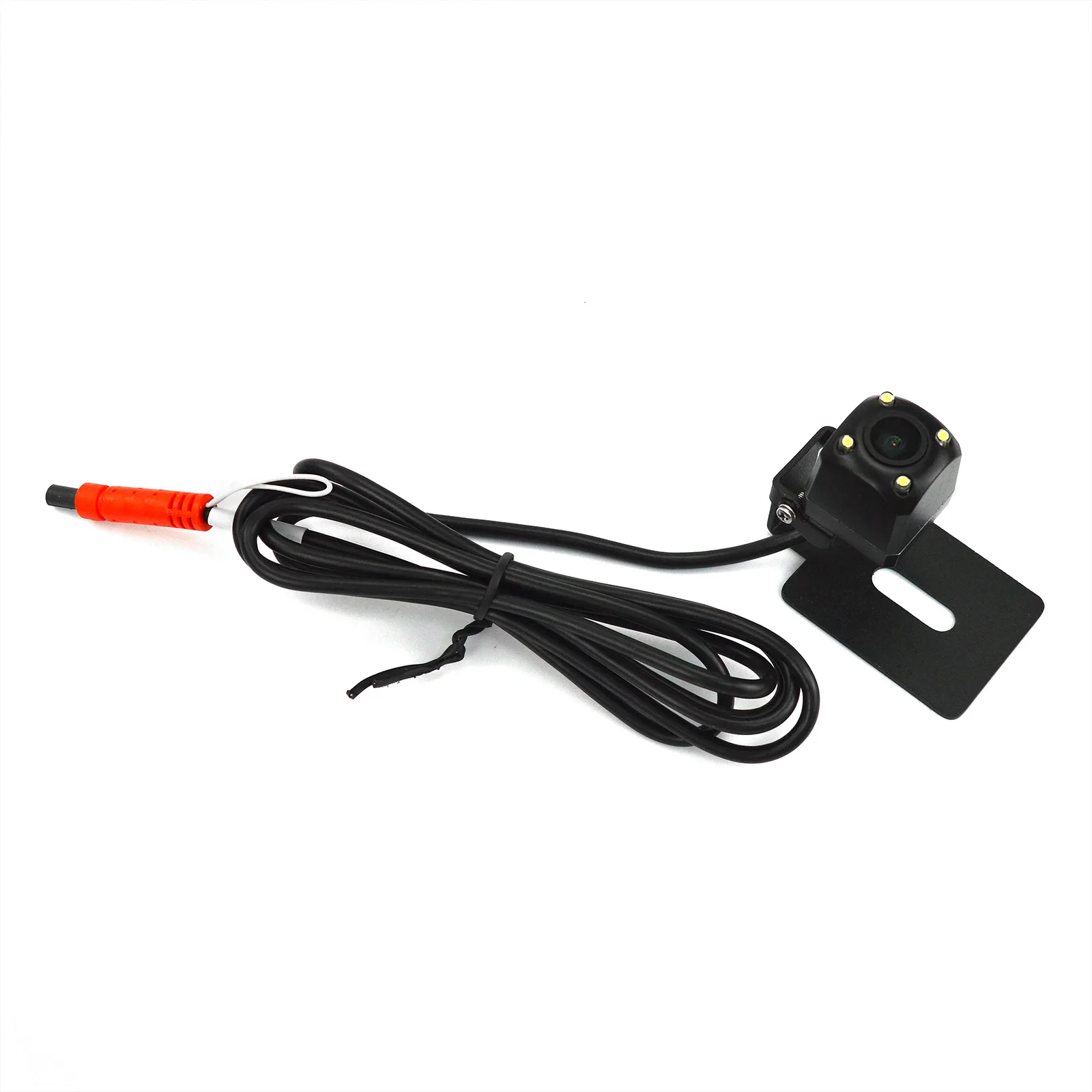

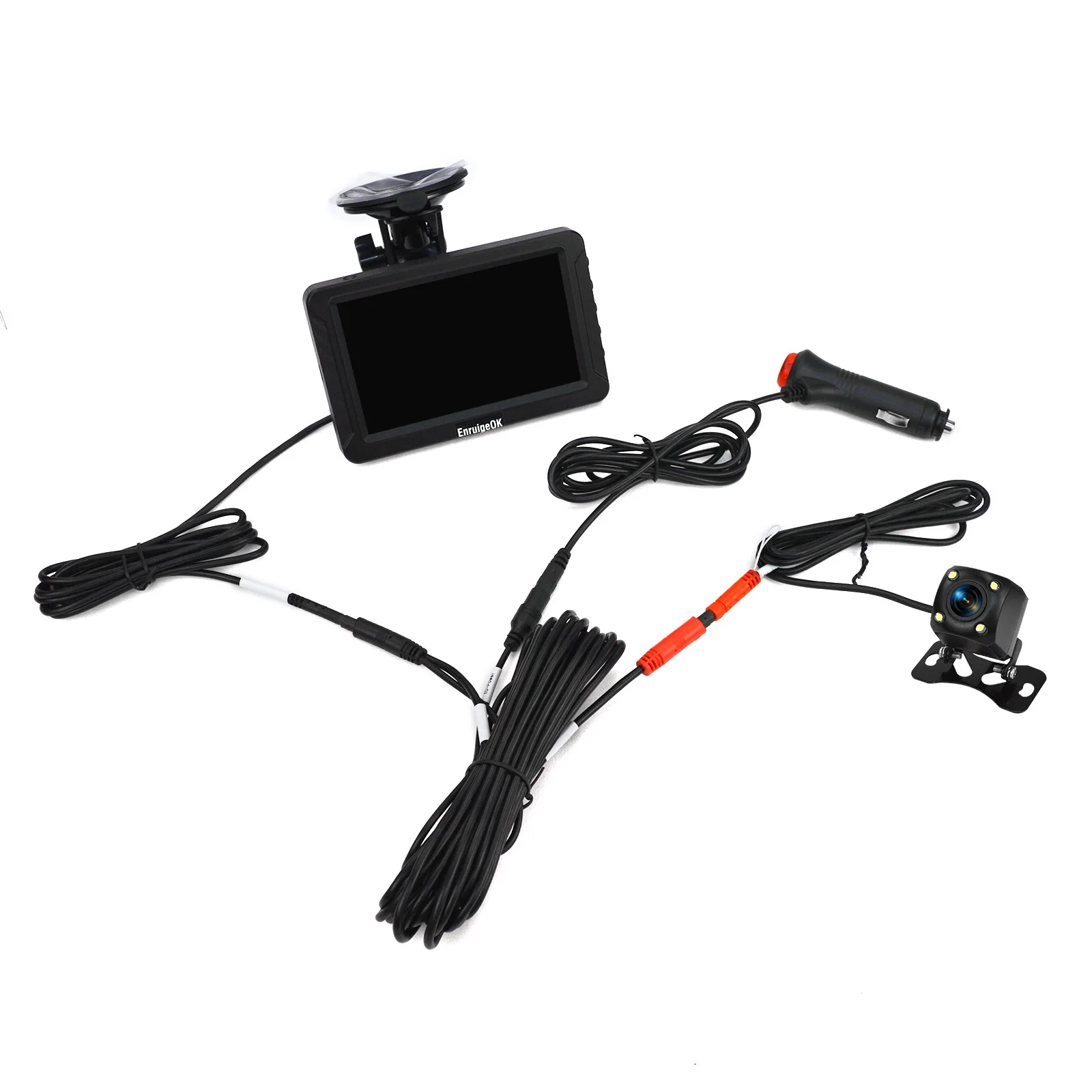

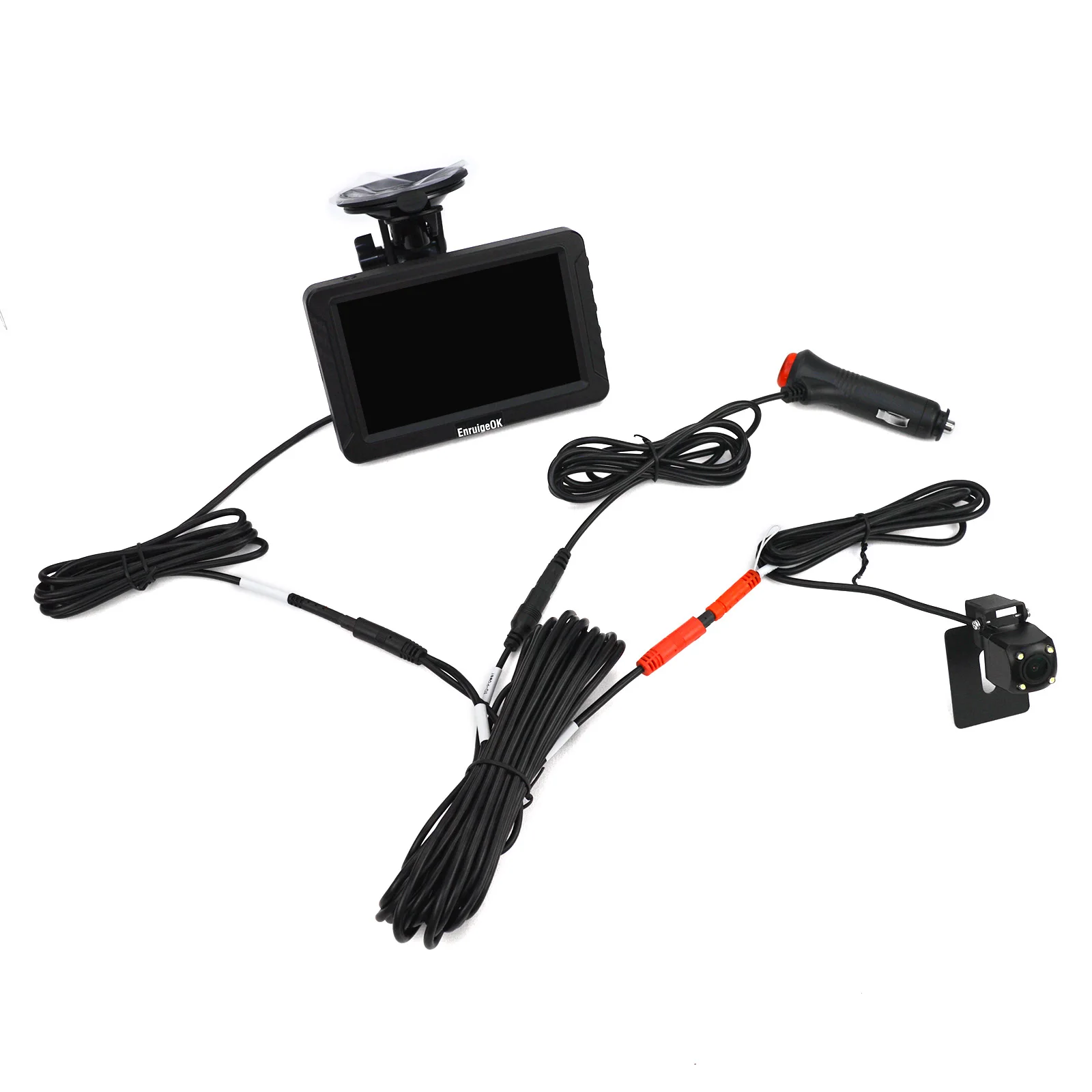

- All-in-one cable design and car charger adapter for installation.
Installation and compatibility
The system uses DC 12V power. The monitor supports automatic PAL/NTSC switching and rear-view priority; it shows a blue screen when there is no signal. The display activates only when a video signal is connected. Confirm the camera signal, mounting position and cable route for your vehicle.

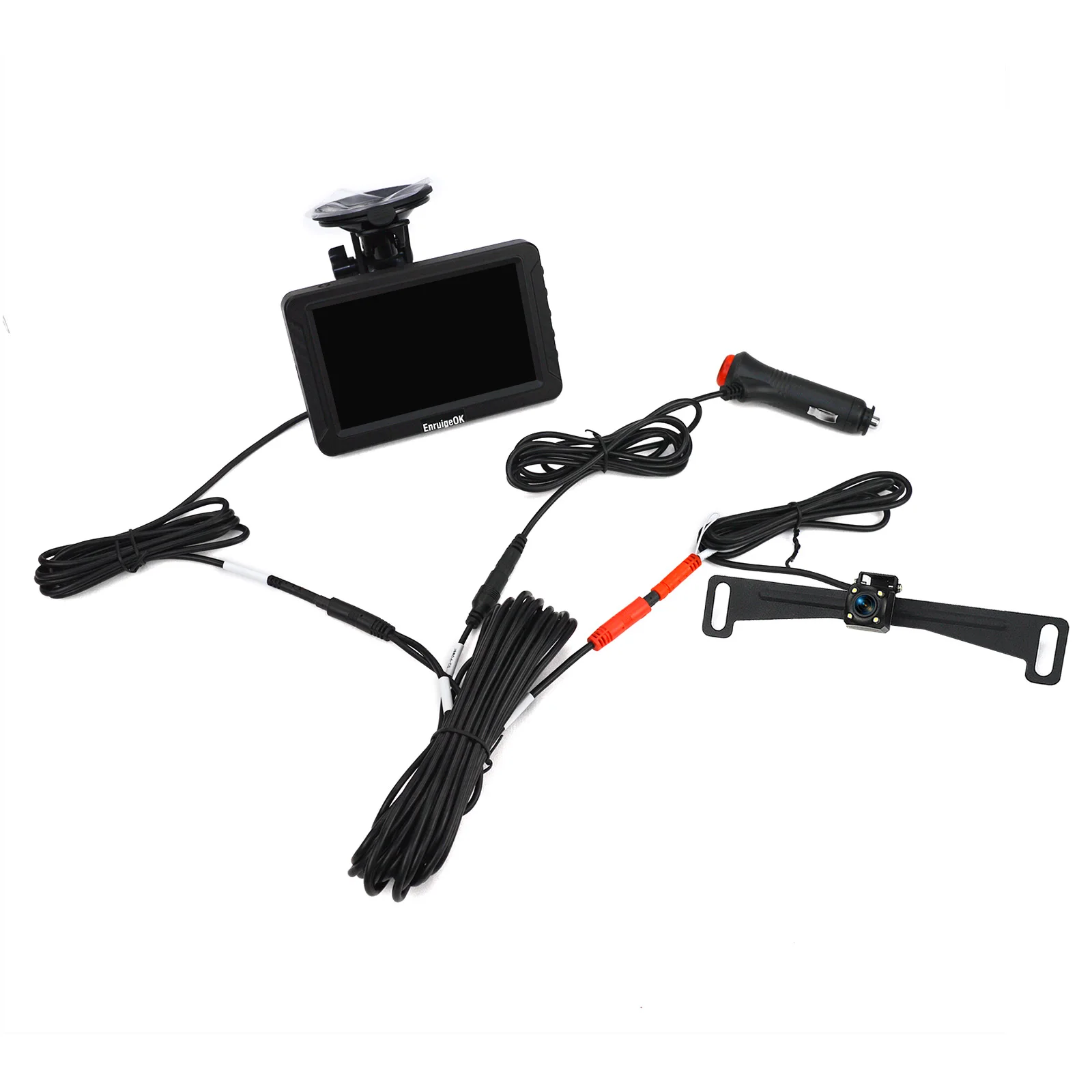

Package contents
- 1 × 5-inch monitor
- 1 × camera
- 3 × video cables
- 1 × monitor power cable

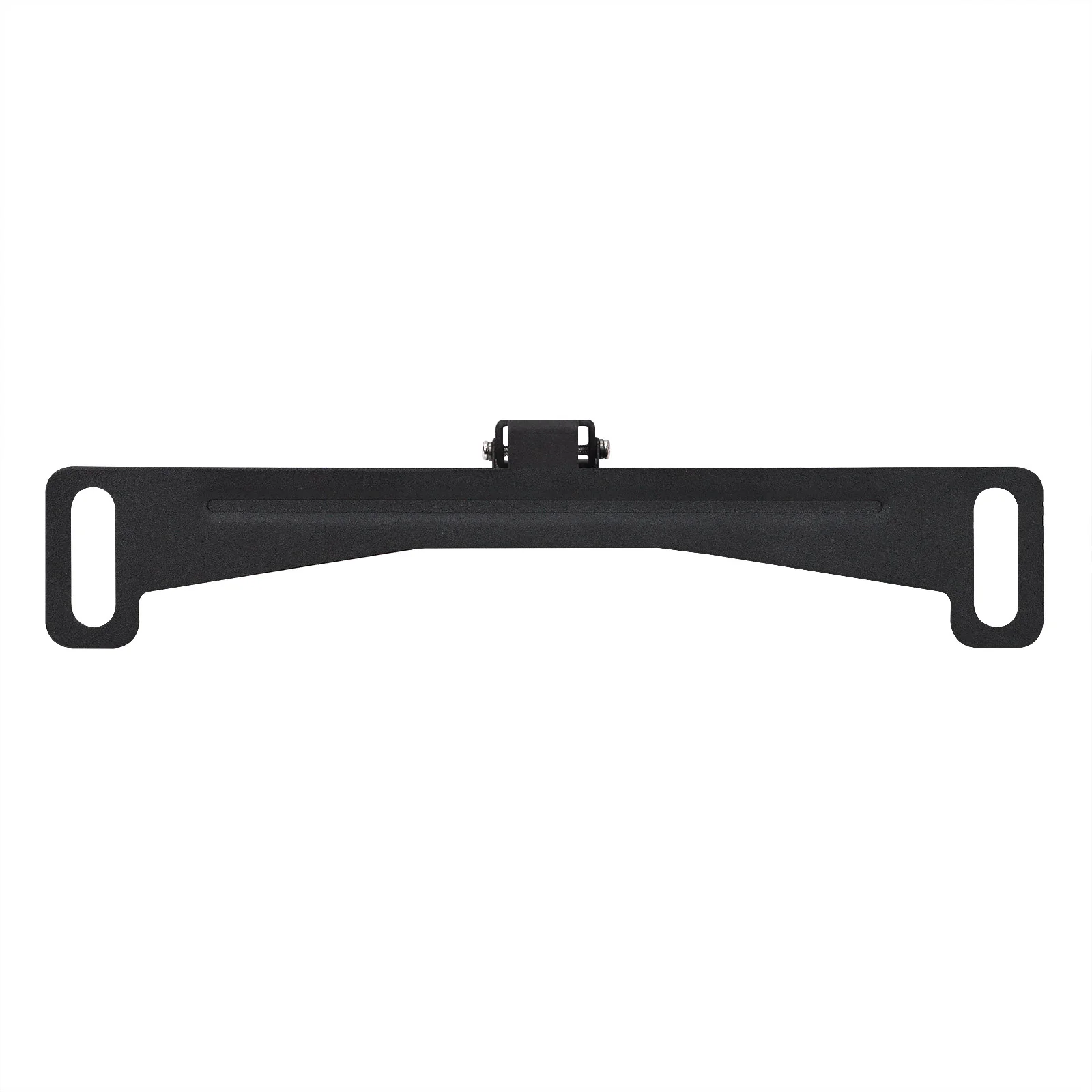

- 3 × brackets
- 1 × installation kit (screws and sticker)
- 1 × user manual
