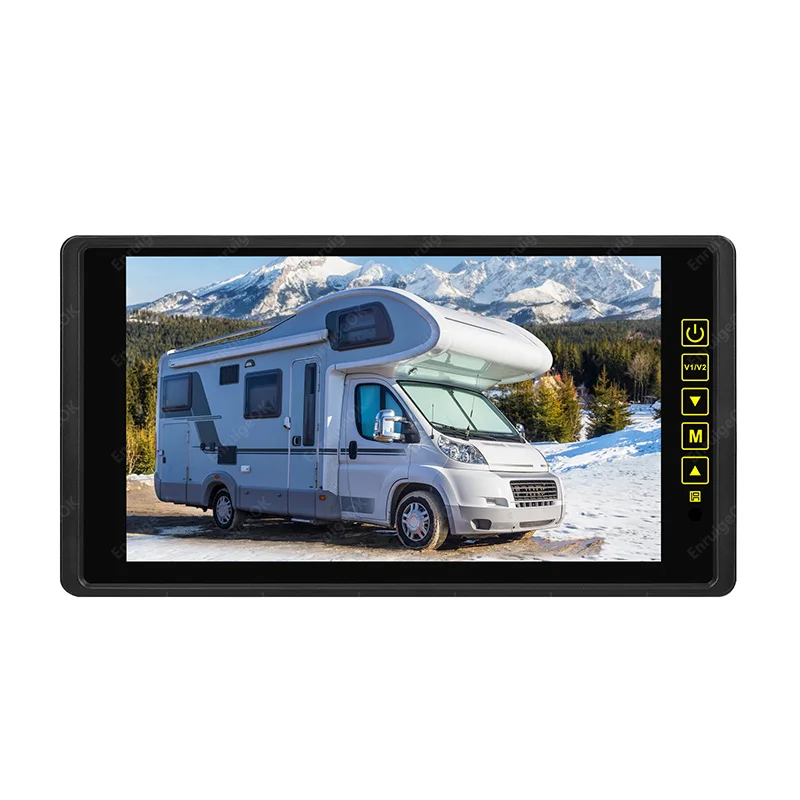

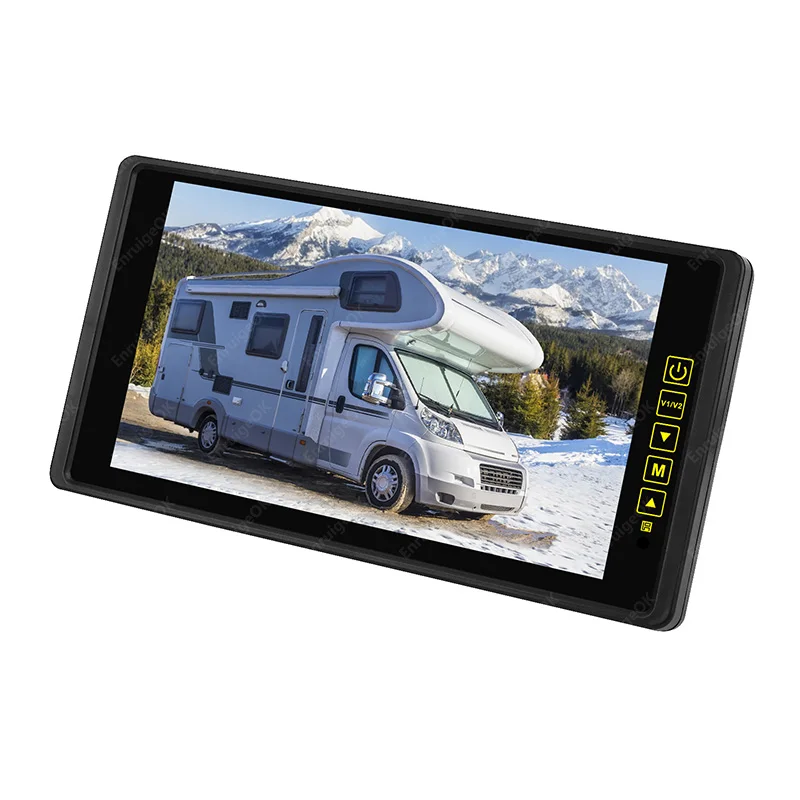

9 inch Split Screen DVR Recorder Car Monitor

Product overview

【Applications】Apply for heavy duty trucks, tractor trailer, trailer, RVs, Caravan and Horsebox, etc. It is complete with one 9 inch monitor which built-in DVR recording, support AHD 1080P Camera Input.

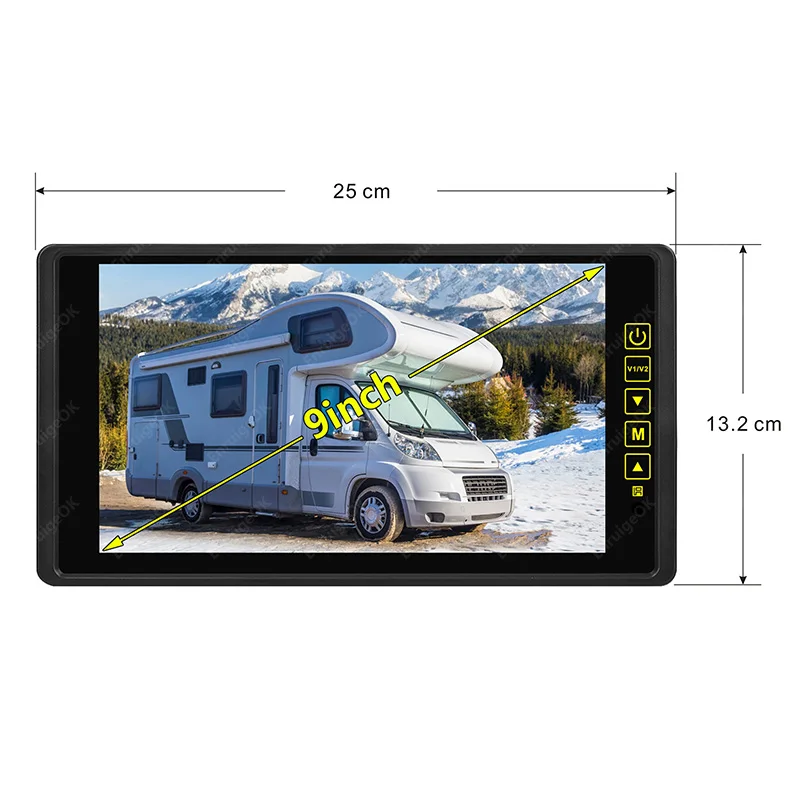

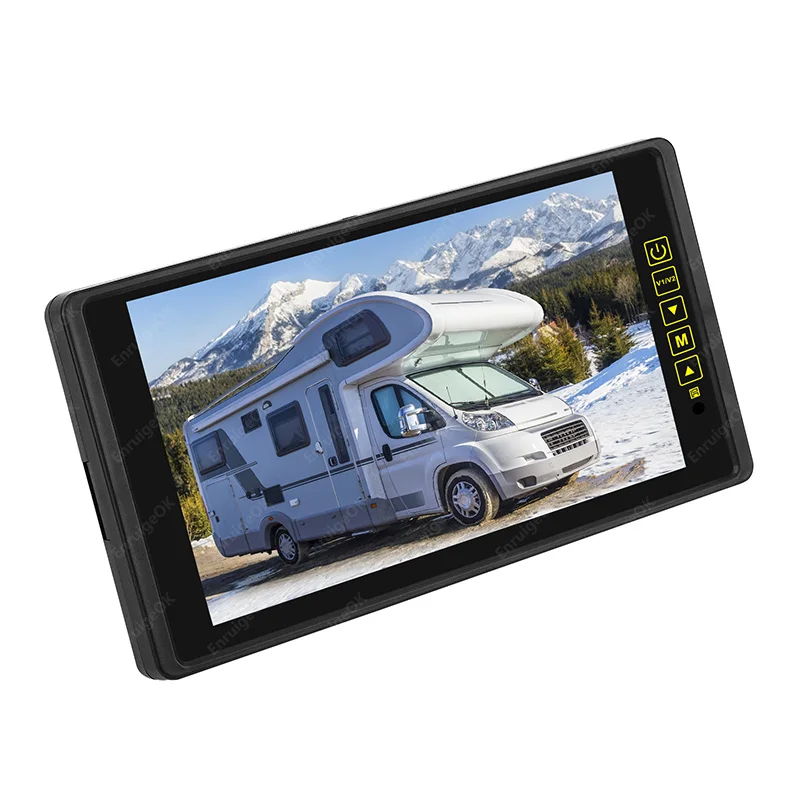

【9″ TFT LCD Digital Monitor】High Definition Digital Color LCD wide screen video monitor, 1024 x 600 pixels. IPS Screen Built-in Split screen, able to show 2 camera views at one time. AV1/AV2 with trigger wire, once trigger wire activated, image automatically switchover to corresponding camera.
【Monitor Built-in DVR Video Recording 】 High-definition Video Record Function. The record files been stored in SD card, maximum 128G, support date & time setting of the video, support loop recording: cyclic recording ensures that your camera doesn’t stop recording when the storage is full.

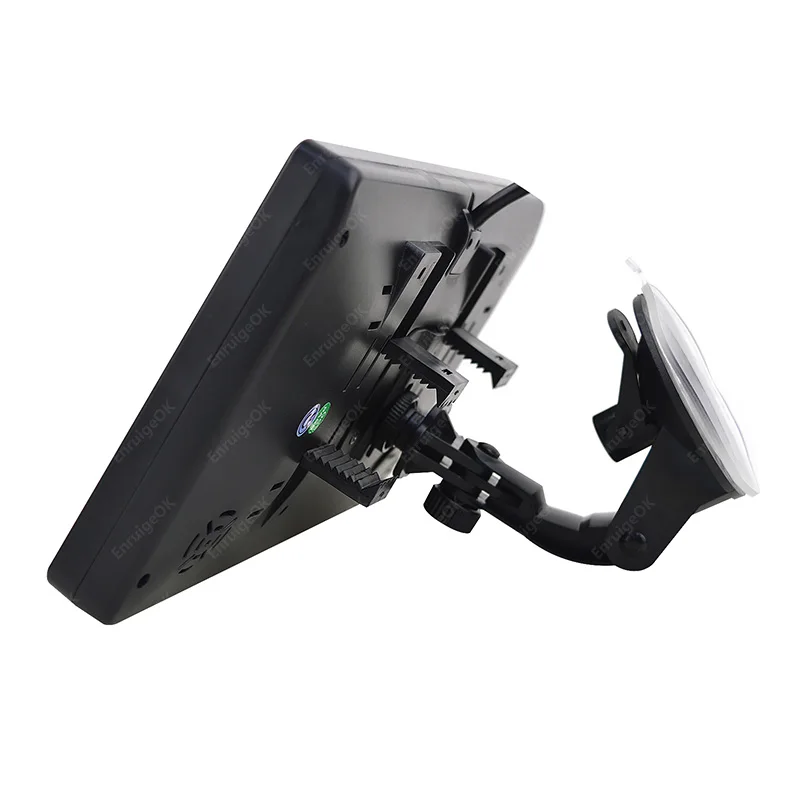

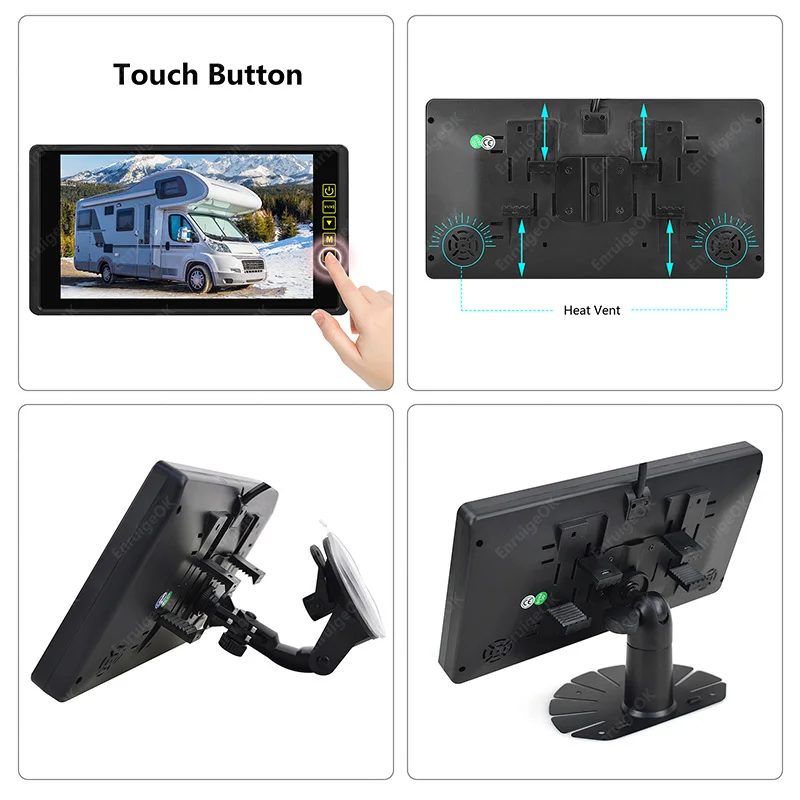

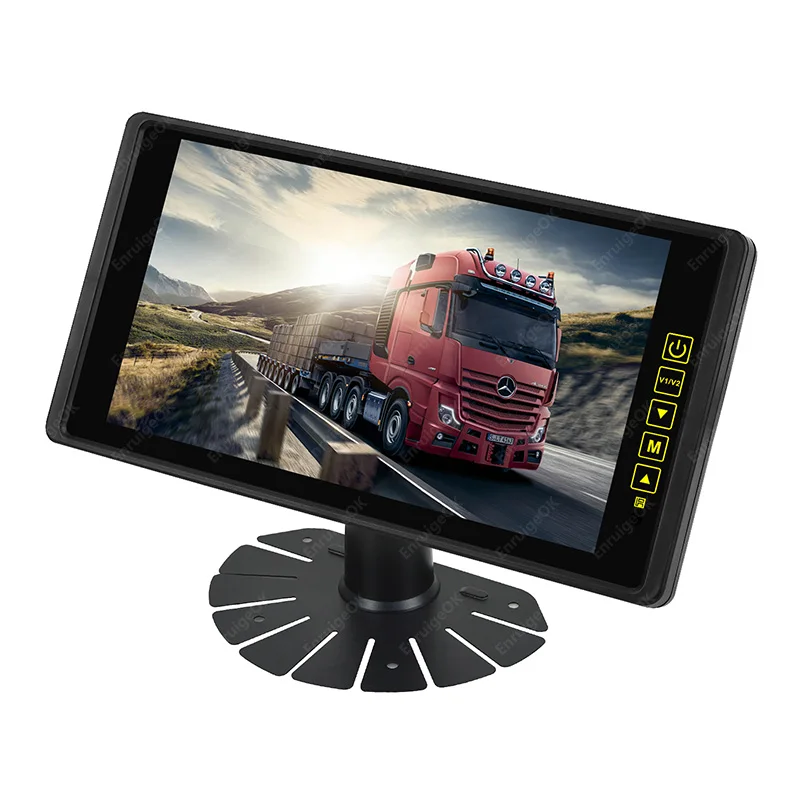

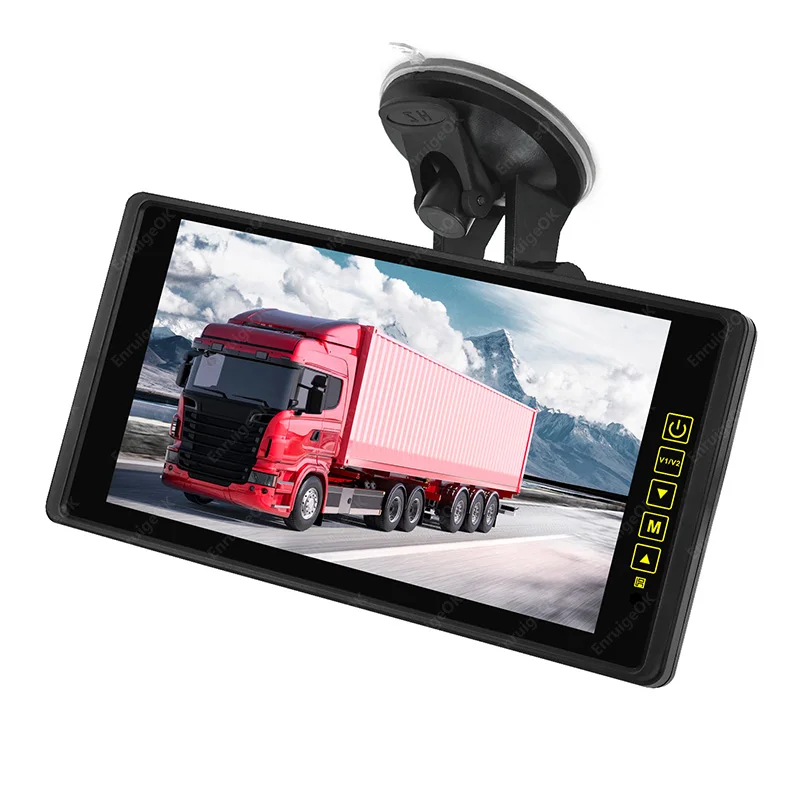

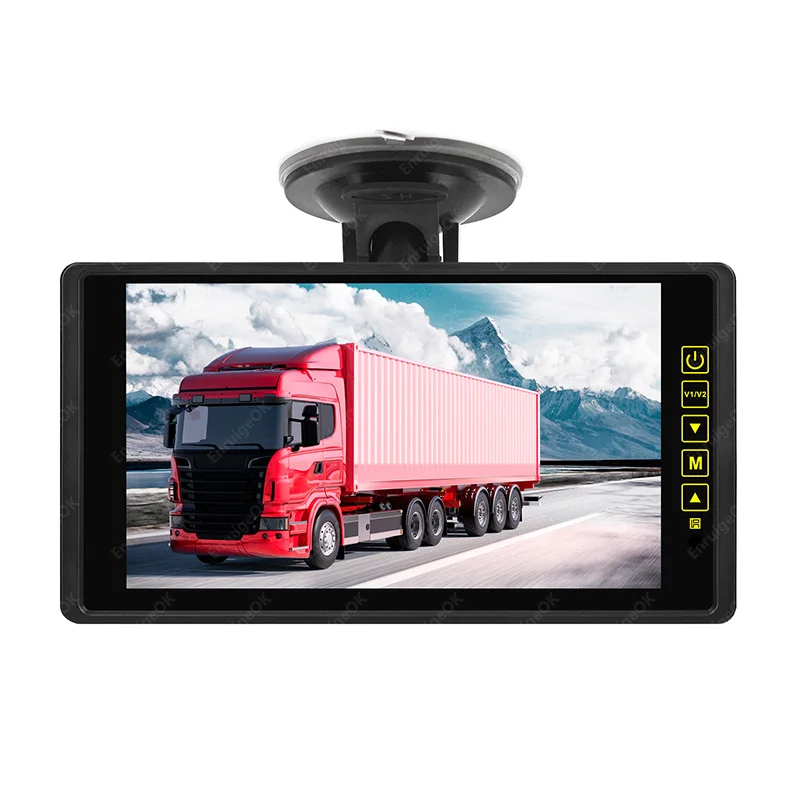

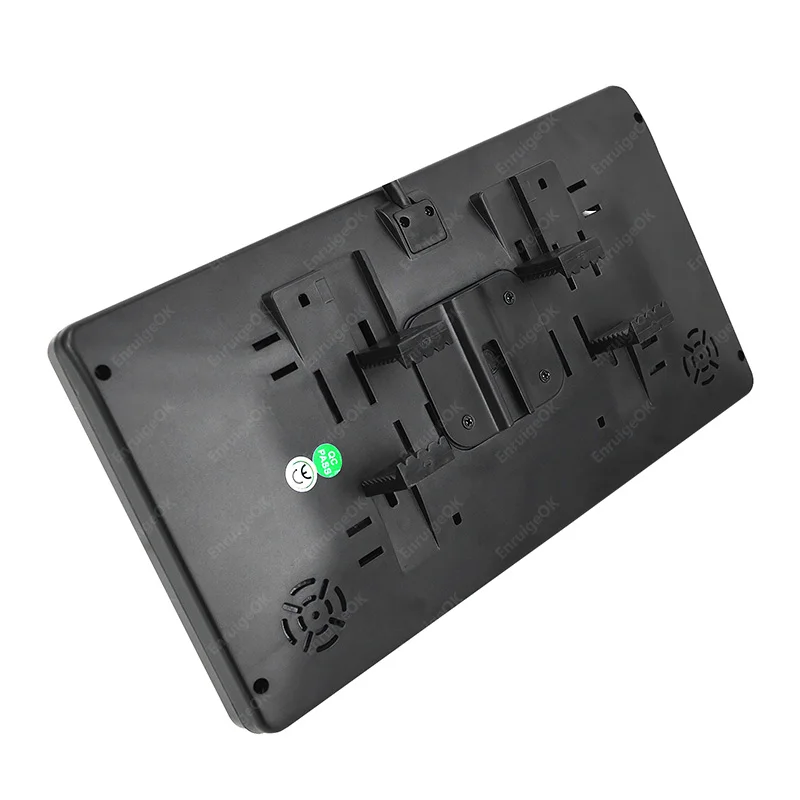

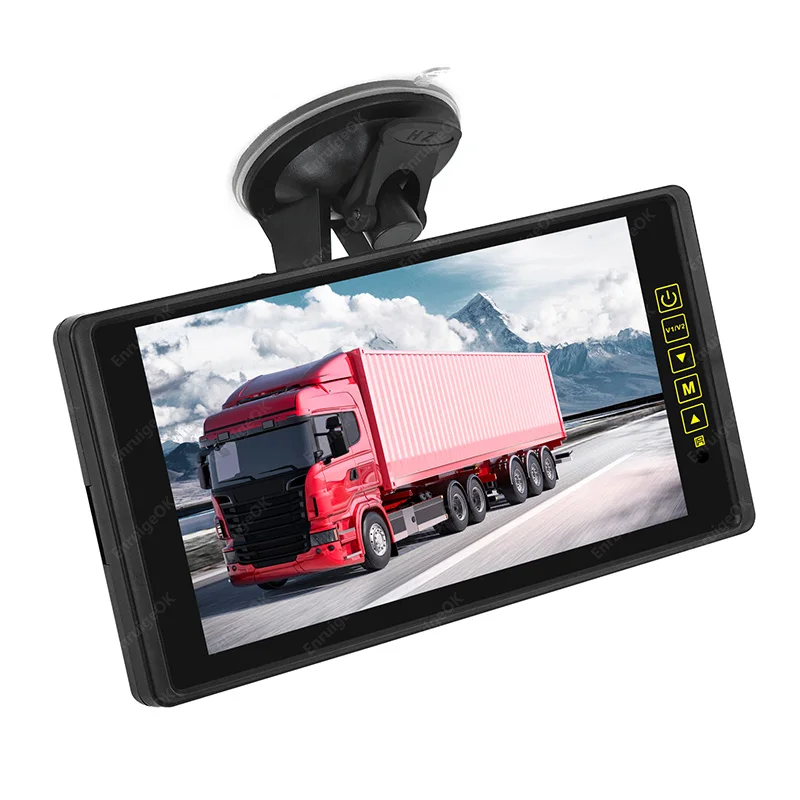

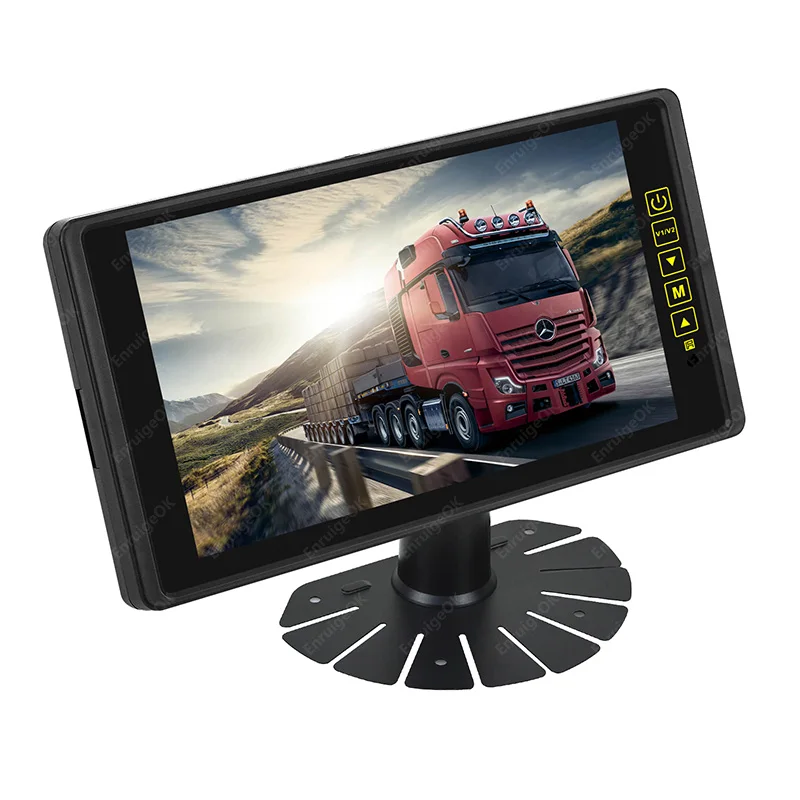

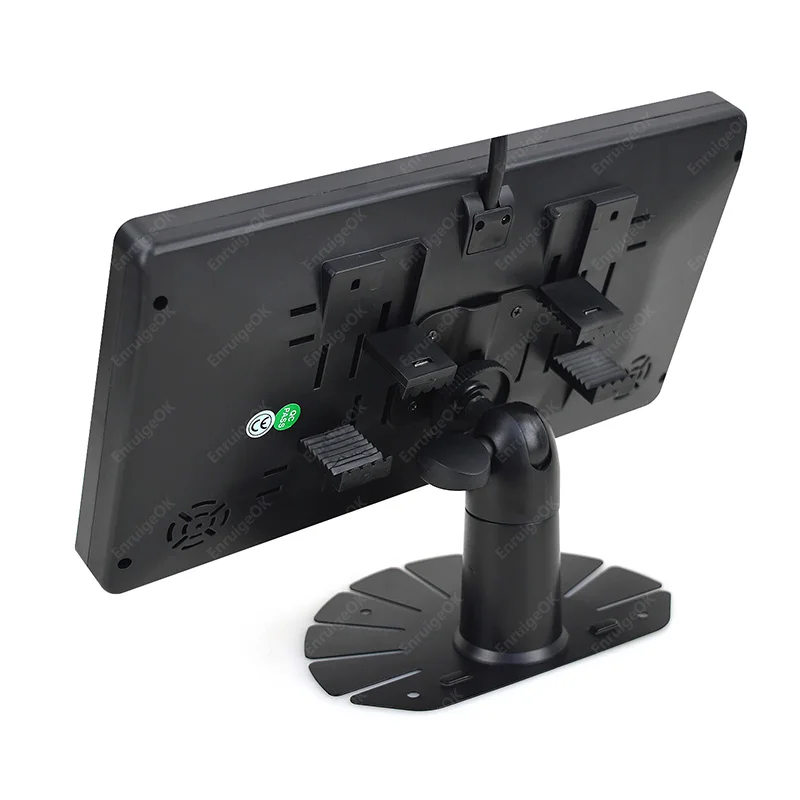

【Multiple installation modes 】 Monitor have three type installation methods. Snap-on Installation(Clips On To Rear View Mirror), Desktop mounting and windscreen Suction Cup mounting.
【Wide voltage input】9V-35V DC power input range to fit most of the medium to large vehicles in production.

Technical details and package contents

Aspect Ratio: 16: 9/4: 3
Resolution: 1024*RGB.*600
System PAL/NTSC Auto switching
Contrast: 350:1
Brightness: 500cd/m2
Video input: 2CH AHD signal Video Input, supports 2-split image

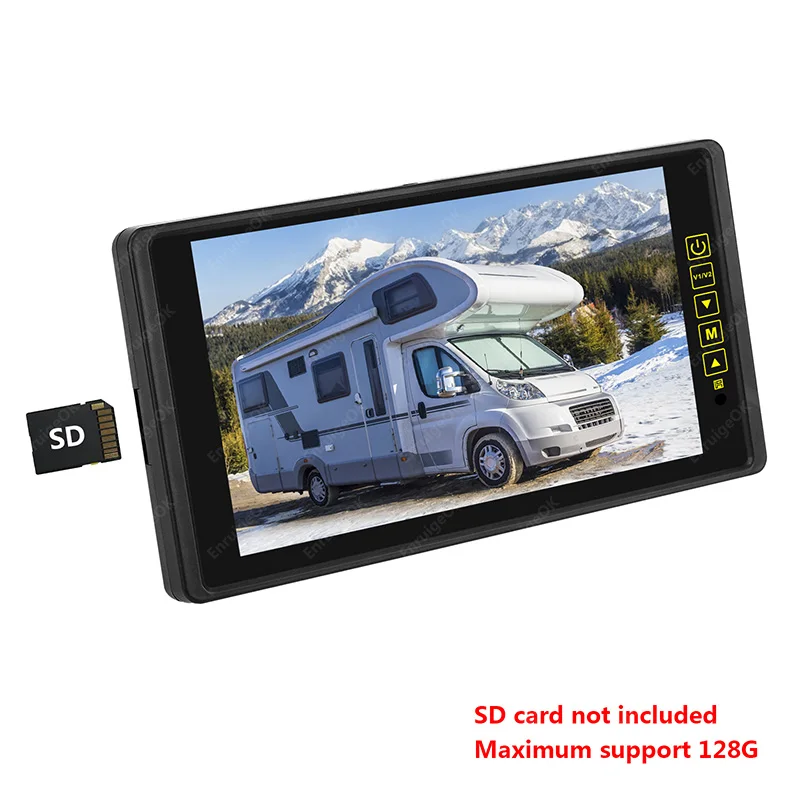

DVR Video Recording: SD card, maximum 128G(SD card not included)
Working Temperature: -20℃- +60℃
Working Humidity: 85%RH
Power Supply: DC 9V-35V
Power Consumption: <9W
Operation mode: Touch key button operation and remote control
Image Display: Multiple image display switchable
Language: English/Simplified Chinese/Traditional Chinese/French/Russian/Germany, etc.

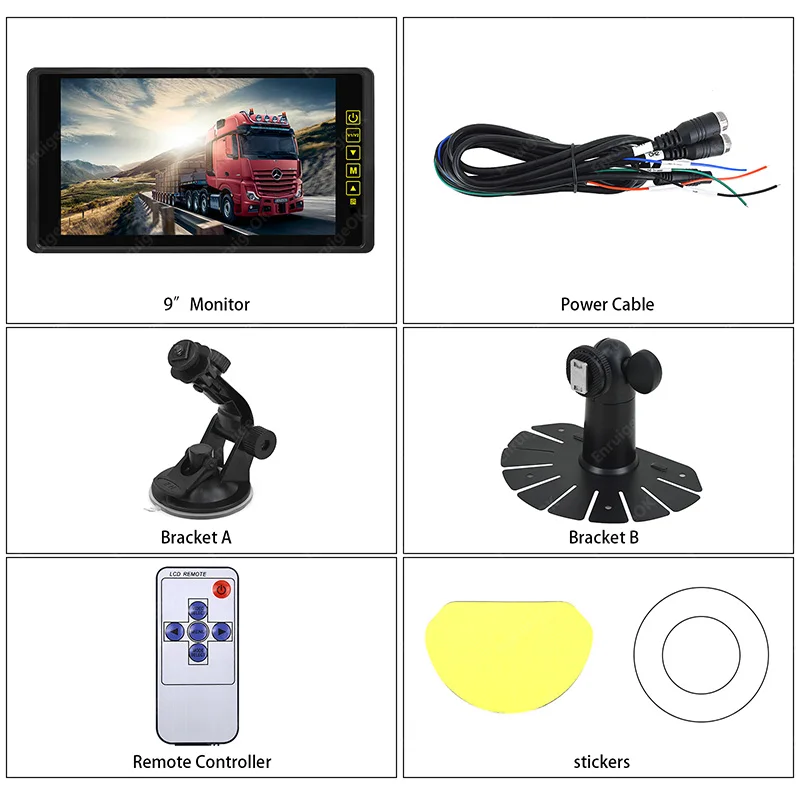

Package Included:
1 x 9″ rear view mirror monitor
1 x Power Video Cable
1 x Suction Cup bracket
1 x Desktop bracket
1 x Remote Controller (Battery Not Included)
1 x User Manual
1 x Stickers
