ERG-S02CVBS/AHD
Car HD License Plate Rear View Backup Camera with Wide View Angle 6 LED Night Vision Waterproof Front & Back up Camera Guide Line On/Off

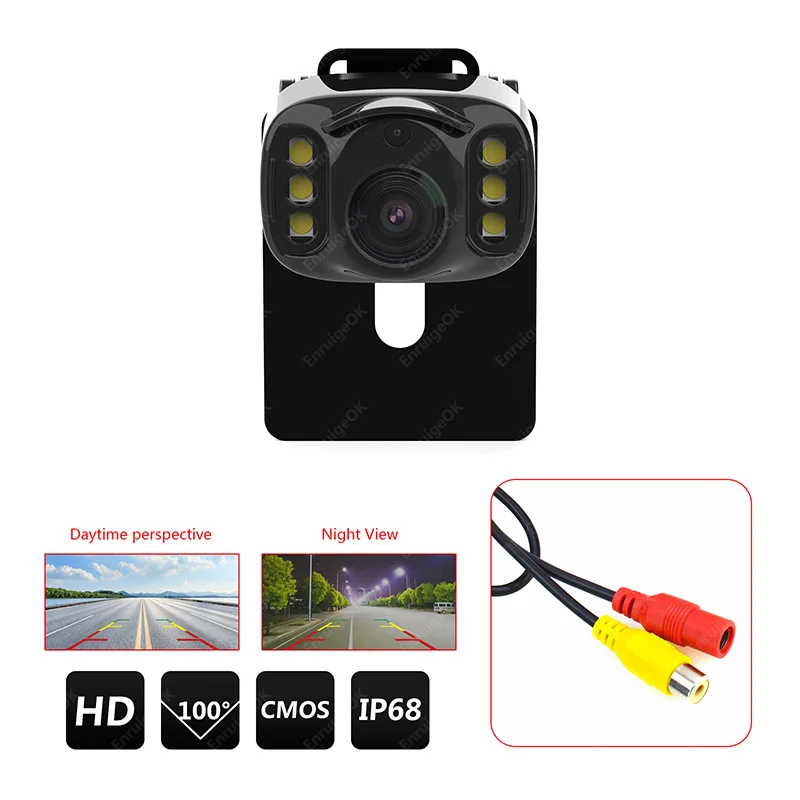

- Image sensor
- 1/4″ CMOS
- Resolution
- 480TV Lines
- waterproof rating
- IP68
- Viewing angle
- 100 °
Product highlights
-This Rear View Camera can give you a full sight of the back of your car when you are driving. -It is compatible with mirror monitor or other monitors that you already have installed in car. -To protect your car from collision with invisible obstacle, choose a high definition and good quality camera as ours.
Specifications
General
- Image sensor
- 1/4″ CMOS
- Resolution
- 480TV Lines
- waterproof rating
- IP68
- Viewing angle
- 100 °
- TV system
- NTSC/PAL
- Power supply
- DC12V
Show 12 more specifications
- Effective pixel
- 733H*493V
- Horizontal sync frequency
- 15.625KHZ
- Vertical sync frequency
- NTSC 60HZ
- Scanning system
- 2:1 interface
- Sync system
- Internal
- ACG
- Auto
- BLC
- Auto
- S/N Ratio
- More than 48dB
- Current consumption
- no more than 150mA
- Minimum illumination
- 0.1 – 0.5Lux / F = 1.2
- Power
- 5W
- Operating temperature
- -20°~70°C
Full product details
Product overview
ERG-S02CVBS/AHD
Features:
-This Rear View Camera can give you a full sight of the back of your car when you are driving.
-It is compatible with mirror monitor or other monitors that you already have installed in car.
-To protect your car from collision with invisible obstacle, choose a high definition and good quality camera as ours.
Product details
Camera Specifications:
– Image sensor: 1/4″ CMOS
– TV system: NTSC/PAL
– waterproof rating: IP68
– Viewing angle: 100 °
– Effective pixel: 733H*493V
– Horizontal sync frequency: 15.625KHZ
– Vertical sync frequency: NTSC 60HZ
– Scanning system: 2:1 interface
– Sync system: Internal
– ACG: Auto
– BLC: Auto
– Resolution: 480TV Lines
– S/N Ratio: More than 48dB
– Current consumption: no more than 150mA
– Minimum illumination: 0.1 – 0.5Lux / F = 1.2
– Power supply: DC12V
– Power: 5W
– Operating temperature：-20°~70°C

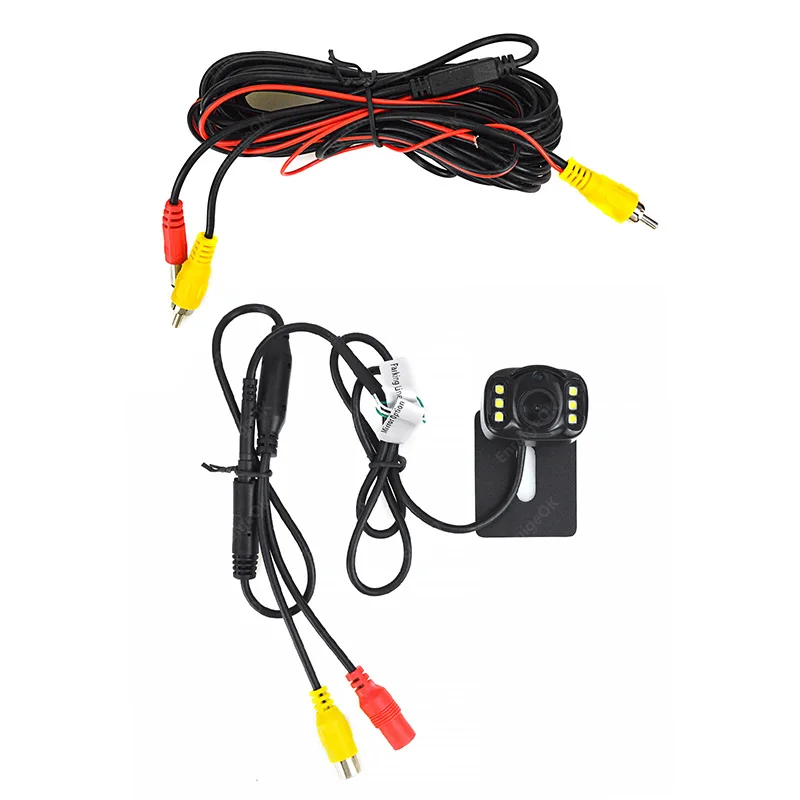

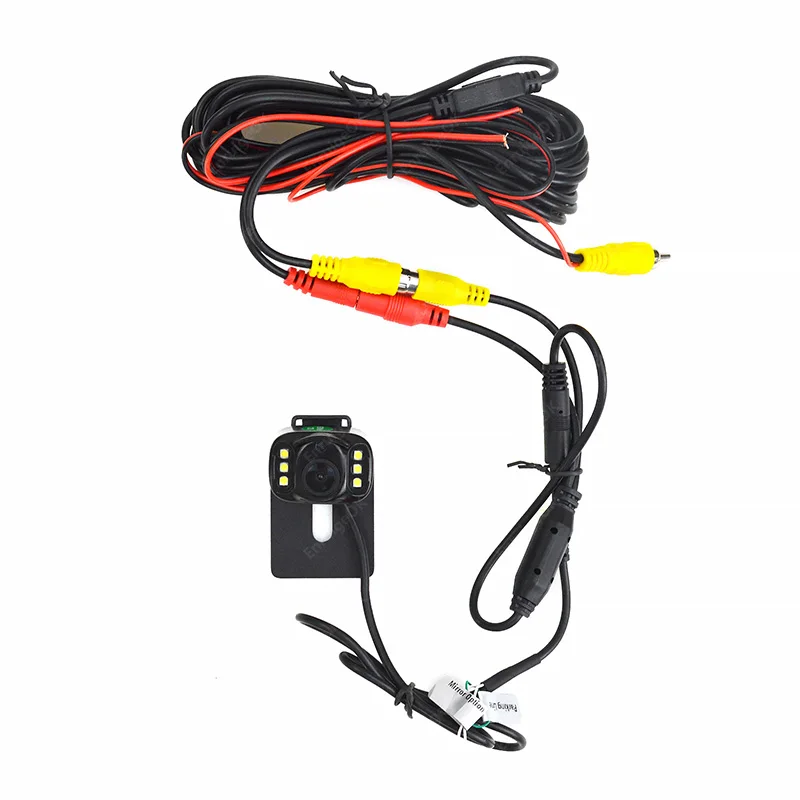

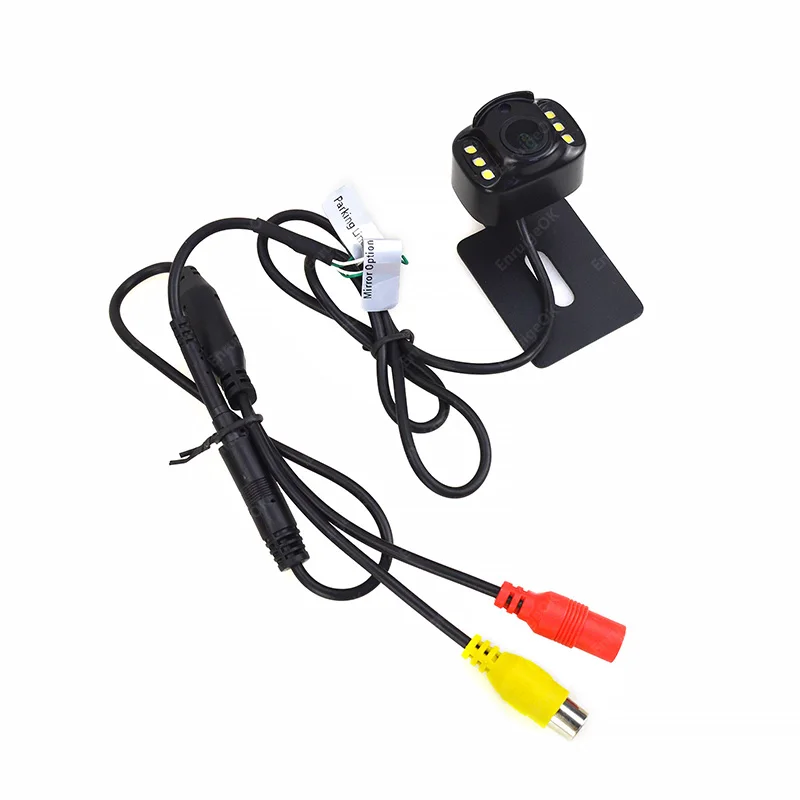

Package Include:

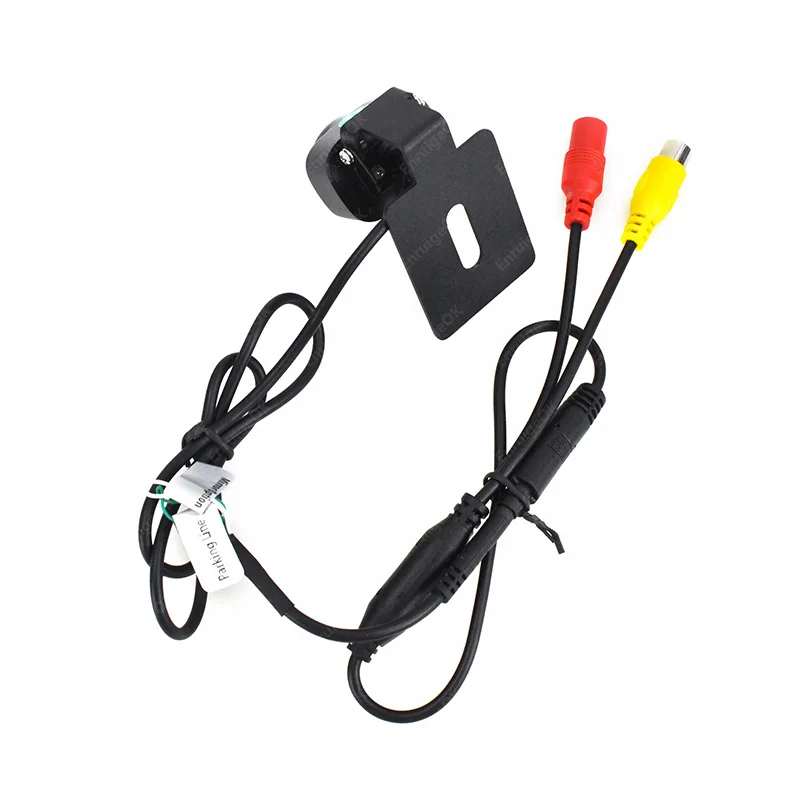

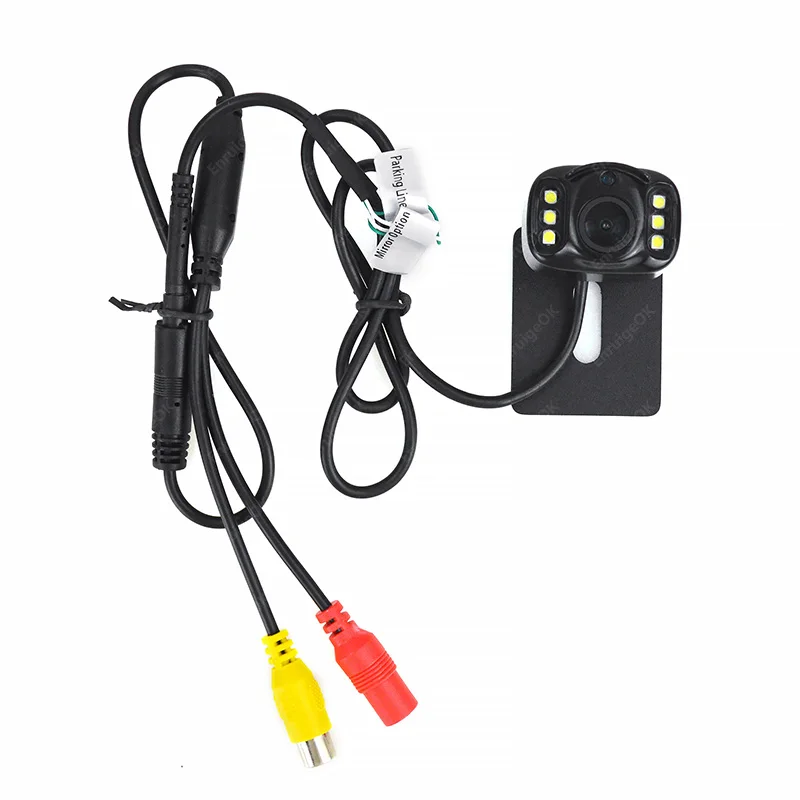

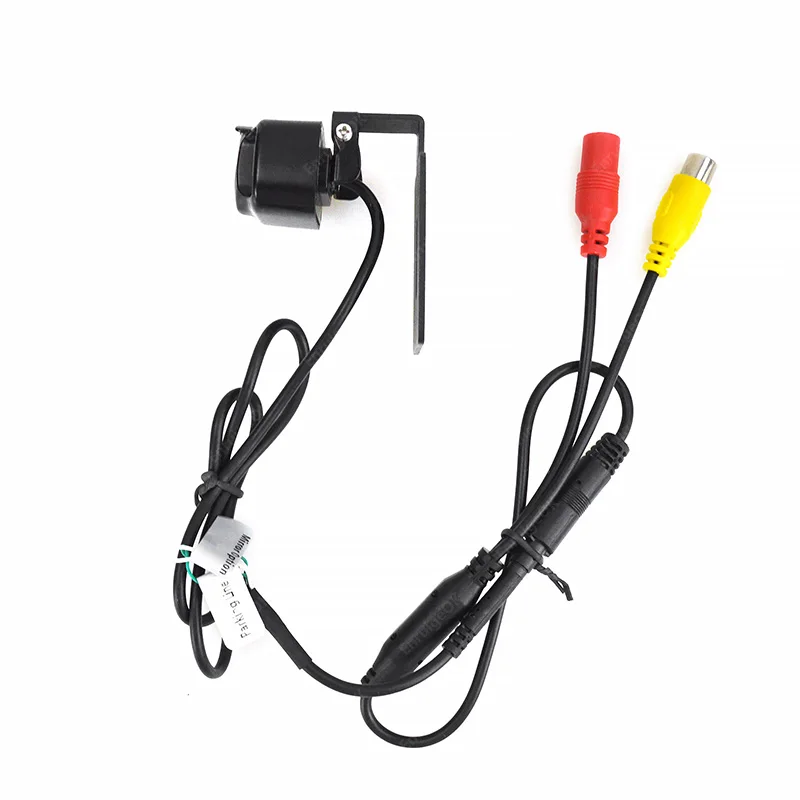

1×Front/Rear View Camera
1×6M Extension Cable
1×DC Cable
1×Manual
