Car Rear View Backup Reverse Camera 120° AHD Night Vision Waterproof Parking Cam

Product overview

ERG-S87CVBS/AHD

Features:

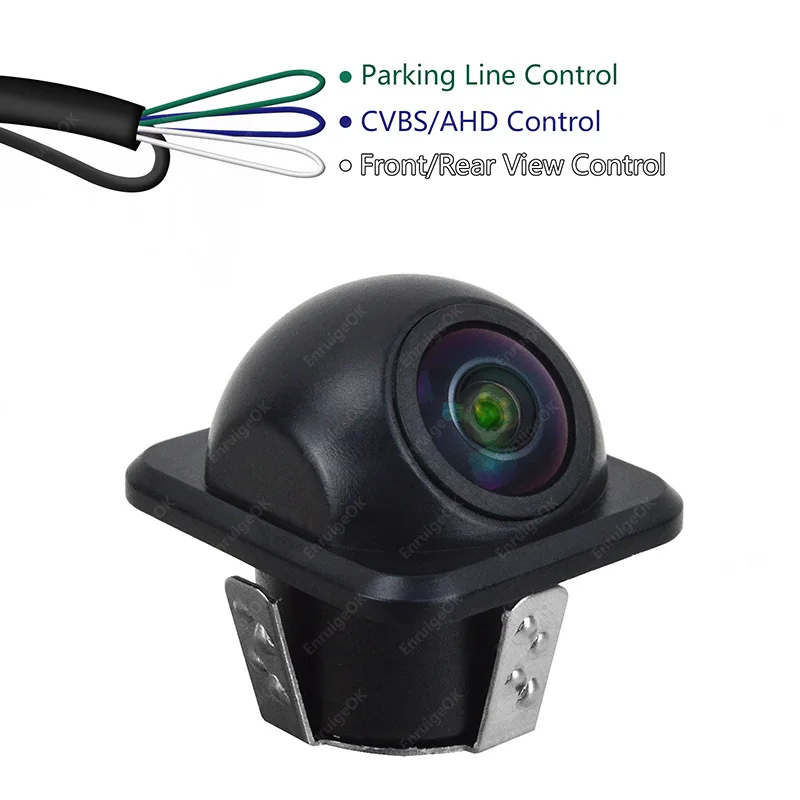

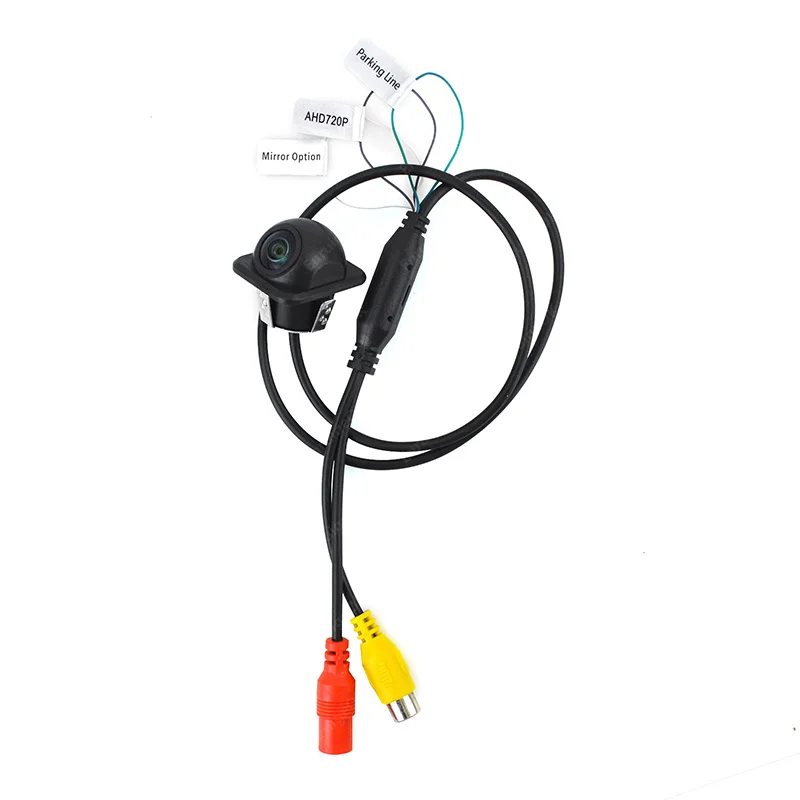

* CVBS signal video by default, by cutting up the switch cable will become AHD 720P signal.
* Mirrored image by defaut as a rear view camera, by cutting up the switch cable you get non-mirrored image to use as a front or side camera.
* Guideline is On by defaut as a rear view camera, by cutting up the switch cable the guideline will be removed.

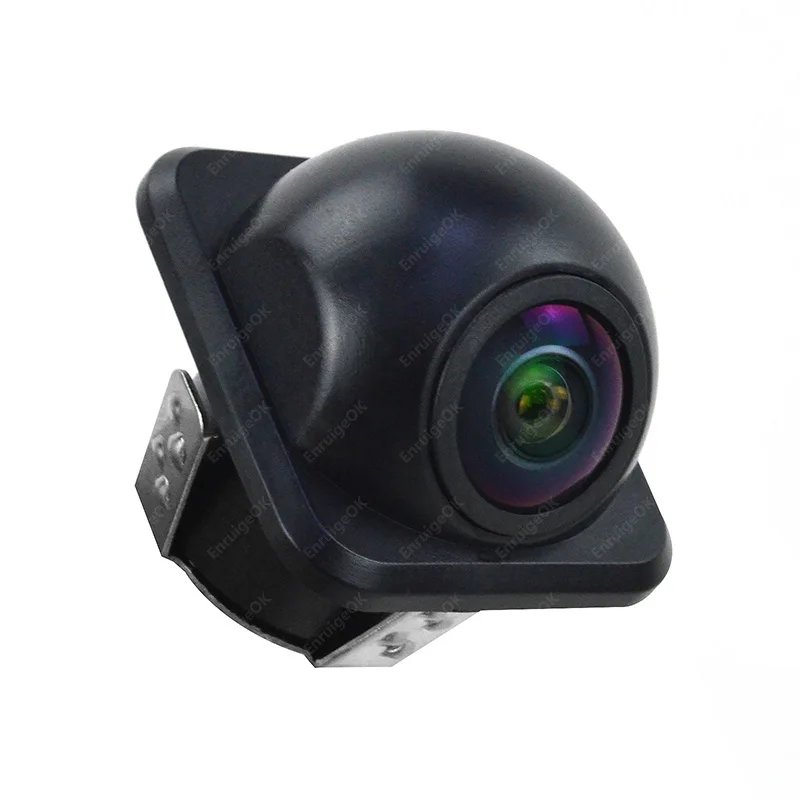

* Small straw hat Reversing/Reverse Camera, universal for most of vehicles like Car, SUV, Truck or Van.
* Rear Park backup camera through the 120° wide-angle camera device, the obstacle behind the car is clearly visible.
*IP68 waterproof design, this rear view camera designed with fully sealed glue filling craft, adapting to all climates. So you absolutely no need to worry about the damage caused by rain, snow or car wash in daily use.
*100% Brand new and high quality.

Product details

Specifications:
Material: ABS
Image sensor: 1/3″CMOS
TV system: PAL/NTSC
Waterproof rating: IP68
Horizontal sync frequency: 15.625KHZ
Scanning system:2:1 interface
Sync system: Internal
ACG: Auto
BLC: Auto
Resolution: CVBS/AHD 720P
S/N Ratio: more than 48dB
Current consumption: no more than 150mA
Minimum illumination: 0.1 – 0.5Lux / F = 1.2
Power supply: DC12V
Power: 5W

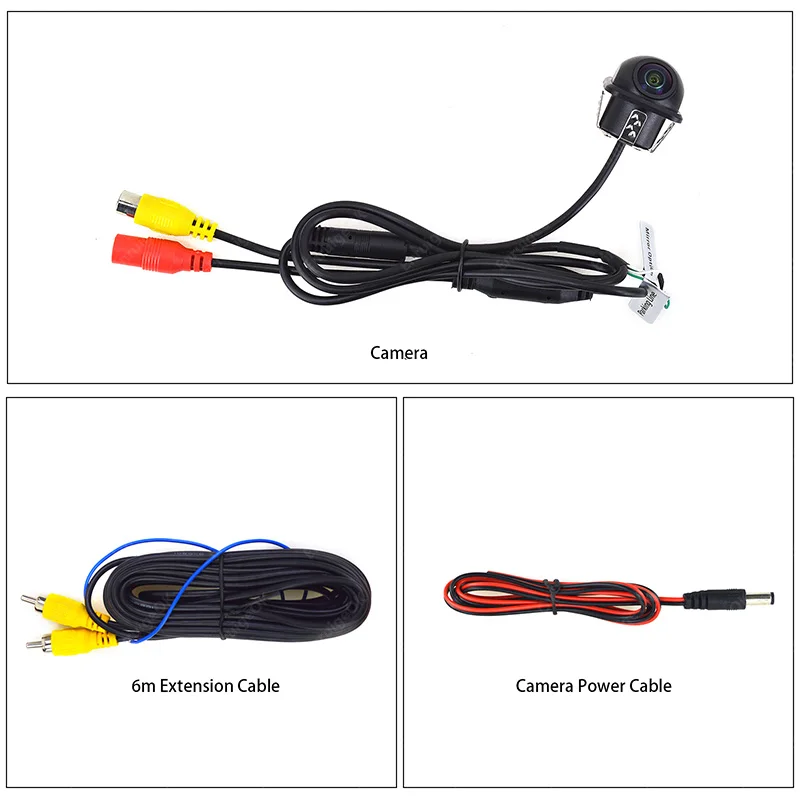

Package Includes:
1×Camera
1×6m RCA Video cable
1×Power cable
1×Hole drill bit
1×user manual
