- Image sensor
- 1/4-inch CMOS
- Resolution
- 480TVL
- TV system
- PAL / NTSC
- Viewing angle
- 100°
Front / rear-view camera with a 1/4-inch CMOS sensor, 480TVL output, a 100° viewing angle and IP68 protection. Includes a 6 m extension cable.
Specifications
General
- Image sensor
- 1/4-inch CMOS
- Resolution
- 480TVL
- TV system
- PAL / NTSC
- Viewing angle
- 100°
- Waterproof rating
- IP68
- Power supply
- DC 12V
Show 4 more specifications
- Minimum illumination
- 0.1–0.5 Lux / F1.2
- Power
- 5 W
- Operating temperature
- -20°C to +70°C
- Extension cable
- 6 m
Full product details
Product overview
ERG-3563

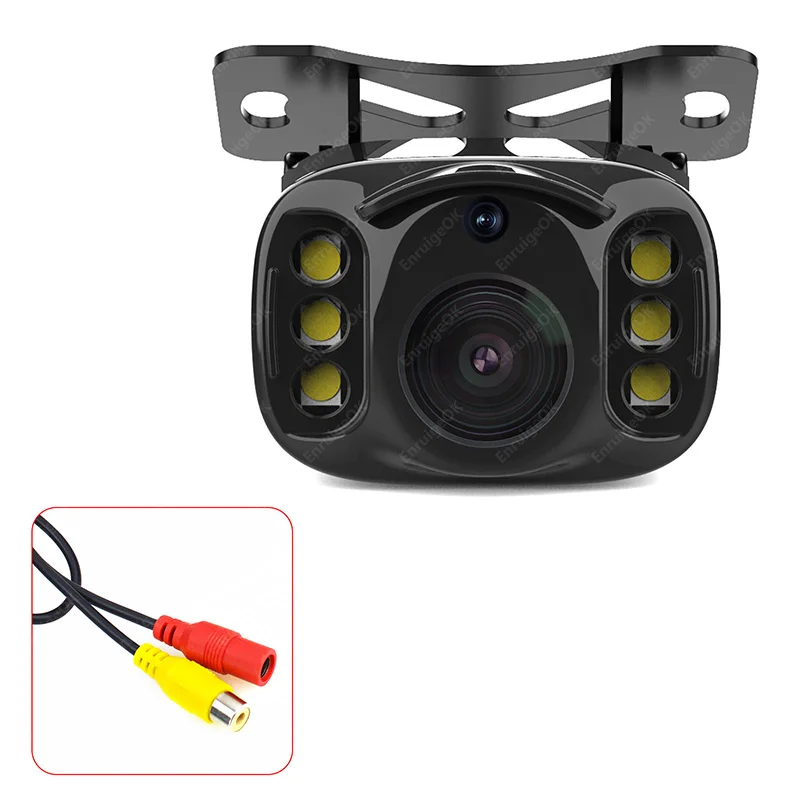

Front / rear-view camera with a 1/4-inch CMOS sensor, 480TVL output, a 100° viewing angle and IP68 protection. Includes a 6 m extension cable.
Product details
- 1/4-inch CMOS sensor with 480TVL output.

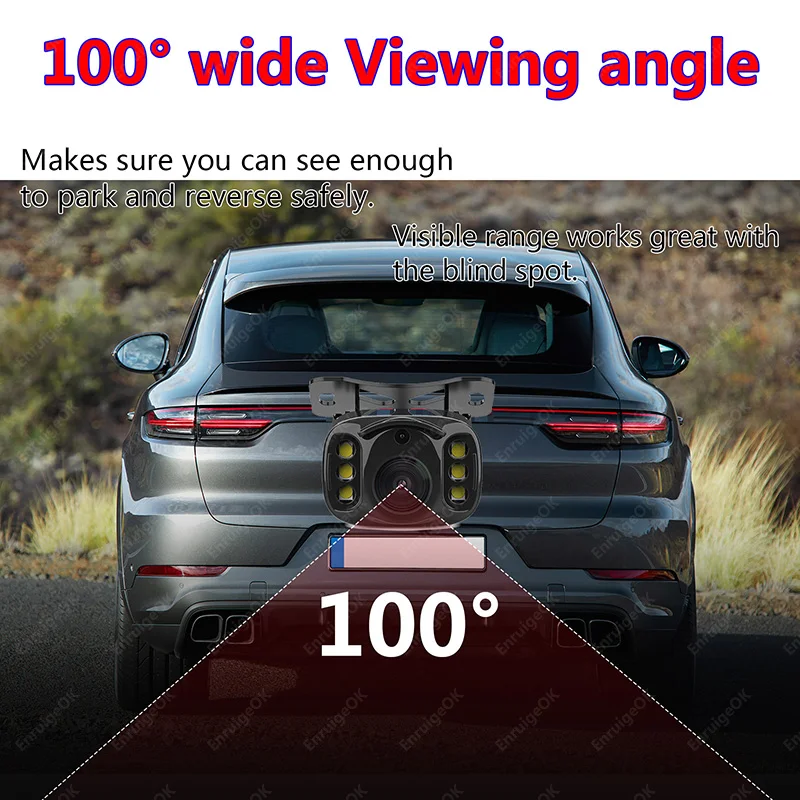

- 100° viewing angle and night vision.
- PAL / NTSC video systems and DC 12V supply.
- IP68 protection; confirm forward / mirror image configuration and monitor compatibility.
Package contents

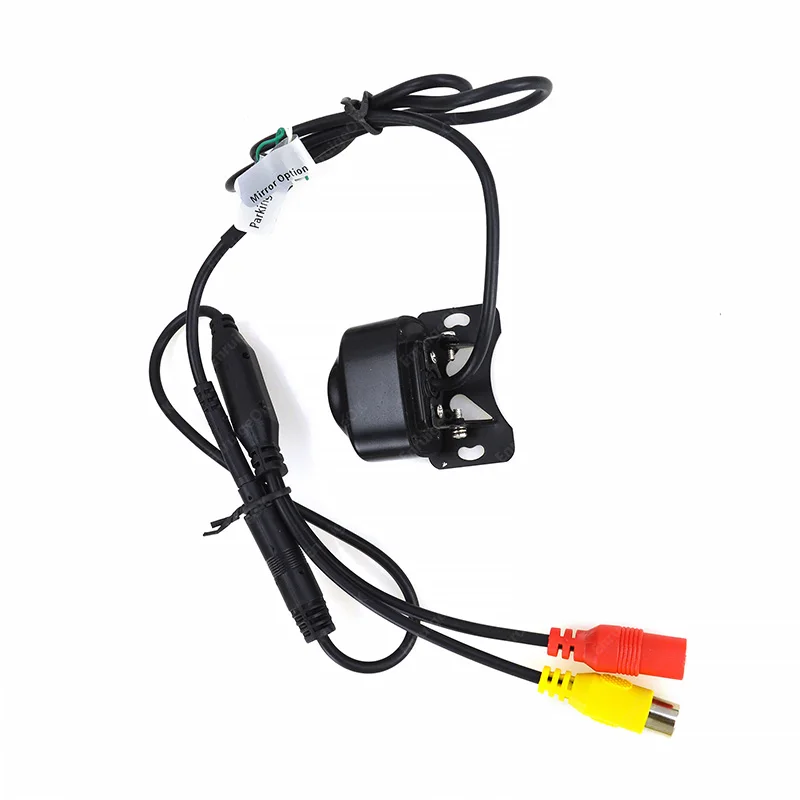

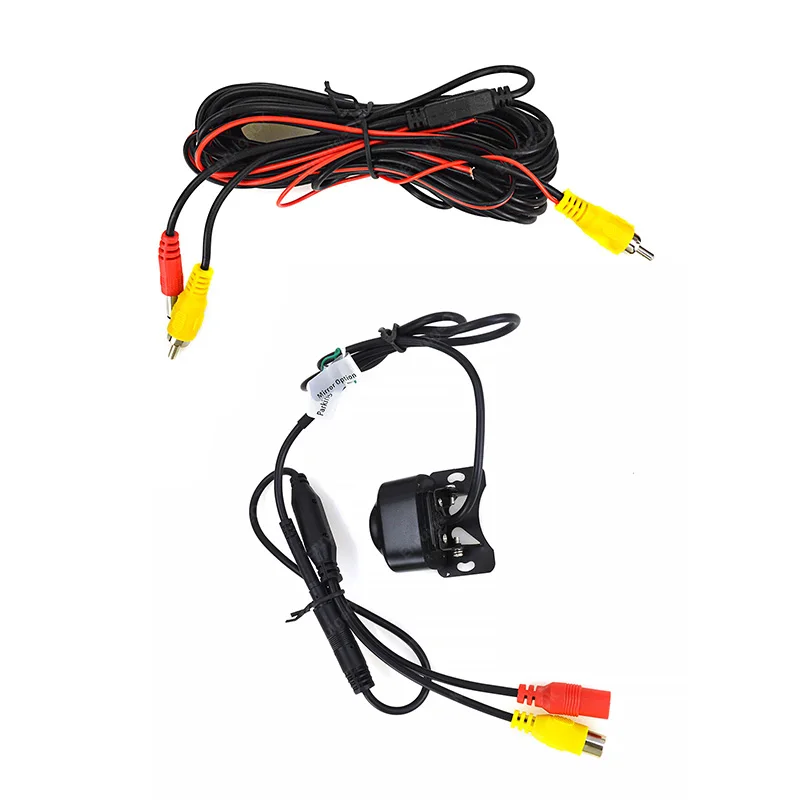

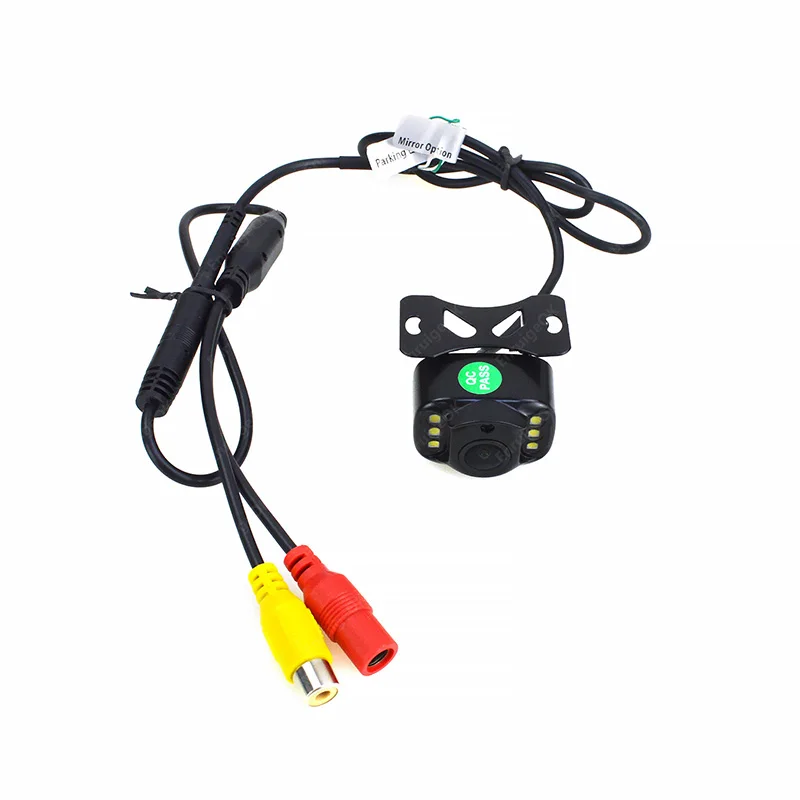

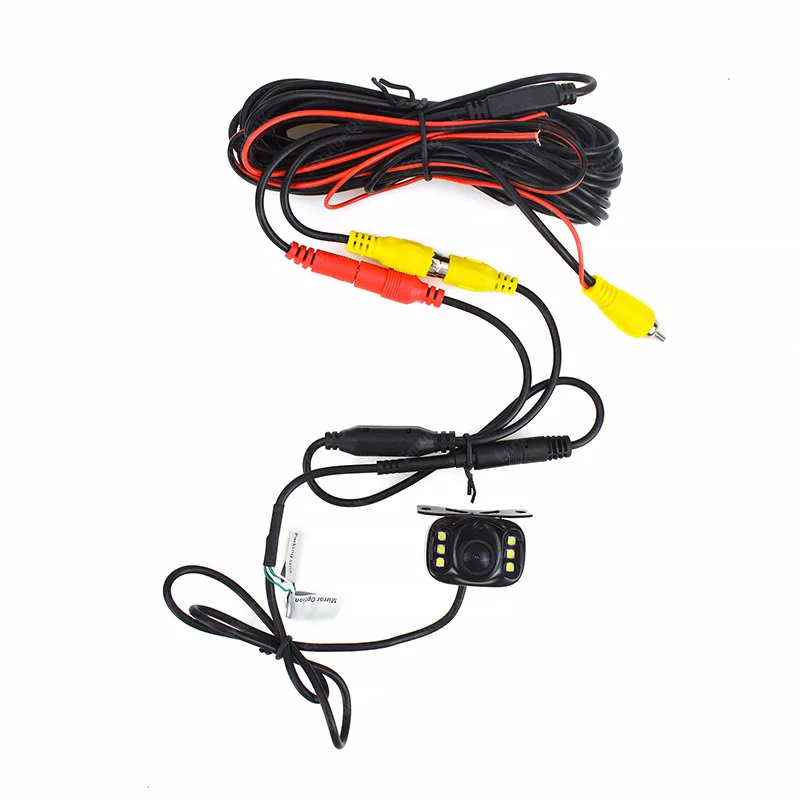

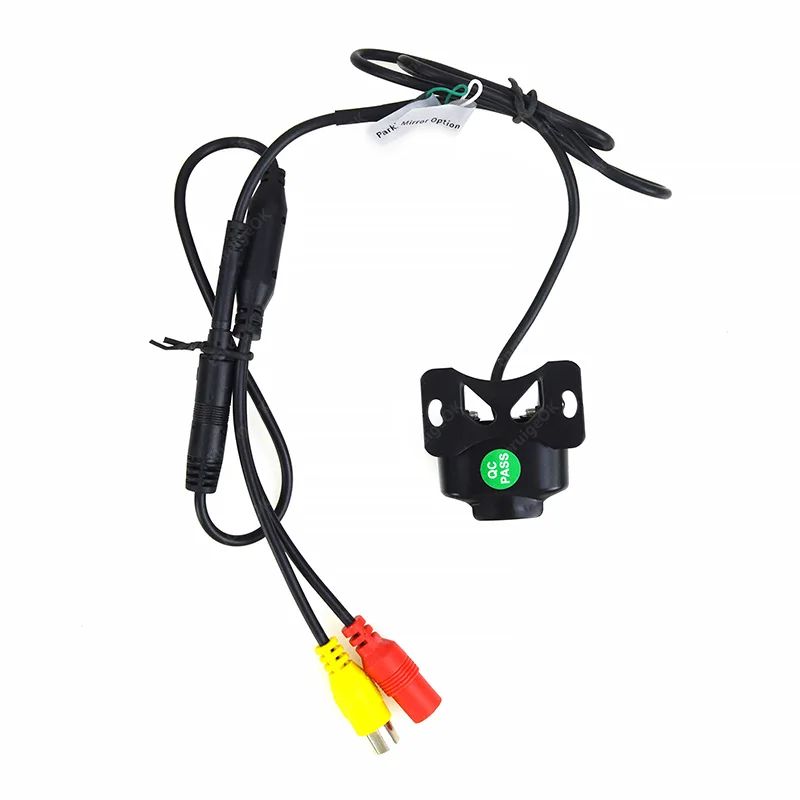

One front / rear-view camera, 6 m extension cable, DC cable and manual.
Confirm vehicle fitment, installation requirements and the ordered camera version when requesting a quote.
