- Image sensor
- 1/4-inch CMOS
- Video format
- CVBS / AHD 720P NTSC switching
- CVBS resolution
- 480TVL
- Viewing angle
- 170°

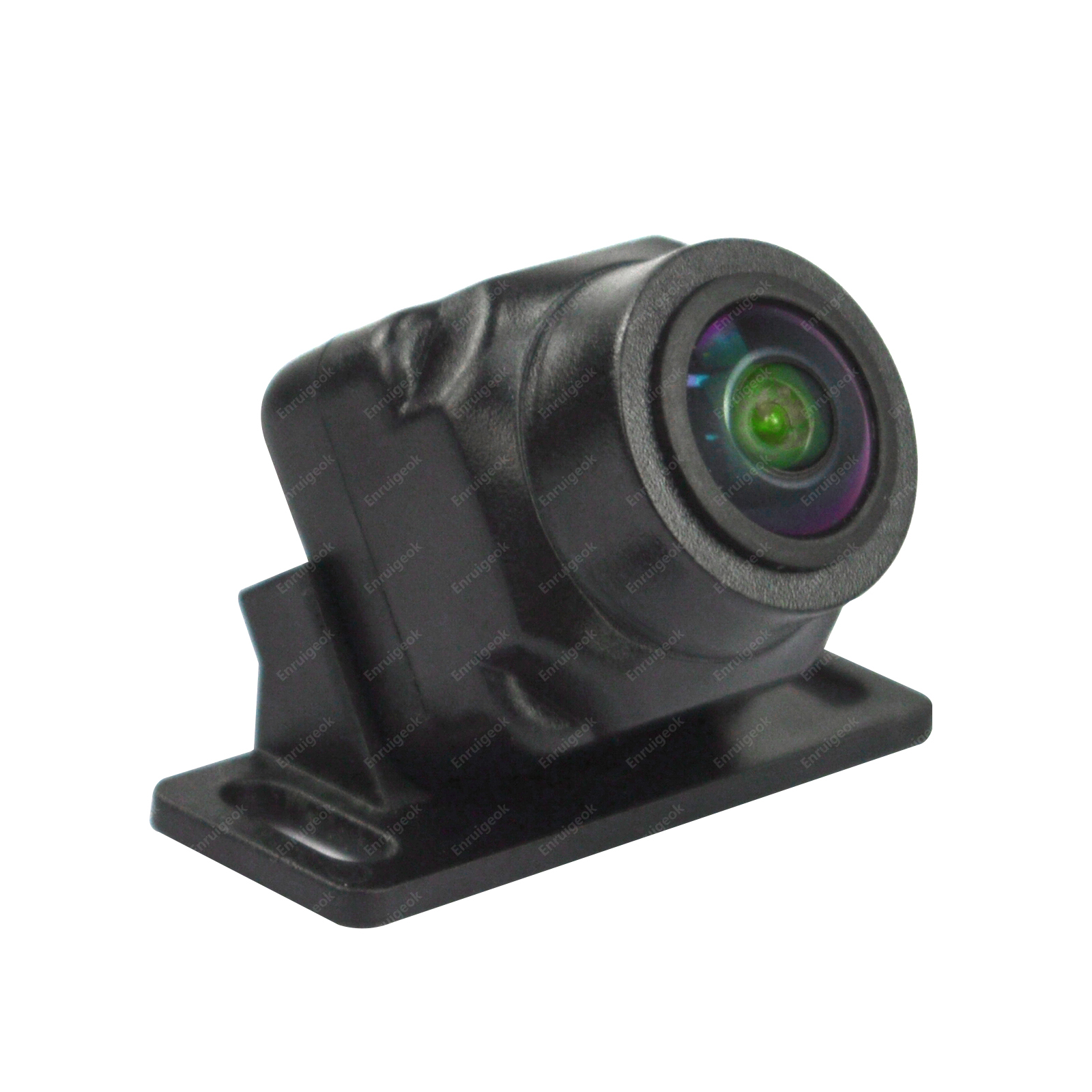

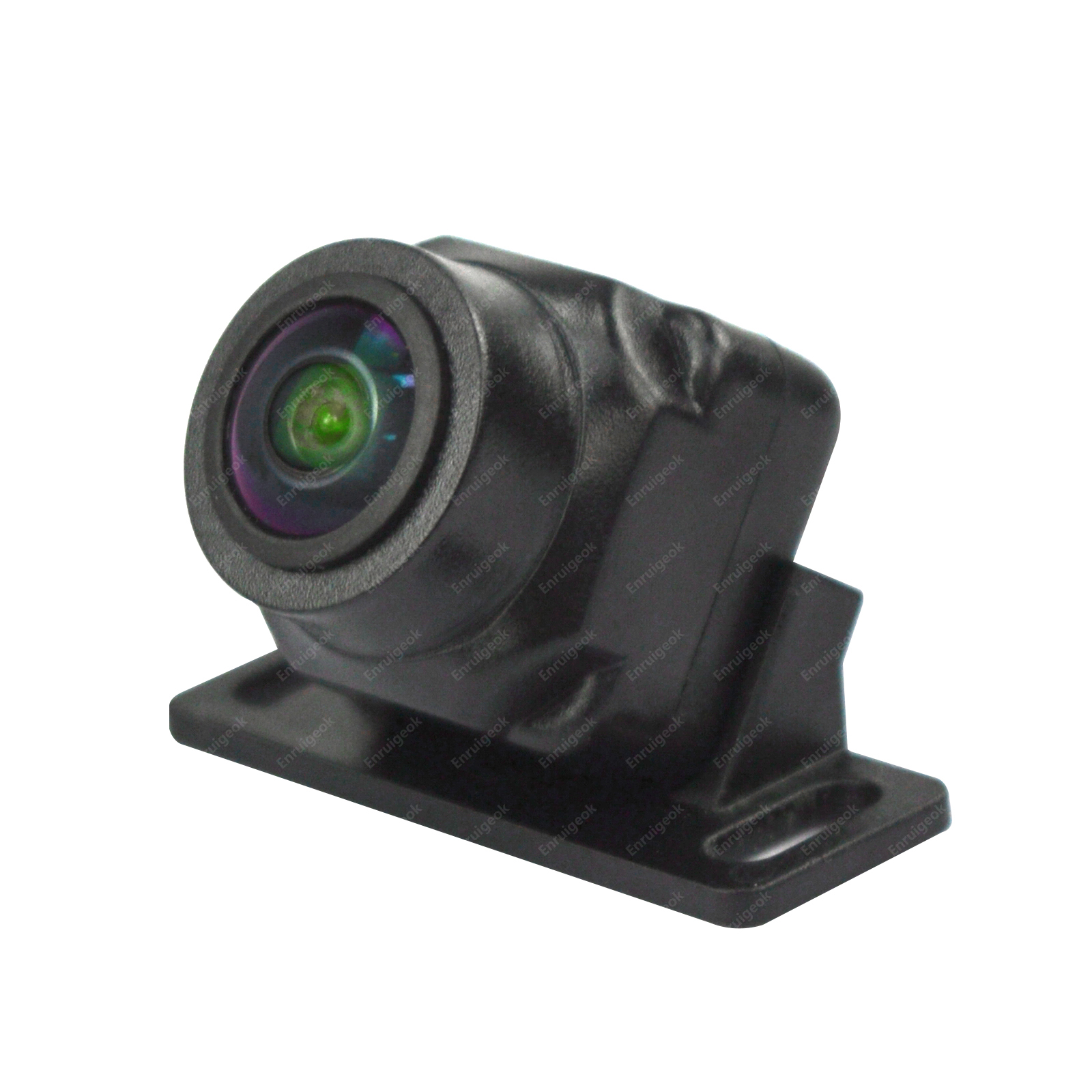

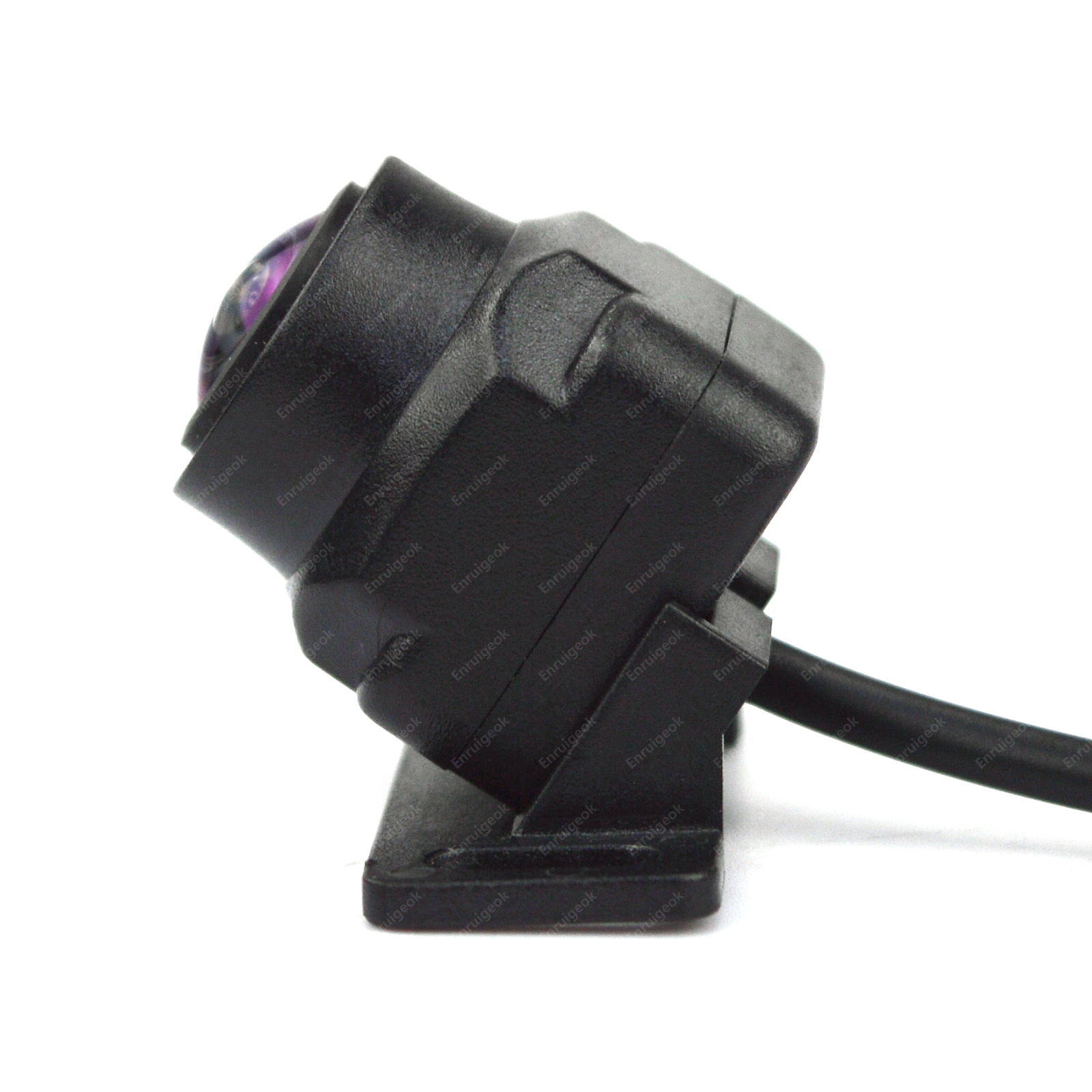

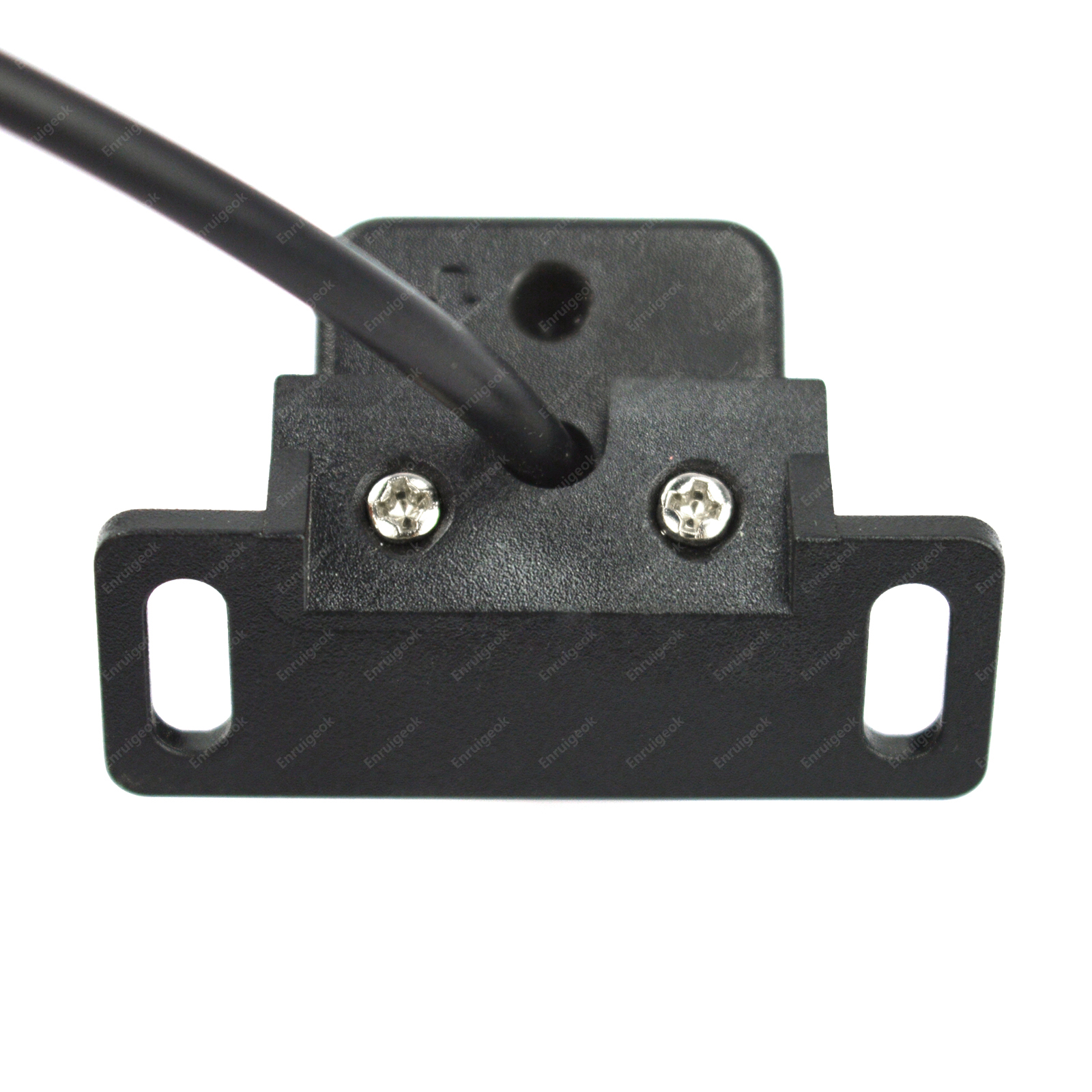

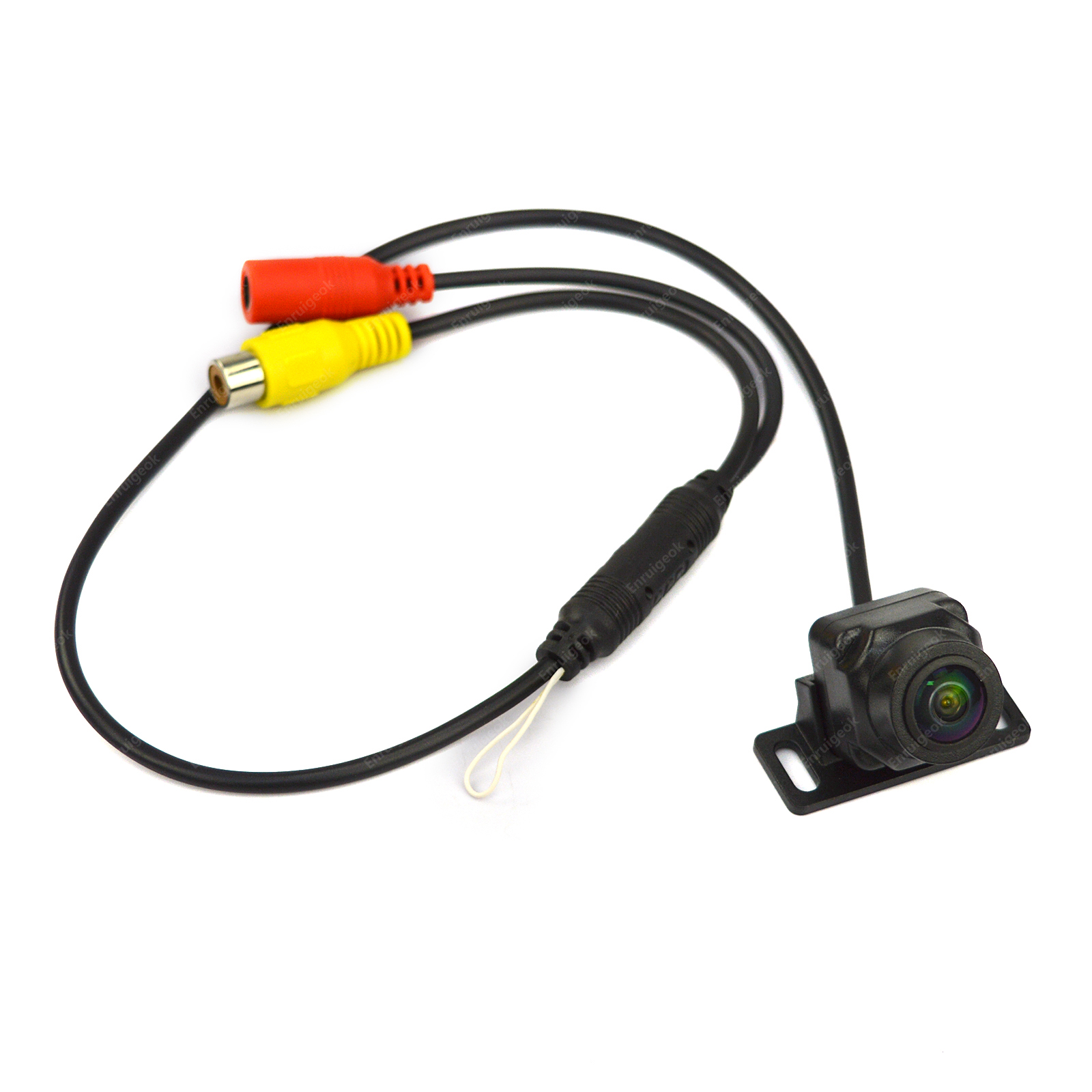

Black rear-view camera with a 170° viewing angle, IP68 protection and an 8 m RCA video cable. Supports CVBS and AHD 720P NTSC modes.
Specifications
General
- Image sensor
- 1/4-inch CMOS
- Video format
- CVBS / AHD 720P NTSC switching
- CVBS resolution
- 480TVL
- Viewing angle
- 170°
- Waterproof rating
- IP68
- Power supply
- DC 12V
Show 4 more specifications
- Minimum illumination
- 0.2 Lux
- Video connector
- RCA
- Video cable
- 8 m
- Color
- Black
Full product details
Product overview
ERG-6066
Black rear-view camera with a 170° viewing angle, IP68 protection and an 8 m RCA video cable. Supports CVBS and AHD 720P NTSC modes.
Product details
- 1/4-inch CMOS sensor with CVBS 480TVL and AHD 720P NTSC video modes.
- CVBS NTSC is the default video mode; confirm the required mode before installation.
- 170° viewing angle, low-light night vision and parking guidelines.
- IP68 protection and DC 12V supply.

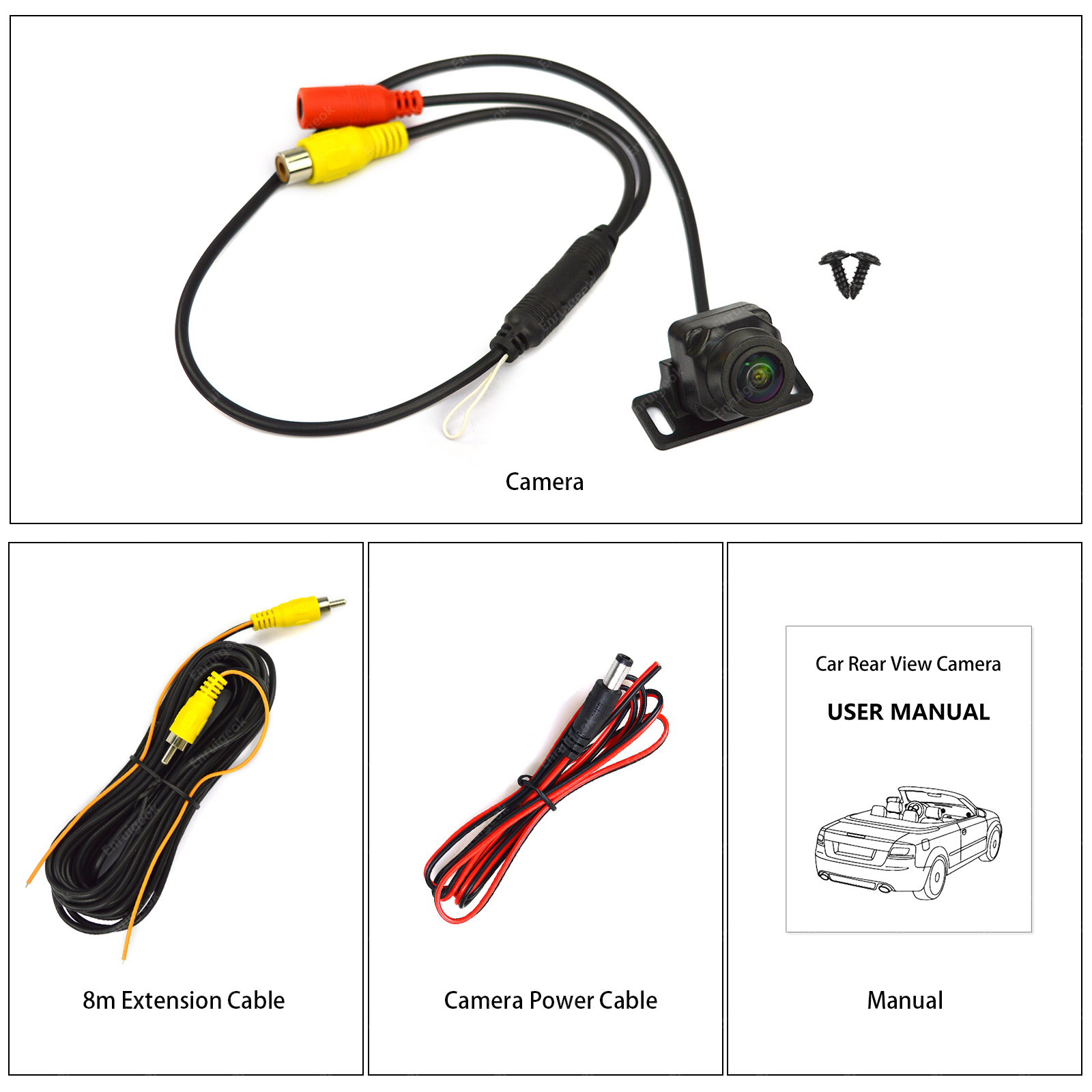

Package contents
One rear-view camera, power cable, 8 m video extension cable and manual.
Confirm vehicle fitment, installation requirements and the ordered camera version when requesting a quote.
