ERG-S01
Dual Lens Rear View Reversing Camera for Motorhomes and Buses
- Image sensor
- 1/3-inch CMOS
- Resolution
- CVBS 700TVL
- Waterproof rating
- IP68
- TV system
- PAL / NTSC
Dual-lens CVBS rear-view camera with 90° / 120° views, infrared night vision and IP68 protection. Available in black or white with 4-pin or RCA connections.
Specifications
General
- Image sensor
- 1/3-inch CMOS
- Resolution
- CVBS 700TVL
- Waterproof rating
- IP68
- TV system
- PAL / NTSC
- Power supply
- DC 12V
- Viewing angle
- 90° / 120°
Show 6 more specifications
- Night vision
- 24 IR LEDs (12 per camera)
- Connector
- 4-pin or RCA options
- Housing material
- Aluminium alloy
- Lens material
- Glass
- Parking guidelines
- No
- Color
- Black / White
Full product details
Product overview
ERG-S01

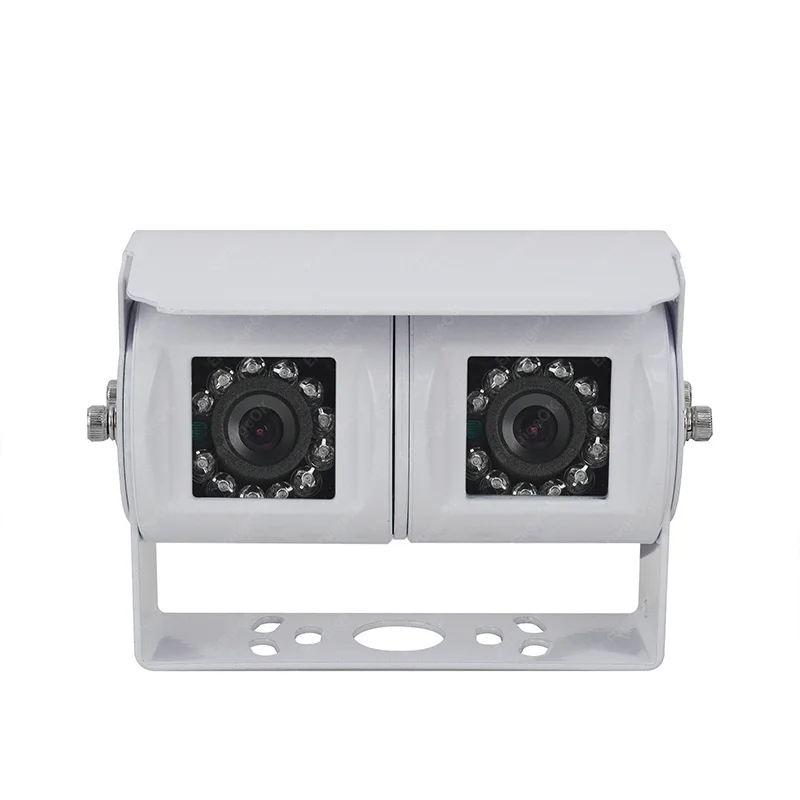

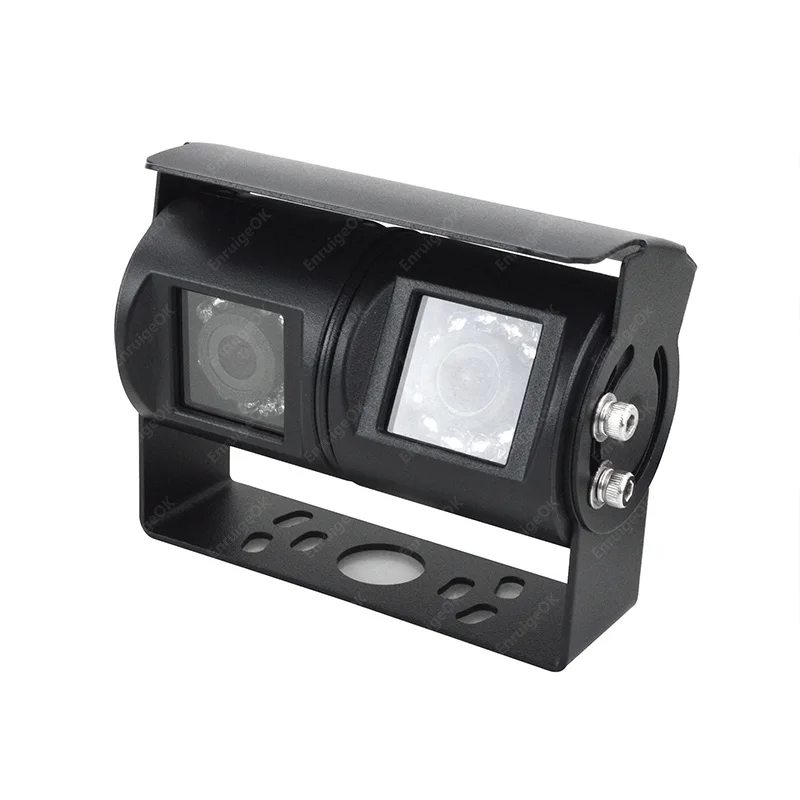

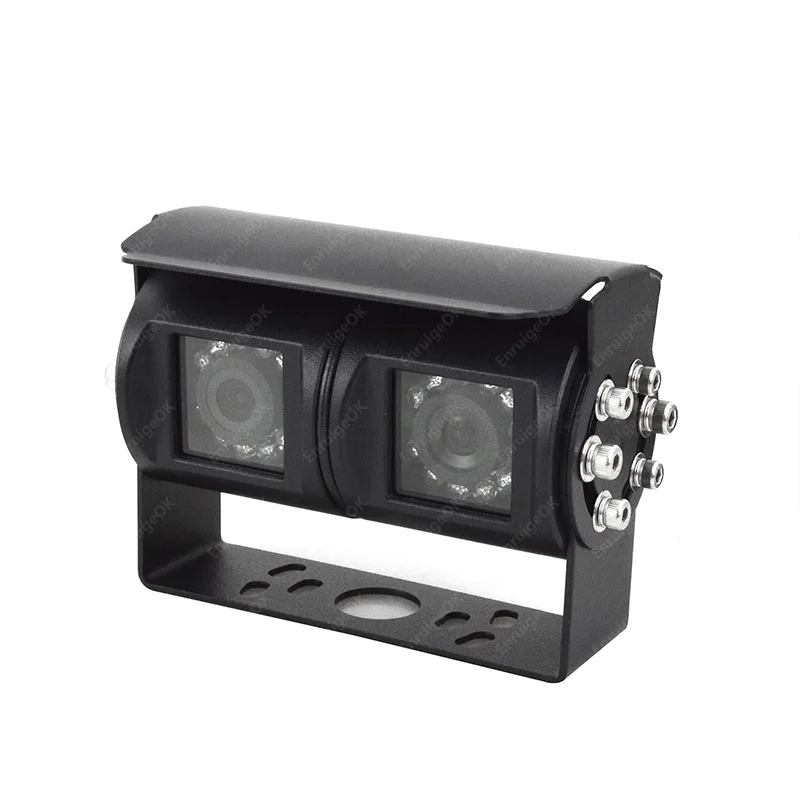

A wired dual-lens rear-view camera for motorhomes, buses and other vehicle applications. Two viewing angles provide rear-view and reversing visibility.
Product details
- 1/3-inch CMOS sensor with CVBS 700TVL output.
- 90° and 120° viewing angles.
- 24 infrared LEDs, with 12 LEDs per camera for night vision.
- IP68 aluminium-alloy housing with glass lenses.
- DC 12V power supply and PAL / NTSC video systems.
- Black or white finish; 4-pin or RCA connector options.
- No parking guidelines.
Package contents
Dual-lens camera and screw kit. Video extension cable is not included.
Confirm the connector, video system and monitor compatibility when requesting a quote.
