ERG-S04
Universal Truck and Bus Side View Camera with 5 IR LEDs
- Image sensor
- 1/3-inch CMOS
- Resolution
- AHD 1080P or CVBS 700TVL
- Waterproof rating
- IP68
- Viewing angle
- 120°

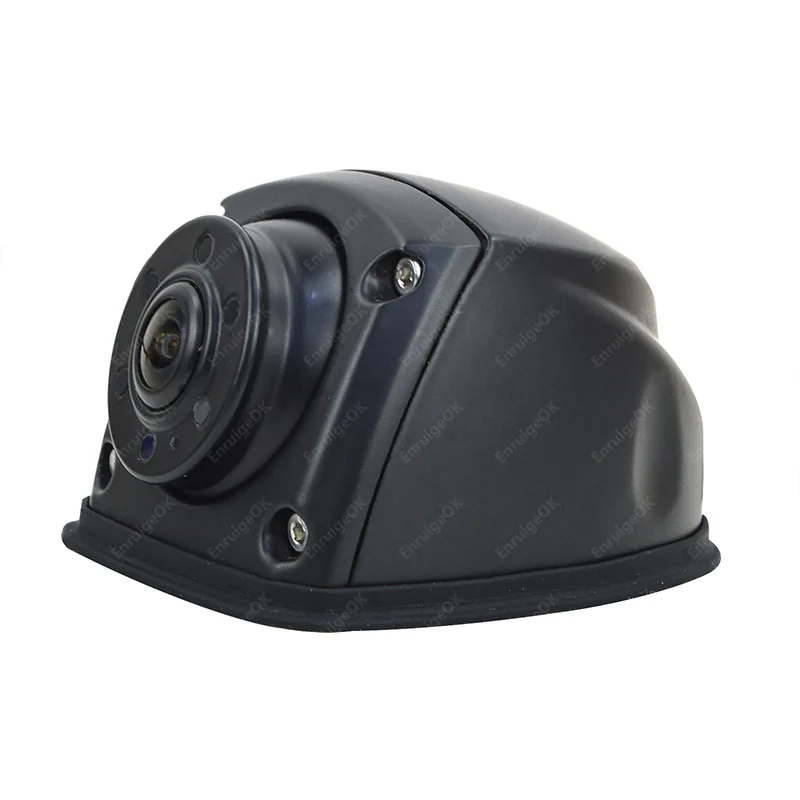

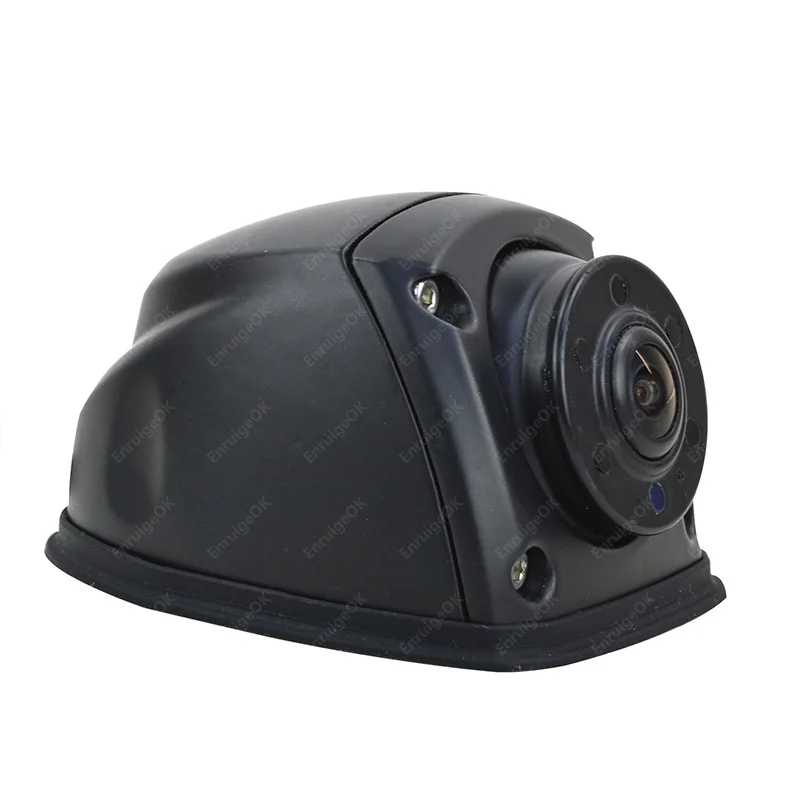

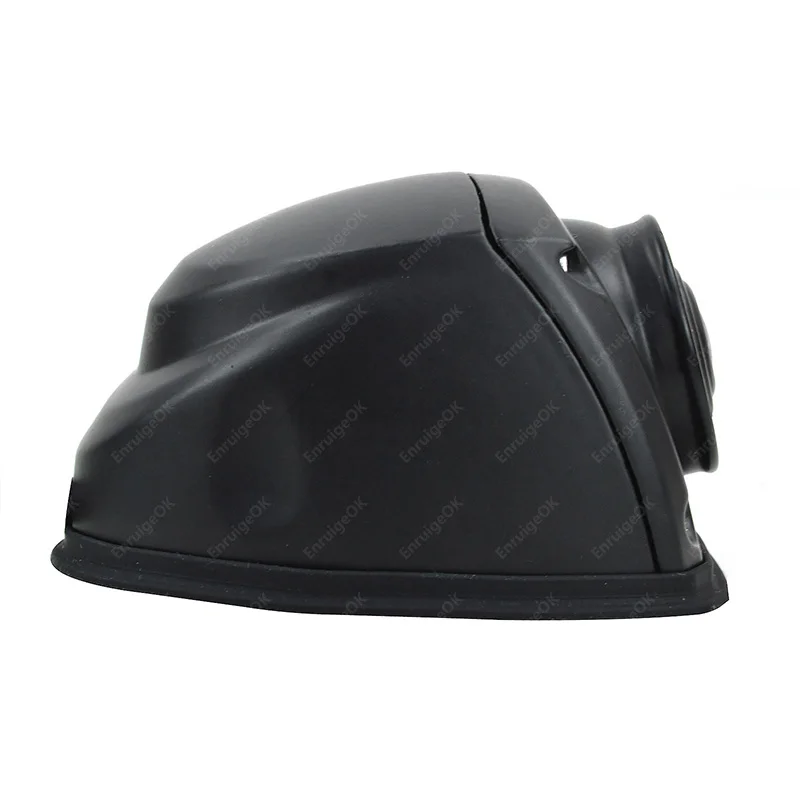

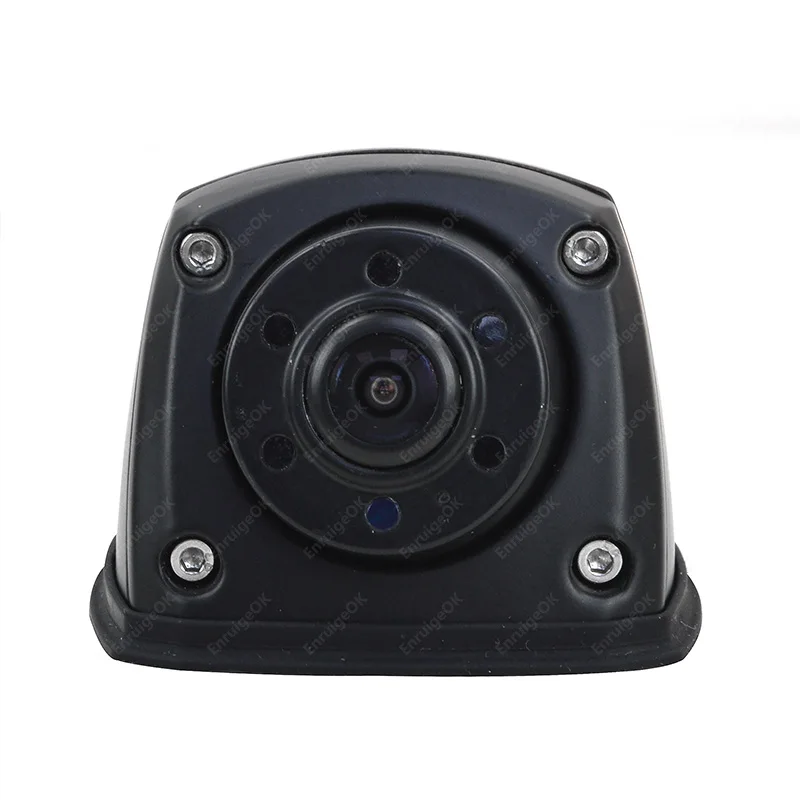

Universal side-view camera with 5 infrared LEDs, a 120° viewing angle and IP68 protection. Available in AHD 1080P or CVBS 700TVL versions for trucks, buses, trailers, campers and RVs.
Specifications
General
- Image sensor
- 1/3-inch CMOS
- Resolution
- AHD 1080P or CVBS 700TVL
- Waterproof rating
- IP68
- Viewing angle
- 120°
- Night vision
- 5 IR LEDs
- TV system
- PAL / NTSC
Show 2 more specifications
- Power supply
- DC 12V
- Operating temperature
- -20°C to +70°C
Full product details
Product overview
ERG-S04
A universal side-view camera for trucks, buses, trailers, campers and RVs. Choose the AHD or CVBS version to match the vehicle’s monitor and video system.
Product details
- AHD 1080P or CVBS 700TVL versions.
- 120° viewing angle for side visibility.
- 5 infrared LEDs for night vision.
- IP68 protection for outdoor vehicle installation.
- 1/3-inch CMOS image sensor, PAL / NTSC video systems and DC 12V power supply.
- Operating temperature: -20°C to +70°C.
Package contents
One heavy-duty side-view camera and one manual.
Confirm the video format, monitor compatibility and installation requirements when requesting a quote.
