ERG-S27
Dome Rear View Reversing Camera with 12 IR LEDs for Caravans and Trucks
- Image sensor
- 1/3-inch CMOS
- Resolution
- AHD 1080P or CVBS 700TVL
- Waterproof rating
- IP68
- Viewing angle
- 120°
Black dome rear-view camera with 12 infrared LEDs, a 120° viewing angle and IP68 protection. Available in AHD 1080P or CVBS 700TVL versions with a 4-pin connection.
Specifications
General
- Image sensor
- 1/3-inch CMOS
- Resolution
- AHD 1080P or CVBS 700TVL
- Waterproof rating
- IP68
- Viewing angle
- 120°
- Night vision
- 12 IR LEDs
- TV system
- PAL / NTSC
Show 6 more specifications
- Power supply
- DC 12V
- Connector
- 4-pin
- Connection type
- Wired
- Housing material
- Aluminium alloy
- Lens material
- Glass
- Color
- Black
Full product details
Product overview
ERG-S27
A wired dome rear-view camera for caravans, trucks, buses, trailers and RVs. Choose the AHD or CVBS version to match the vehicle’s monitor.
Product details
- AHD 1080P or CVBS 700TVL versions.
- 120° viewing angle for rear visibility.
- 12 infrared LEDs for night vision.
- Black aluminium-alloy housing, glass lens and IP68 protection.
- DC 12V power supply, PAL / NTSC video systems and a 4-pin connection.
Package contents

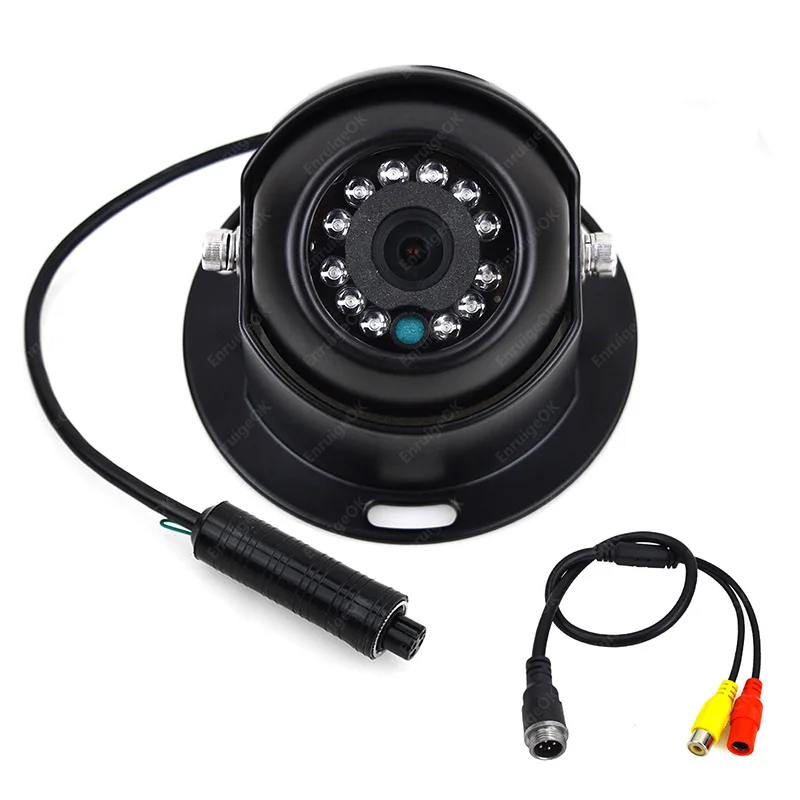

Reversing camera, 4-pin to AV adapter cable, sticker and mounting screw.
Confirm the video format, connector and installation requirements when requesting a quote.
