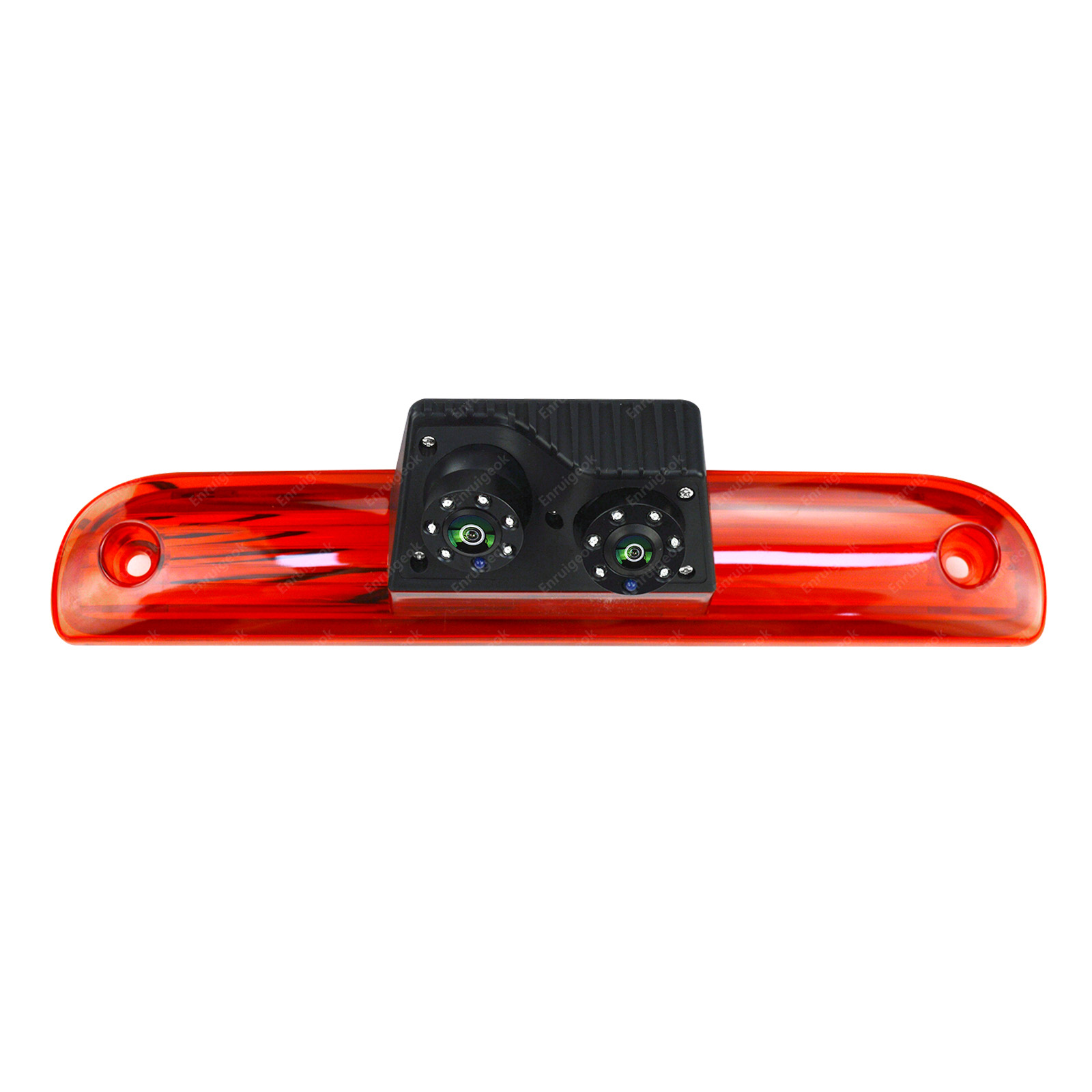

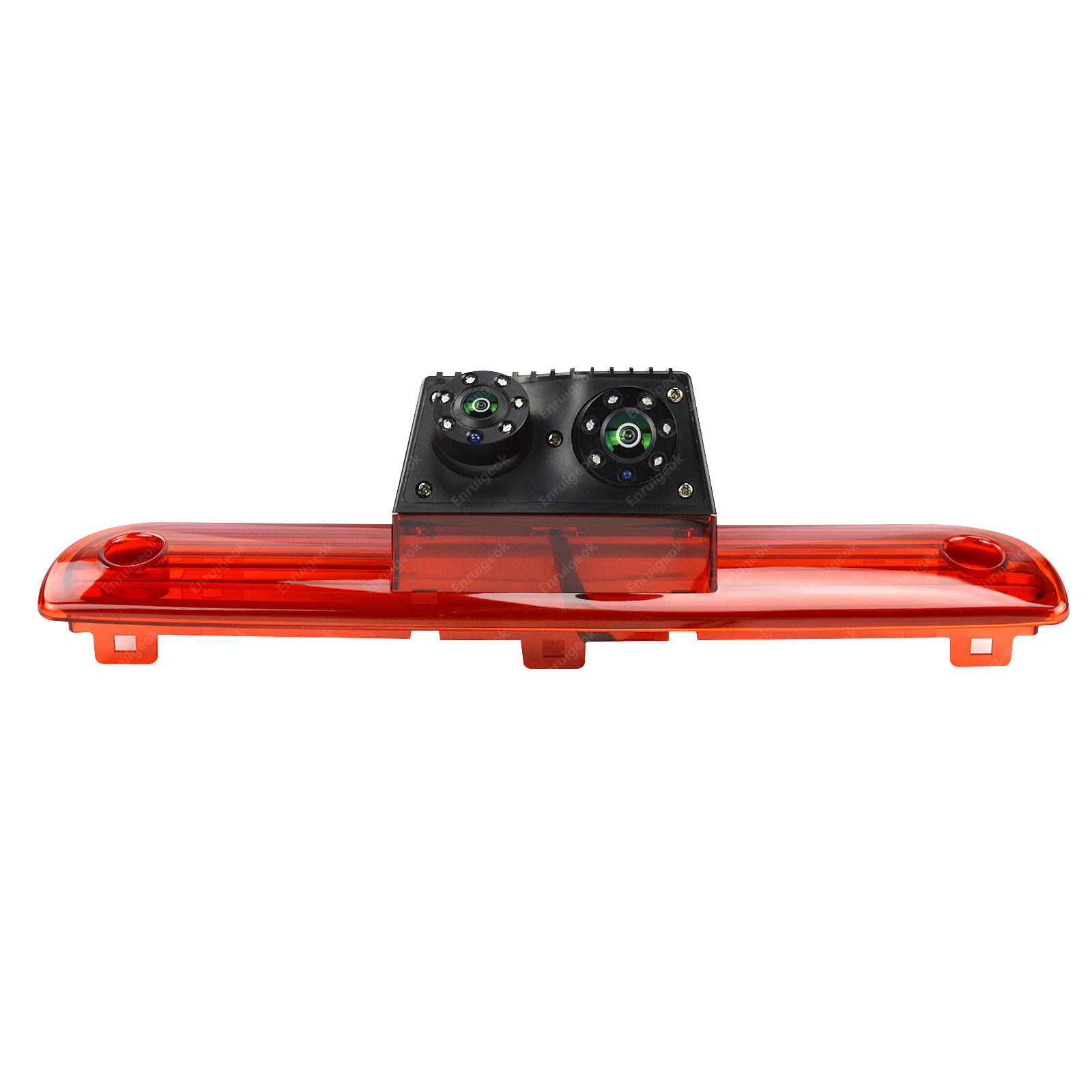

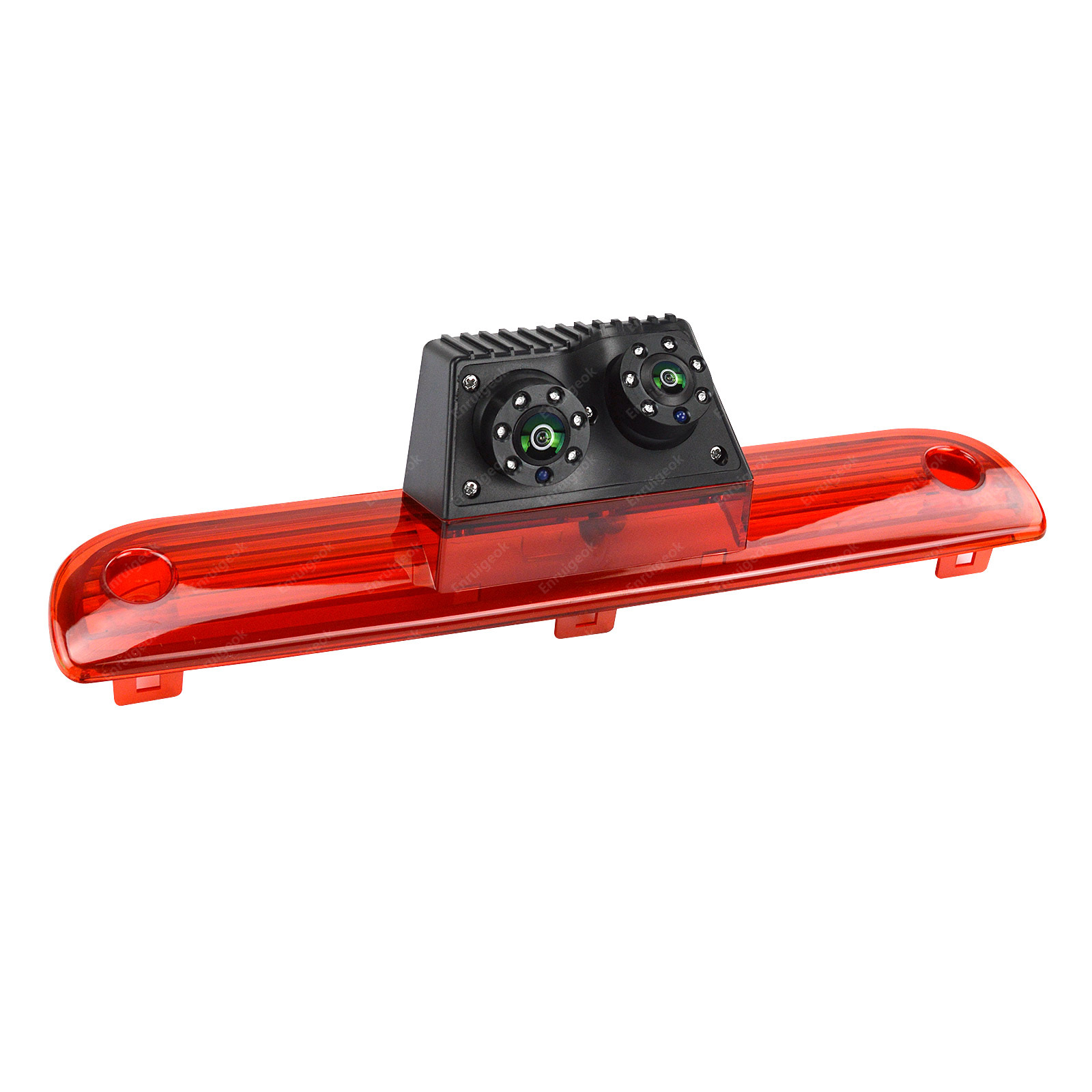

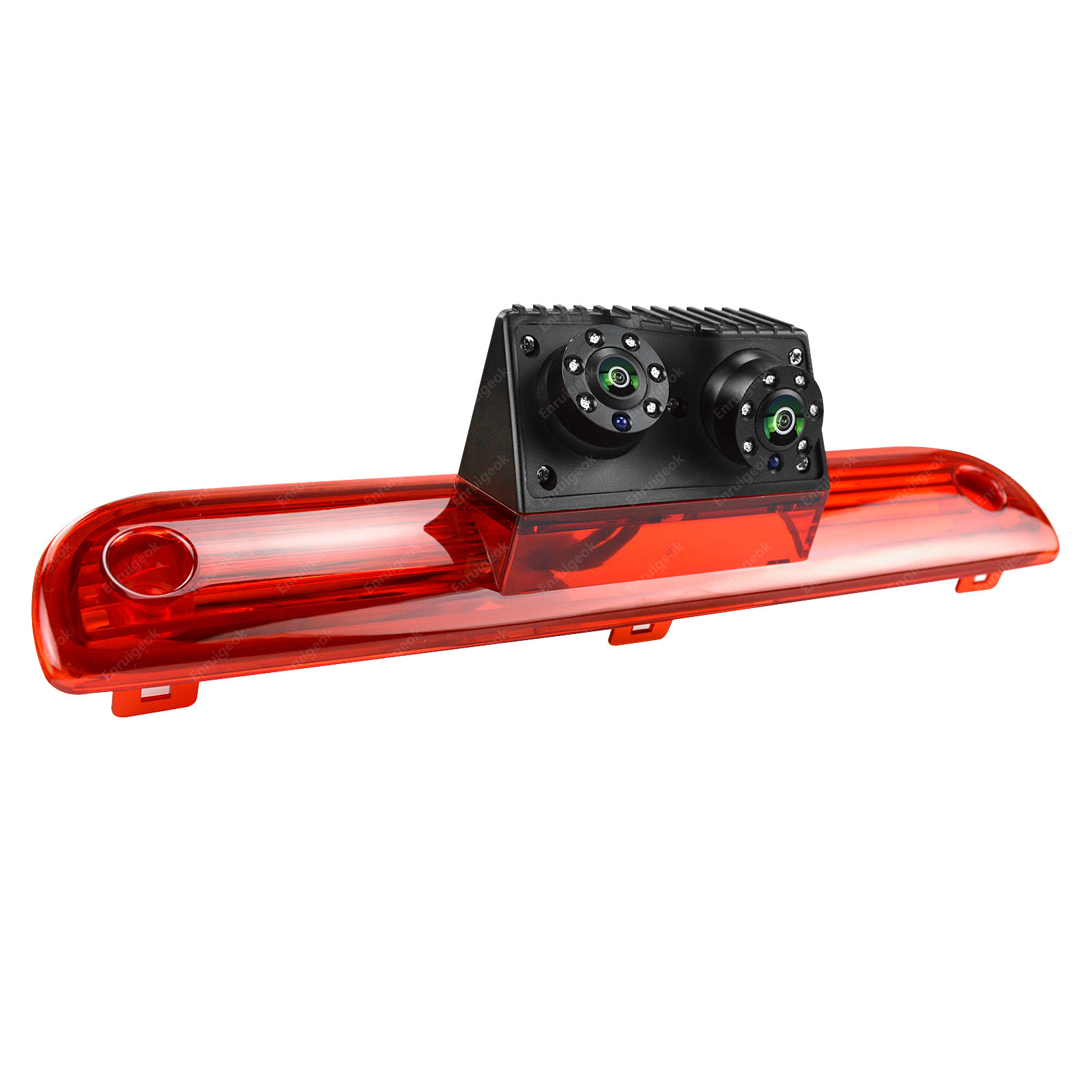

Fiat Ducato Dual Camera High Position Brake Light Camera

Product overview

ERG-S63A

Brake Light Replacement Camera
This camera is a direct replacement for the original vehicle brake light. It features simple installation and a perfect factory-style fitting.
Dual Lens Design
Dual lens reversing camera with two independent viewing angles:

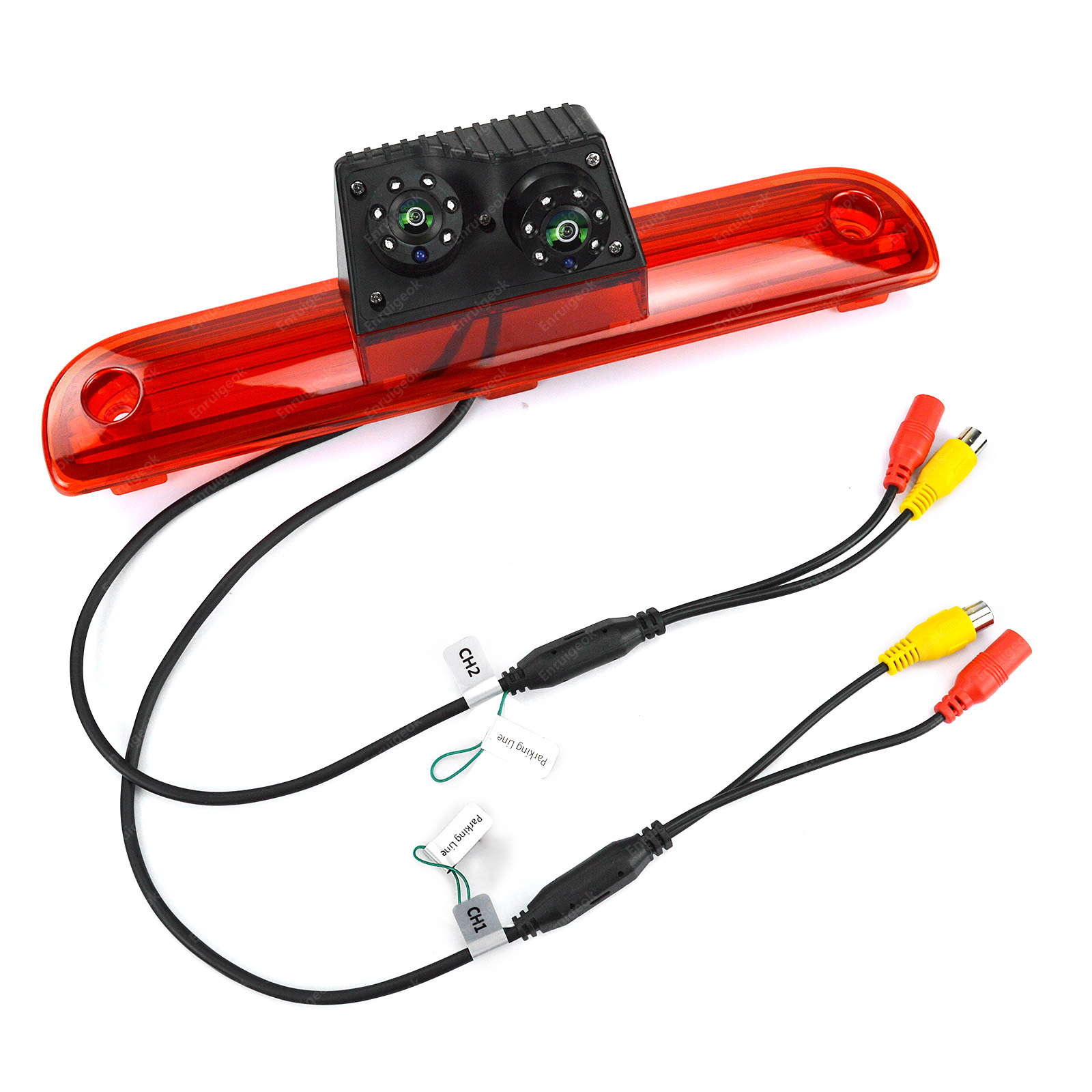

Left screw (CH1 camera):
Adjusts the rear view camera, please rotate the screw
to tilt the camera up or down for rear viewing.
Right screw (CH2 camera):
Adjusts the reversing camera, please rotate the screw to
position the camera for parking.
Turn each screw clockwise or counterclockwise until both
cameras are properly aligned.
Make sure:
The CH1 camera clearly captures the rear view area.
The CH2 camera provides parking wide-angle view.
Wide Voltage Range (DC 9V-35V)
Compatible with vehicle power systems with voltage fluctuations, ensuring stable and reliable performance under all working conditions.
Image Sensor & Night Vision
Equipped with a high-quality color CMOS sensor for vivid color reproduction. 8 built-in infrared LED lights around the lens deliver clear and superior night vision performance.
Horizontal Viewing Angle
Boasting a maximum 170° ultra-wide viewing angle, it captures every detail of the rear surrounding environment clearly.
Waterproof Rating
Adopted IP69 professional waterproof design, the camera is fully waterproof for all weather conditions.

Product details

Camera Compatibility:

Peugeot-Boxer 2(2006-2011)
Peugeot-Boxer 3(2012-2014)
Peugeot-Boxer 3 facelift (2014 >)
Citroen-Jumper/Relay 2 (2006-2011)
Citroen-Jumper/Relay 3(2012 -2014)
Citroen-Jumper/Relay facelift (2014 >)
Fiat-Ducato 3rd Gen(2006-2014)
Fiat-Ducato 3rd Gen Facelift (X290)(2014-2021)
Fiat-Ducato 3rd Generation Series lll (X290) (2021 >)
Vauxhall-Movano(2022 >)

Camera Specifications:

Image sensor: Colour CMOS
Effective pixel: CVBS 733(H)x493(V); AHD 1280(H)x720(V)
Resolution: CVBS 700TV Lines; AHD 720P
Night Vision distance: Approx.35ft
Waterproof rating: IP69
Viewing angle: 90°&170°
Video system: PAL/NTSC
S/N Ratio: > 48dB
Current consumption: < 150mA
Minimum illumination: 0Lux(IR LED ON)
Power: DC 9-35V
Operating temperature: -20℃ to +70℃

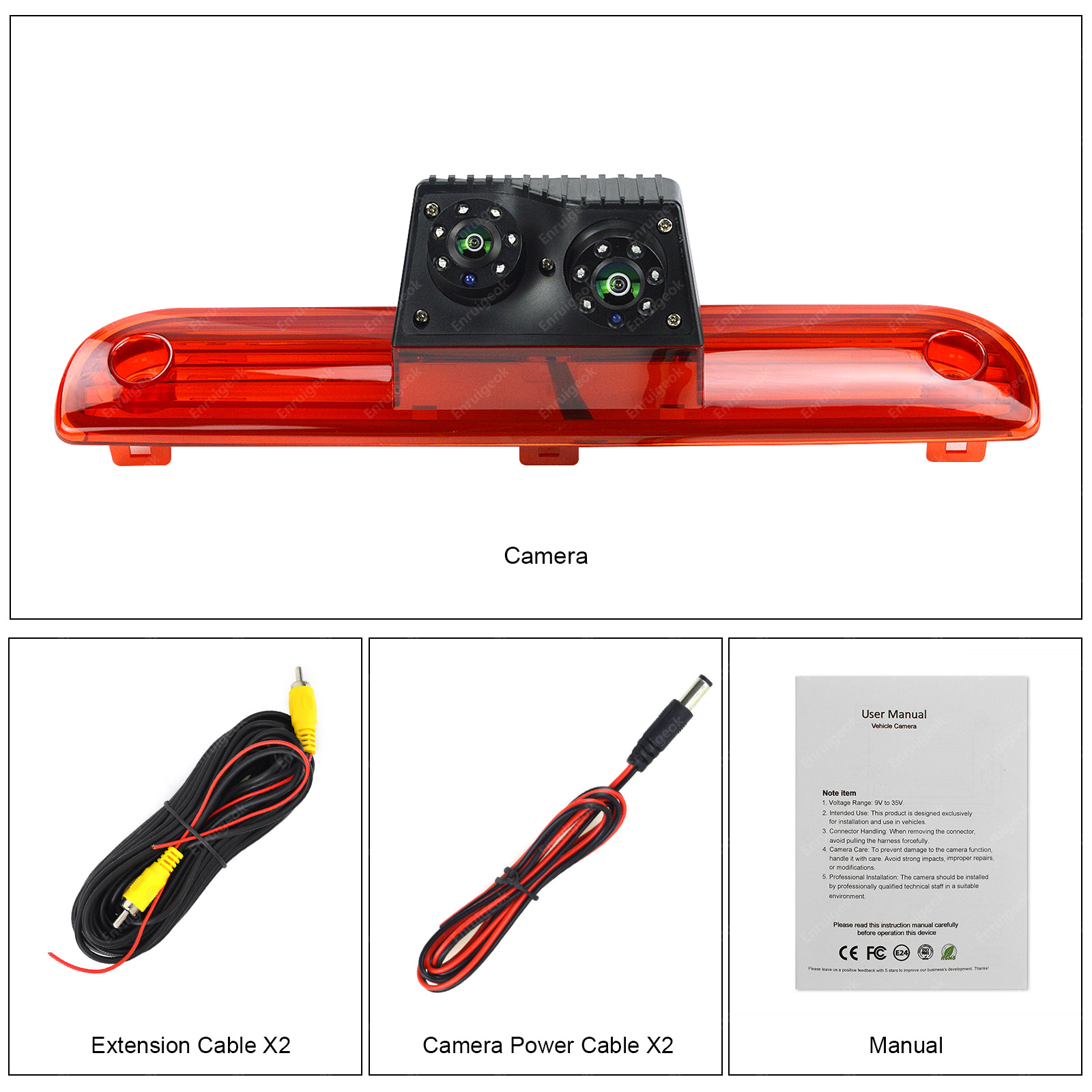

Package contents:

1 X Brake light camera
2 X 10m/33ft. video extension cable
2 X 1m DC power cable
1 X Manual
