It is suitable for installing any flat car body Dual-Lens Brake Light Camera

Product overview

ERG-S109

Brake Light Replacement Camera
This camera is a direct replacement for the original vehicle brake light. It features simple installation and a perfect factory-style fitting.
Dual Lens Design
Dual lens reversing camera with two independent viewing angles:
CH1 Upper Camera (Rear View): 90° horizontal viewing angle. The mounting angle can be adjusted via the side screws.
CH2 Lower Camera (Reversing View): 140° horizontal viewing angle. The mounting angle can be adjusted via the side screws.
Wide Voltage Range (DC 9V-35V)
Compatible with vehicle power systems with voltage fluctuations, ensuring stable and reliable performance under all working conditions.
Image Sensor & Night Vision
Equipped with a high-quality color CMOS sensor for vivid color reproduction. 8 built-in infrared LED lights around the lens deliver clear and superior night vision performance.
Horizontal Viewing Angle
Boasting a maximum 170° ultra-wide viewing angle, it captures every detail of the rear surrounding environment clearly.
Waterproof Rating
Adopted IP69 professional waterproof design, the camera is fully waterproof for all weather conditions.

Product details

Camera Compatibility:

Sunlight / Carado / Etrusco motorhomes
Replacement for Hella 2DA 343 106-201
It is suitable for installing any flat car body

Camera Specifications:

Image sensor: Colour CMOS
Effective pixel: CVBS 733(H)x493(V); AHD 1280(H)x720(V)
Resolution: CVBS 700TV Lines; AHD 720P
Night Vision distance: Approx.35ft
Waterproof rating: IP69
Viewing angle: 90°&170°
Video system: PAL/NTSC
S/N Ratio: > 48dB
Current consumption: < 150mA
Minimum illumination: 0Lux(IR LED ON)
Power: DC 9-35V
Operating temperature: -20℃ to +70℃

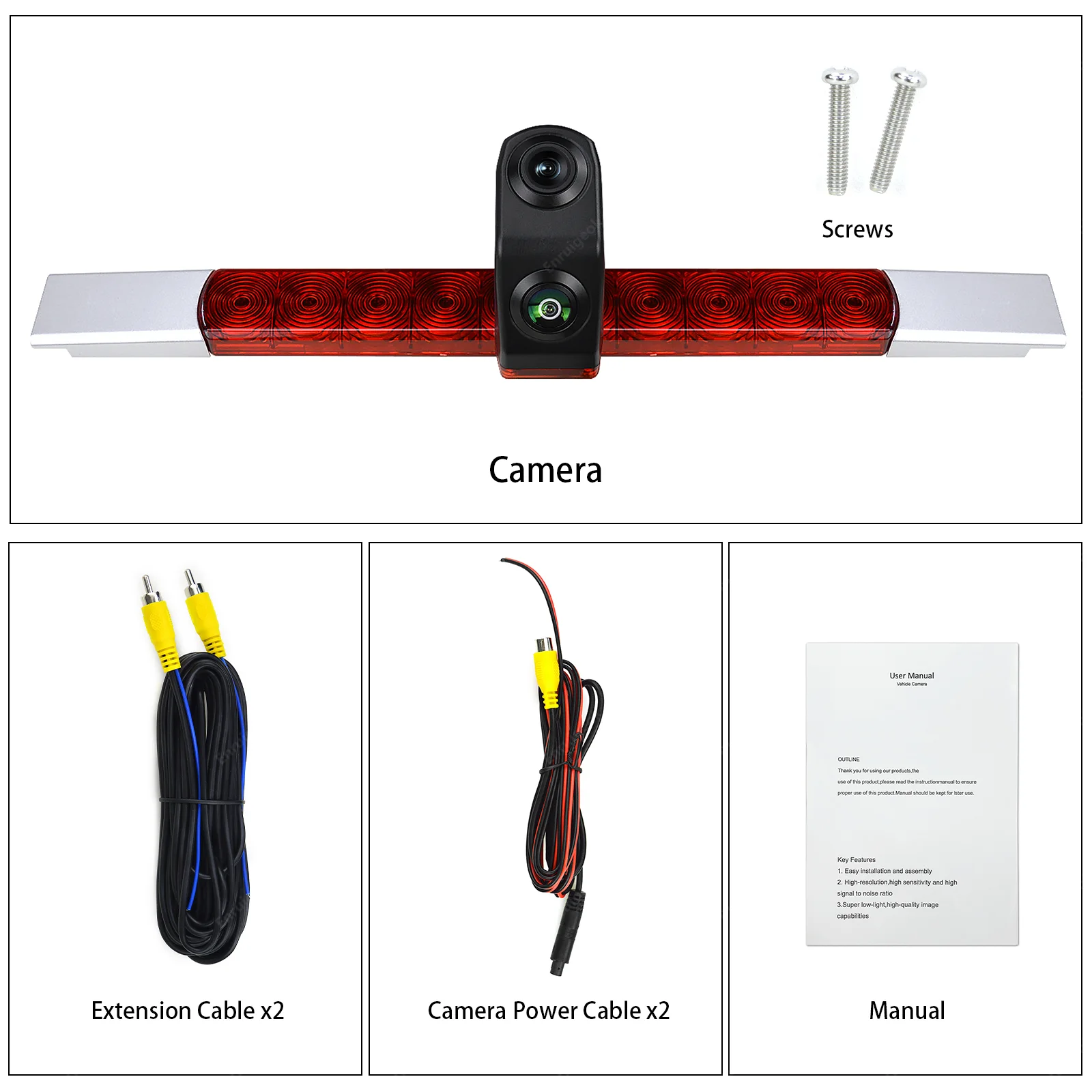

Package contents:

1 X Brake light camera
2 X 10m/33ft. video extension cable
2 X 1m DC power cable
1 X Manual
