- Image sensor
- Colour CMOS
- Resolution
- CVBS 700TV Lines; AHD 720P
- Waterproof rating
- IP69
- Viewing angle
- 90°&170°
Product highlights
Brake Light Replacement Camera This camera is a direct replacement for the original vehicle brake light. It features simple installation and a perfect factory-style fitting. Dual Lens Design Dual lens reversing camera with two independent viewing angles: CH1 Upper Camera (Rear View): 90° horizontal viewing angle. The mounting angle can be adjusted via the…
Specifications
General
- Image sensor
- Colour CMOS
- Resolution
- CVBS 700TV Lines; AHD 720P
- Waterproof rating
- IP69
- Viewing angle
- 90°&170°
- Effective pixel
- CVBS 733(H)x493(V); AHD 1280(H)x720(V)
- Night Vision distance
- Approx.35ft
Show 6 more specifications
- Video system
- PAL/NTSC
- S/N Ratio
- > 48dB
- Current consumption
- < 150mA
- Minimum illumination
- 0Lux(IR LED ON)
- Power
- DC 9-35V
- Operating temperature
- -20℃ to +70℃
Full product details
Product overview

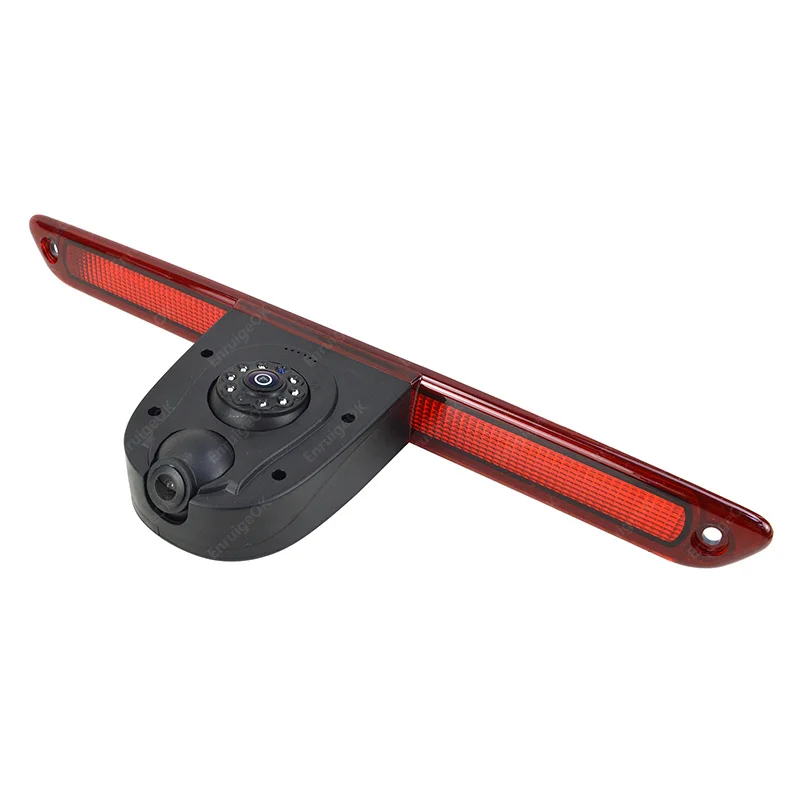

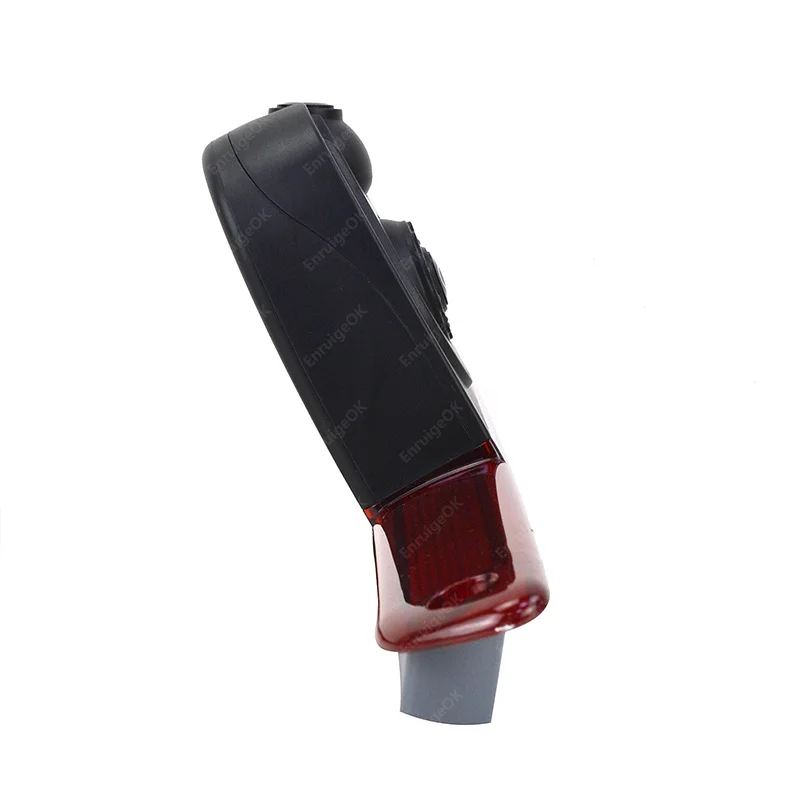

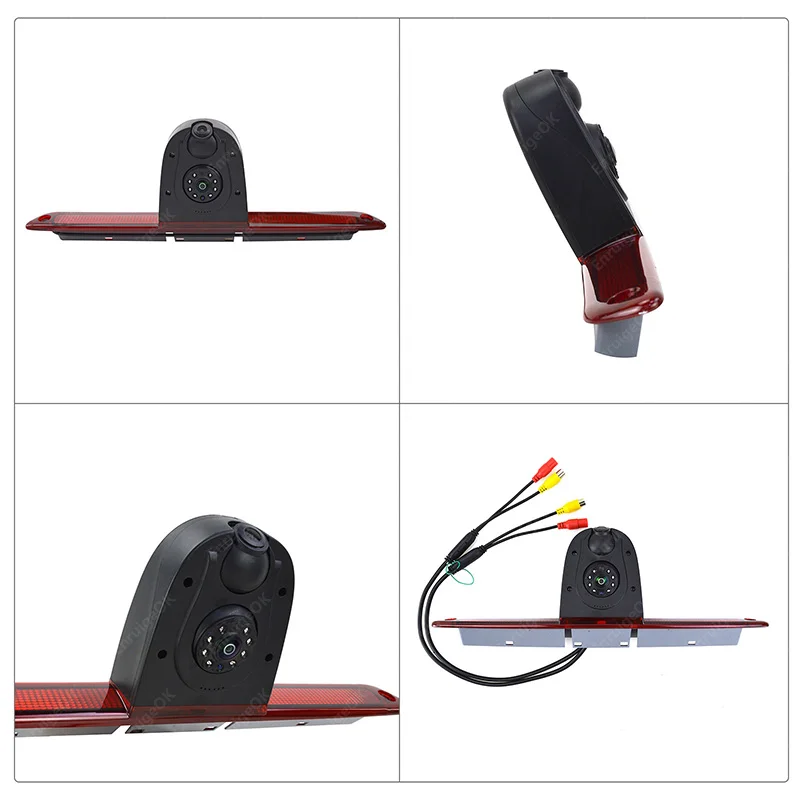

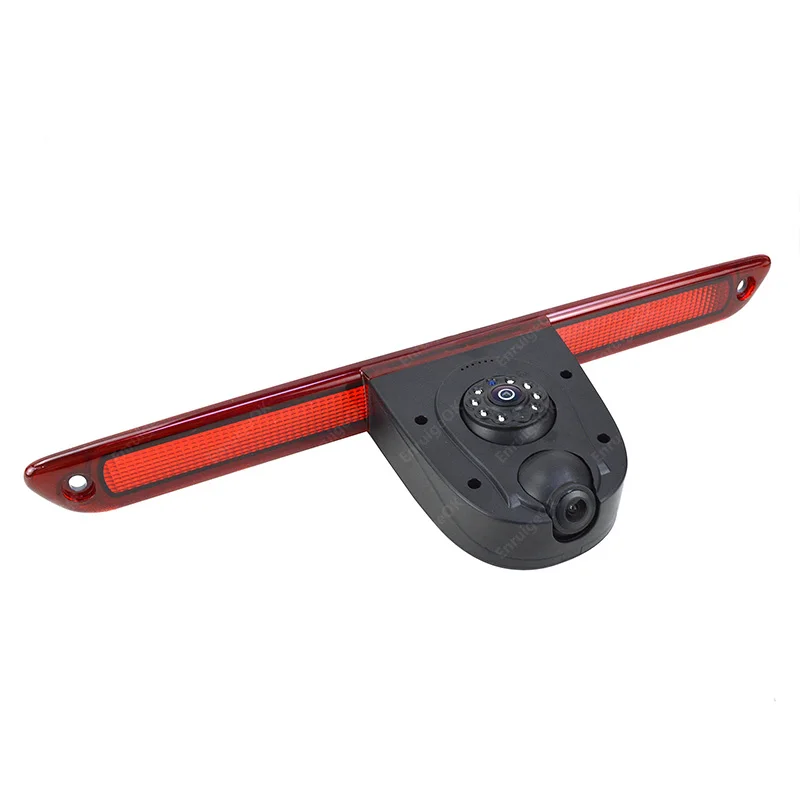

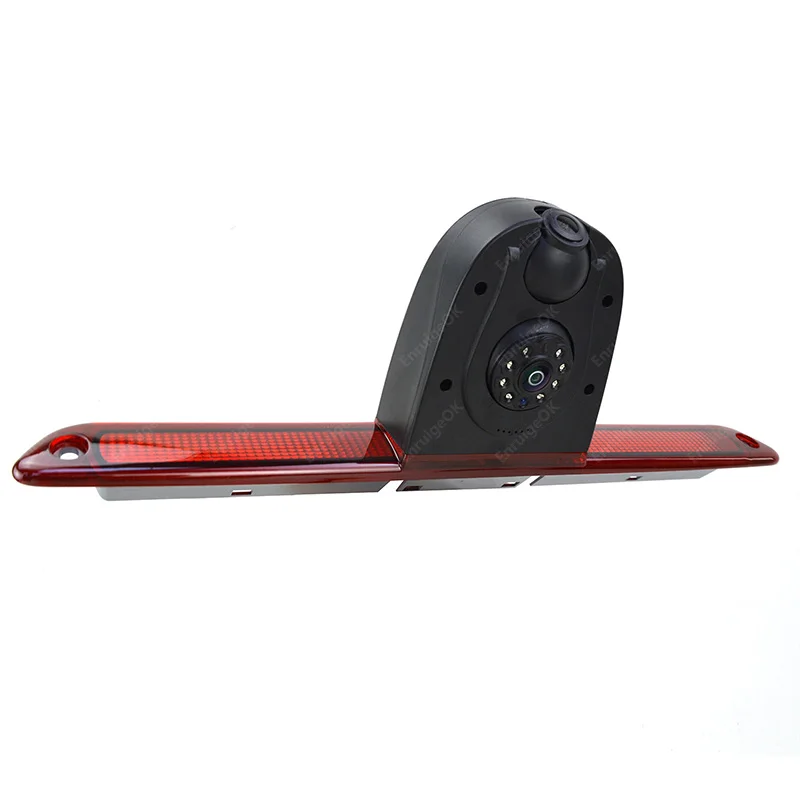

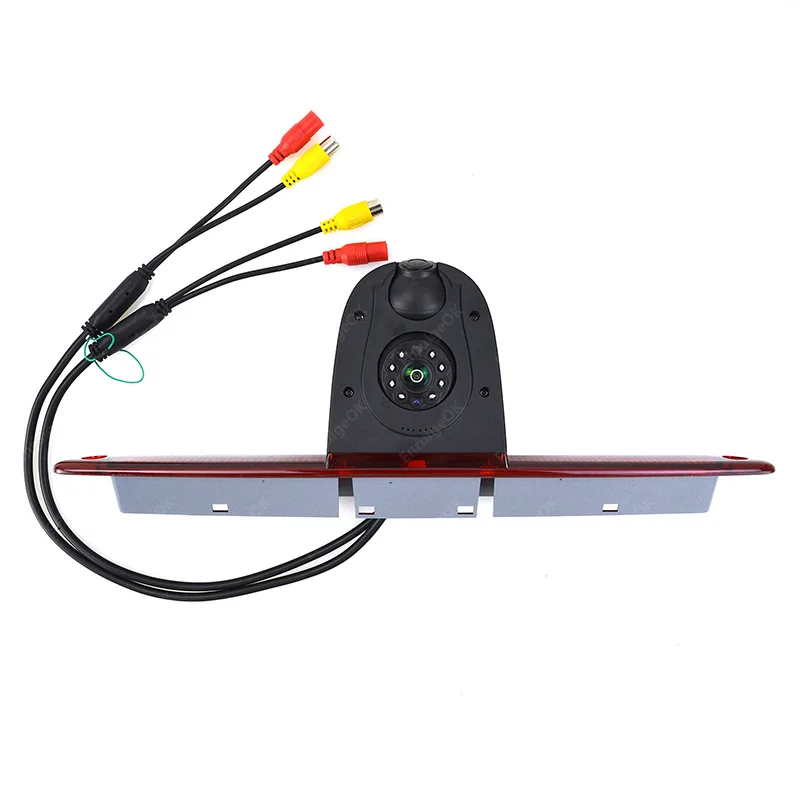

ERG-S53
Brake Light Replacement Camera
This camera is a direct replacement for the original vehicle brake light. It features simple installation and a perfect factory-style fitting.
Dual Lens Design
Dual lens reversing camera with two independent viewing angles:
CH1 Upper Camera (Rear View): 90° horizontal viewing angle. The mounting angle can be adjusted via the side screws.
CH2 Lower Camera (Reversing View): 140° horizontal viewing angle. The mounting angle can be adjusted via the side screws.
Wide Voltage Range (DC 9V-35V)
Compatible with vehicle power systems with voltage fluctuations, ensuring stable and reliable performance under all working conditions.
Image Sensor & Night Vision
Equipped with a high-quality color CMOS sensor for vivid color reproduction. 8 built-in infrared LED lights around the lens deliver clear and superior night vision performance.
Horizontal Viewing Angle
Boasting a maximum 170° ultra-wide viewing angle, it captures every detail of the rear surrounding environment clearly.
Waterproof Rating
Adopted IP69 professional waterproof design, the camera is fully waterproof for all weather conditions.
Product details
Camera Compatibility:
Mercedes Sprinter [W906 NCV3] (2006-2018)
Mercedes Sprinter [W907/W910 VS30] (2019-On)
Volkswagen Crafter [MK1 Type 2E/2F] (2006-2016)
(Fit original LED strip into housing)
Camera Specifications:
Image sensor: Colour CMOS
Effective pixel: CVBS 733(H)x493(V); AHD 1280(H)x720(V)
Resolution: CVBS 700TV Lines; AHD 720P
Night Vision distance: Approx.35ft
Waterproof rating: IP69
Viewing angle: 90°&170°
Video system: PAL/NTSC
S/N Ratio: > 48dB
Current consumption: < 150mA
Minimum illumination: 0Lux(IR LED ON)
Power: DC 9-35V
Operating temperature: -20℃ to +70℃
Package contents:
1 X Brake light camera
2 X 10m/33ft. video extension cable
2 X 1m DC power cable
1 X Manual
