ERG-S56CVBS/AHD

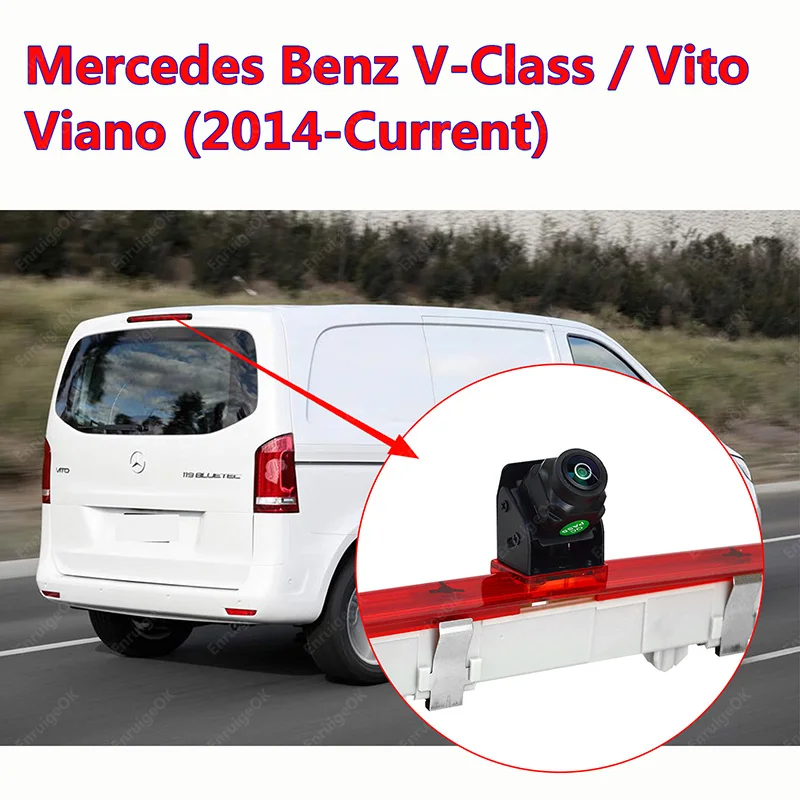

Mercedes-Benz Vito [W447] – *TAILGATE LIFT ONLY*
![Mercedes-Benz Vito [W447] – *TAILGATE LIFT ONLY*](https://cms.enruigetech.com/wp-content/uploads/2026/09/enruige-1889abfaedfd80d6a41565edcfb0f1145f1a1701aab7dec13b5639ed2be71095.webp)
- Sensor
- 1/3″ COMS
- Resolution
- CVBS NTSC: 960(H)×480(V)pixels; AHD PAL:1920(H)x720(V)
- Waterproof
- IP68
- TV Line
- 1200TV Line / AHD 720P
Product highlights
*High quality image. This Brake light camera used 1/3″ CMOS Sensor which have more color Image. *Brake Light Replacement Camera. This brake light reversing camera is designed to replace your existing brake light for an easy and factory like install. *100% Waterproof. This camera built with IP68 rating, which make it 100% waterproof. *Dustproof, shockproof,…
Specifications
General
- Sensor
- 1/3″ COMS
- Resolution
- CVBS NTSC: 960(H)×480(V)pixels; AHD PAL:1920(H)x720(V)
- Waterproof
- IP68
- TV Line
- 1200TV Line / AHD 720P
- Focus
- 1.7mm
- Min illumination
- 0Lux (LED ON)
Show 4 more specifications
- Night Vision distance
- 35ft
- View angle
- 120°
- Power voltage
- 12V
- Operation Temp
- -20℃~+70℃
Full product details
Product overview
ERG-S56CVBS/AHD
Features:
*High quality image. This Brake light camera used 1/3″ CMOS Sensor which have more color Image.

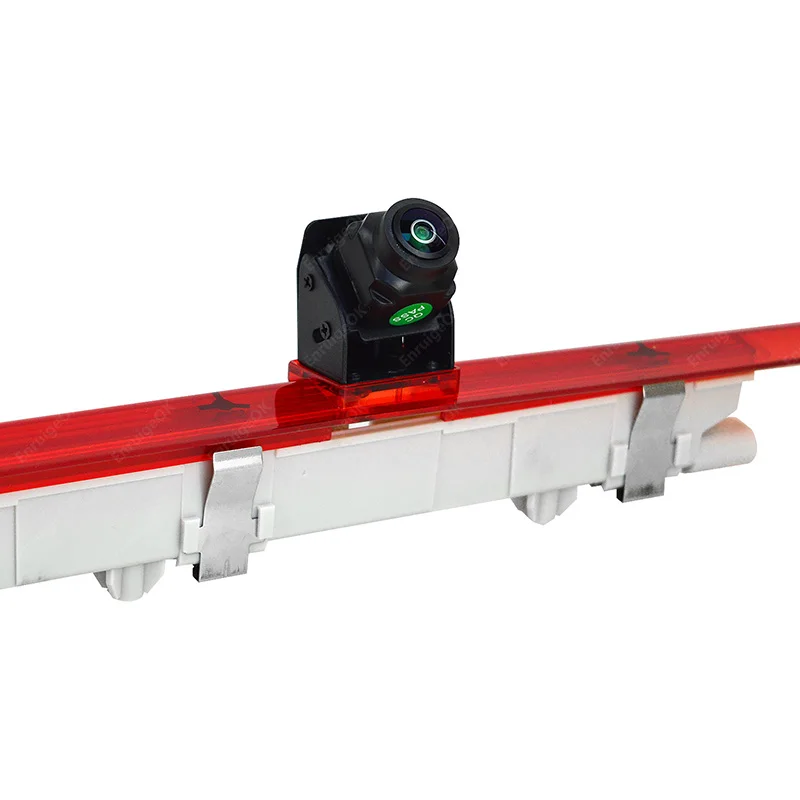

*Brake Light Replacement Camera. This brake light reversing camera is designed to replace your existing brake light for an easy and factory like install.

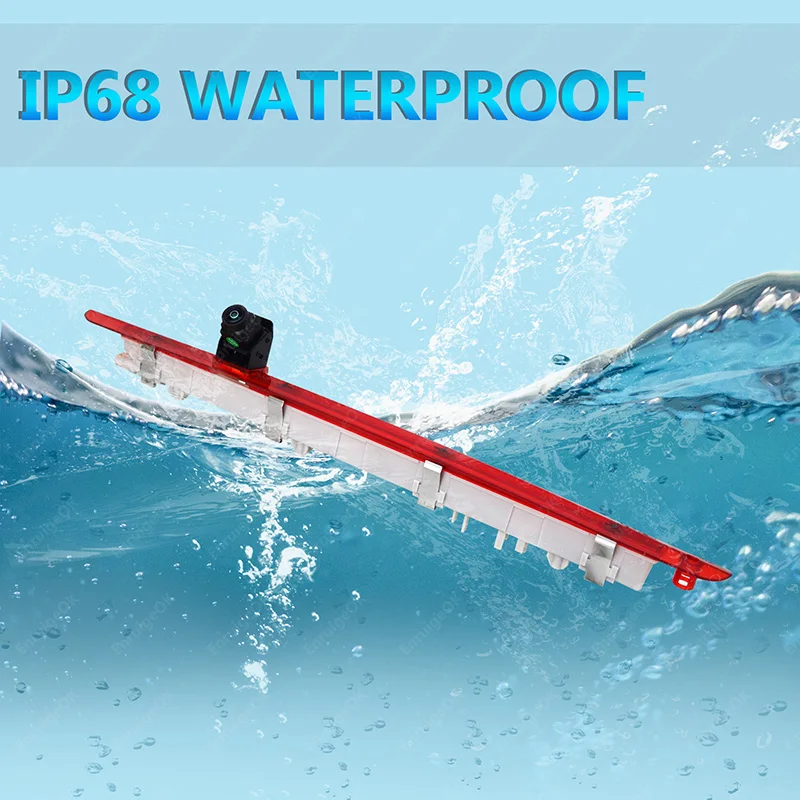

*100% Waterproof. This camera built with IP68 rating, which make it 100% waterproof.
*Dustproof, shockproof, anti-shake.
Product details
Specifications:
Sensor: 1/3″ COMS
Resolution: CVBS NTSC: 960(H)×480(V)pixels; AHD PAL:1920(H)x720(V)
TV Line: 1200TV Line / AHD 720P
Focus: 1.7mm
Min illumination: 0Lux (LED ON)
Night Vision distance: 35ft
Waterproof: IP68
View angle: 120°
Power voltage: 12V
Operation Temp: -20℃~+70℃
Package content:
1×Reversing camera
1×10 meters extension cable
1×Power cable
1×Manual
