- Image sensor
- 1/3 “CMOS
- Resolution
- 1080P
- Waterproof rating
- IP68
- Viewing angle
- 120°
Product highlights
*High quality and high performance Manufactured from high quality materials, meets or exceeds OEM standards and very stable. *Safe parking Rear Park backup camera through the 120° wide-angle camera device, the obstacle behind the car is clearly visible. *Easy installation This reverse parking camera will fit exactly like the OEM, you can connect the…
Specifications
AHD Camera
- Image sensor
- 1/3 “CMOS
- Resolution
- 1080P
- Waterproof rating
- IP68
- Viewing angle
- 120°
- TV system
- PAL/NTSC
- Power supply
- DC12V
Show 11 more specifications
- Effective pixel
- 1920(H)x1080(V)
- Horizontal sync frequency
- 15.625KHZ
- Scanning system
- 2:1 interface
- Sync system
- Internal
- ACG
- Auto
- BLC
- Auto
- S/N Ratio
- > 48dB
- Current consumption
- < 150mA
- Minimum illumination
- 0.1-0.5Lux / F = 1.2
- Power
- 5W
- Operating temperature
- -20℃ to +70℃
CVBS 700TVL Camera
- Image sensor
- 1/3 “CMOS
- Resolution
- 700TV Lines
- Waterproof rating
- IP68
- Viewing angle
- 120°
- TV system
- PAL/NTSC
- Power supply
- DC12V
Show 11 more specifications
- Effective pixel
- 733(H)x493(V)
- Horizontal sync frequency
- 15.625KHZ
- Scanning system
- 2:1 interface
- Sync system
- Internal
- ACG
- Auto
- BLC
- Auto
- S/N Ratio
- > 48dB
- Current consumption
- < 150mA
- Minimum illumination
- 0.1-0.5Lux / F = 1.2
- Power
- 5W
- Operating temperature
- -20℃ to +70℃
Full product details
Product overview

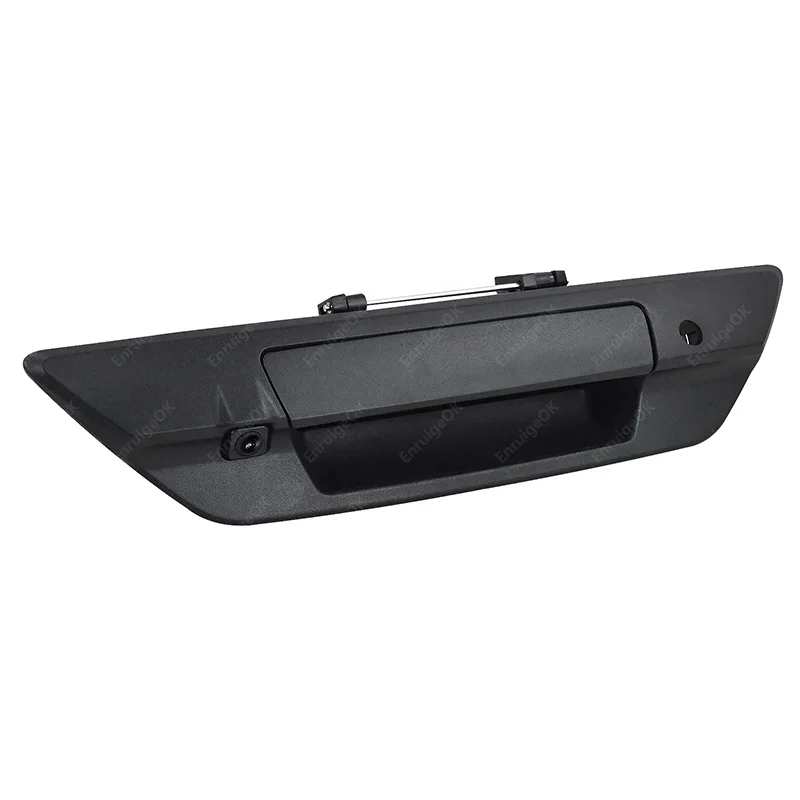

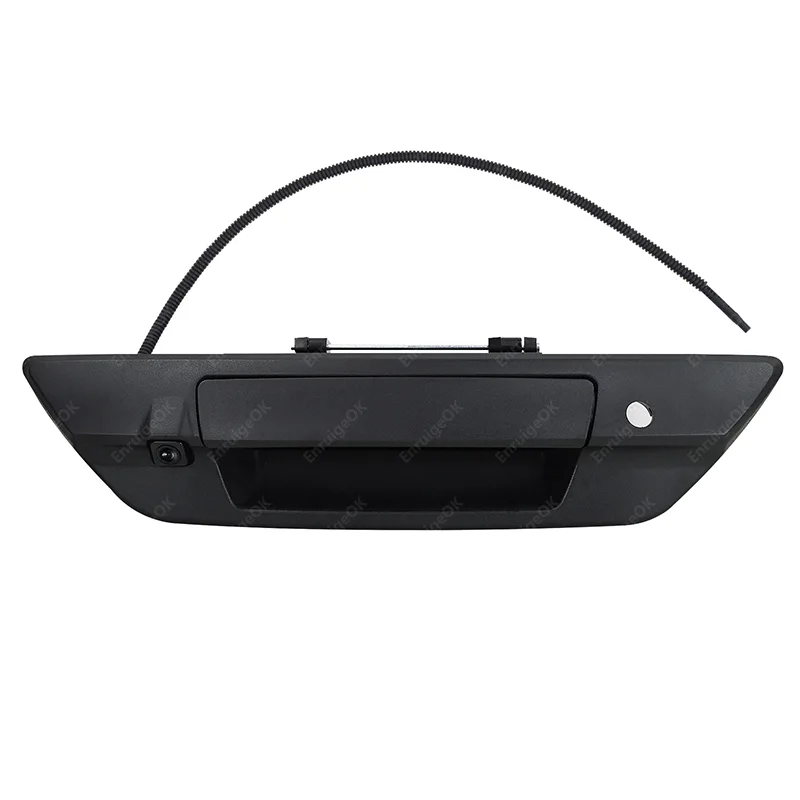

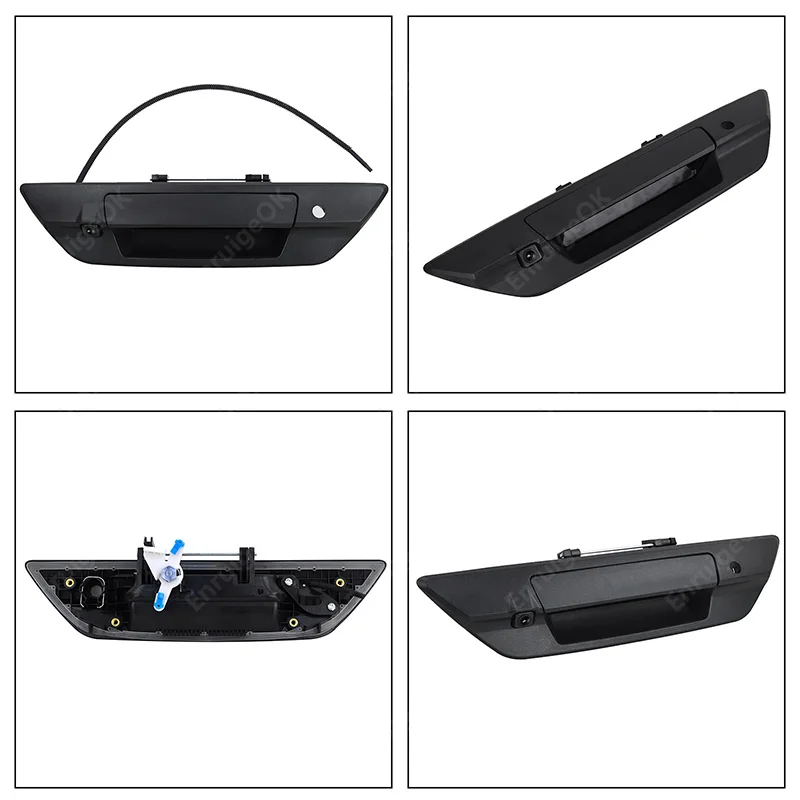

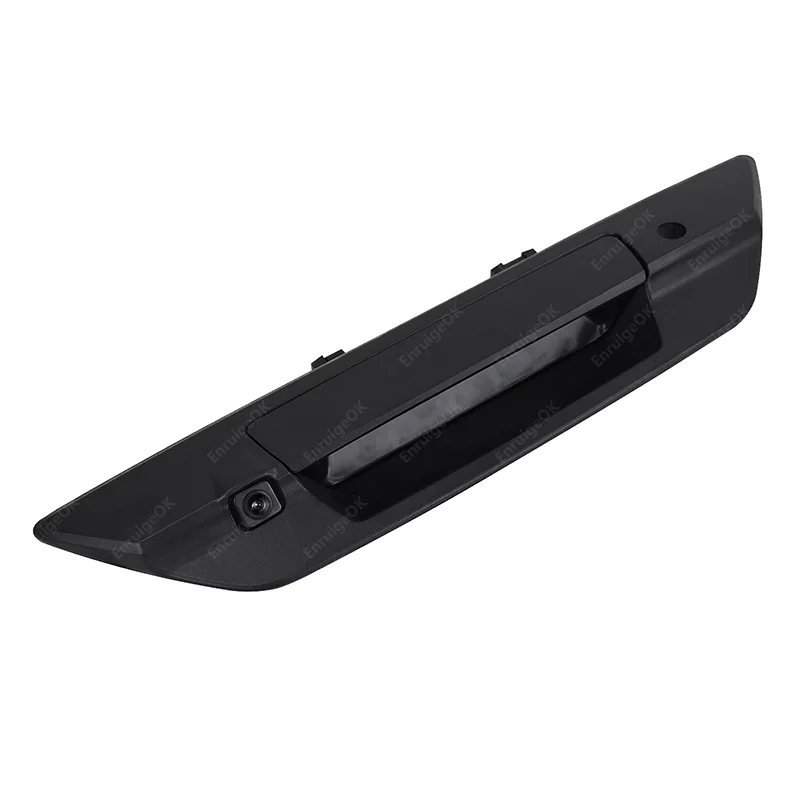

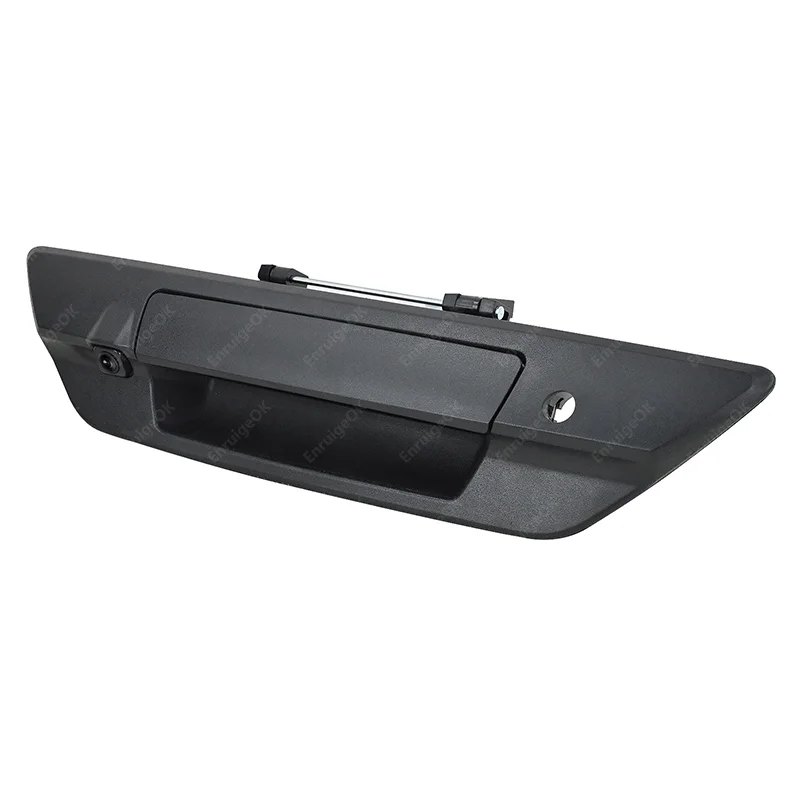

ERG-S84AHD/CVBS
*High quality and high performance
Manufactured from high quality materials, meets or exceeds OEM standards and very stable.
*Safe parking
Rear Park backup camera through the 120° wide-angle camera device, the obstacle behind the car is clearly visible.
*Easy installation
This reverse parking camera will fit exactly like the OEM, you can connect the camera’s power to reverse light, then connect the rearview camera to your radio screen or monitor by universal monitors (RCA) cable with Hi-definition color pictures, sensitive real-time and continuous.

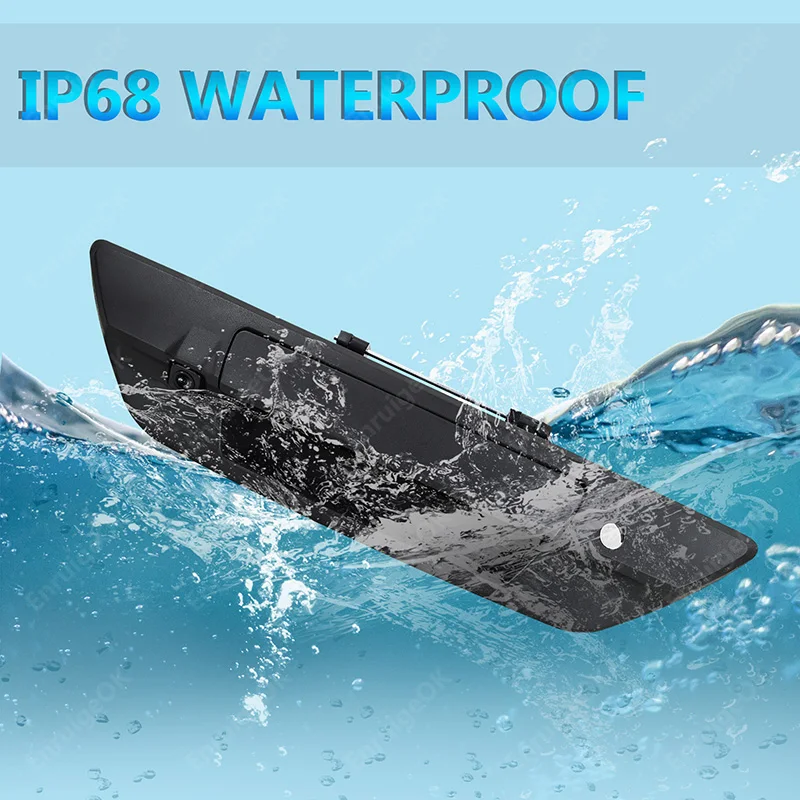

*IP68 waterproof
The backup camera is made of high purity with international standard IP68 waterproof. And our tailgate handle is crafted from reinforced PC material and surface-treated to create a durable surface.
*Anti-interference
The video extension cable is equipped with a tube sleeve and copper core wire.Double-shielded cable makes the rear camera with stable transmission, anti-interference, and anti-oxidation.
Product details
AHD Camera:
– Image sensor: 1/3 “CMOS
– TV system: PAL/NTSC
– Waterproof rating: IP68
– Viewing angle: 120°
– Effective pixel: 1920(H)x1080(V)
– Horizontal sync frequency: 15.625KHZ
– Scanning system: 2:1 interface
– Sync system: Internal
– ACG: Auto
– BLC: Auto
– Resolution: 1080P
– S/N Ratio: > 48dB
– Current consumption: < 150mA
– Minimum illumination: 0.1-0.5Lux / F = 1.2
– Power supply: DC12V
– Power: 5W
– Operating temperature: -20℃ to +70℃
CVBS 700TVL Camera:
– Image sensor: 1/3 “CMOS
– TV system: PAL/NTSC
– Waterproof rating: IP68
– Viewing angle: 120°
– Effective pixel: 733(H)x493(V)
– Horizontal sync frequency: 15.625KHZ
– Scanning system: 2:1 interface
– Sync system: Internal
– ACG: Auto
– BLC: Auto
– Resolution: 700TV Lines
– S/N Ratio: > 48dB
– Current consumption: < 150mA
– Minimum illumination: 0.1-0.5Lux / F = 1.2
– Power supply: DC12V
– Power: 5W
– Operating temperature: -20℃ to +70℃

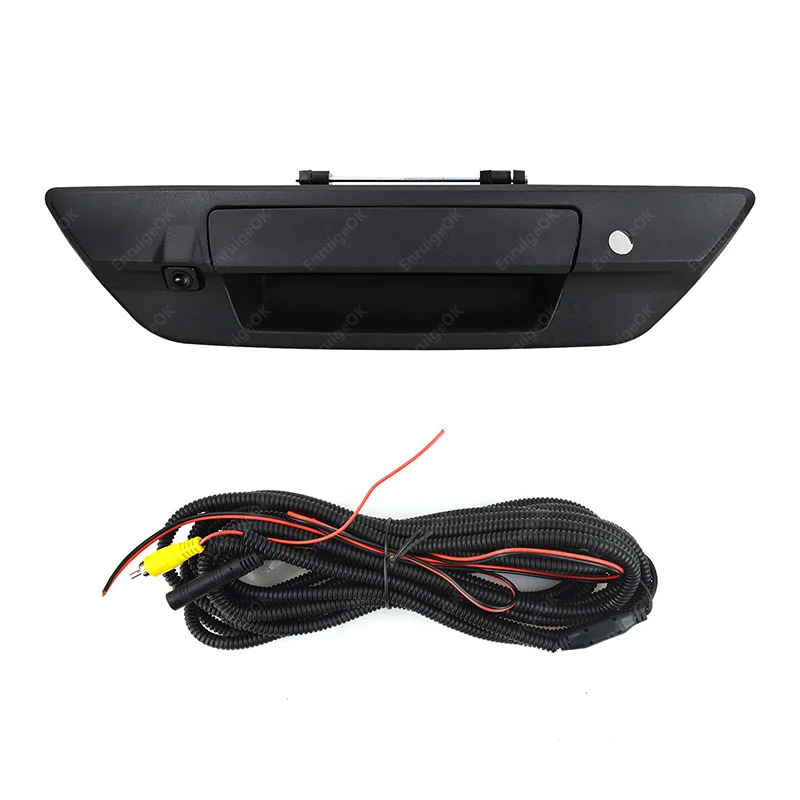

Package Includes:

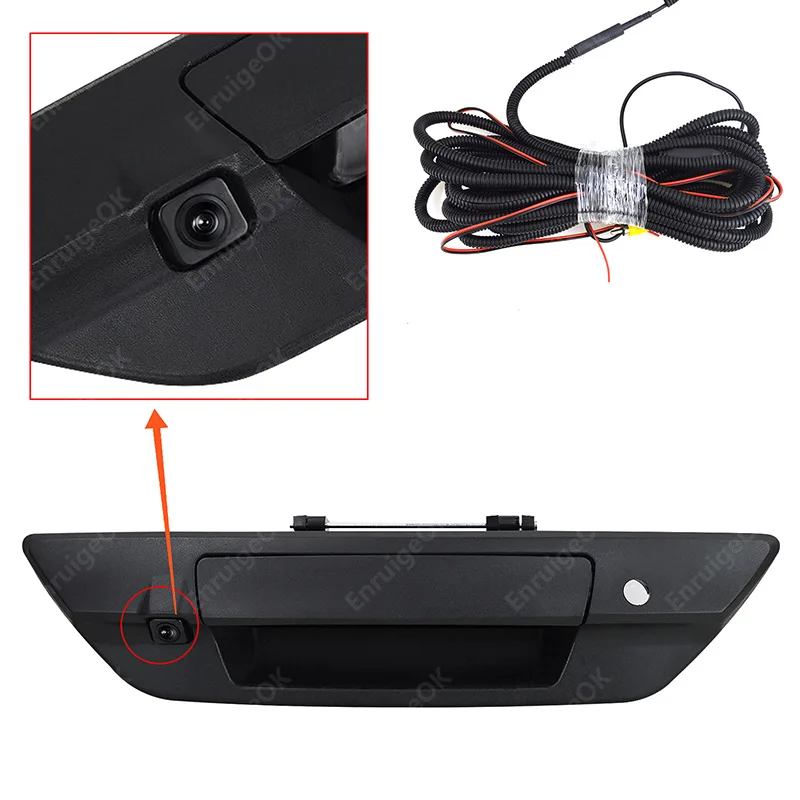

1x Tailgate Reverse Camera
1x 8m Extension Cable
1x Manual
