- Image sensor
- 1/3″ CMOS
- Waterproof rating
- IP68
- Viewing angle
- 120°
- Lens
- 2.8mm
Product highlights
Brake Light Replacement Camera: This camera is designed to replace your existing brake light, providing an easy and factory-like installation. * This brake light camera uses a 1/3″ CMOS sensor with enhanced color imaging. The camera features 6 infrared lights around the lens to ensure excellent night vision. * With a 120-degree viewing angle, this…
Specifications
General
- Image sensor
- 1/3″ CMOS
- Waterproof rating
- IP68
- Viewing angle
- 120°
- Lens
- 2.8mm
- Effective pixel
- 733(H)x493(V)
- TV Line
- 700TV Lines
Show 7 more specifications
- Night Vision distance
- Approx.35ft
- Video system
- PAL/NTSC
- S/N Ratio
- > 48dB
- Current consumption
- < 150mA
- Minimum illumination
- 0.1Lux
- Power
- DC12V
- Operating temperature
- -20℃ to +70℃
Full product details
Product overview
ERG-S59

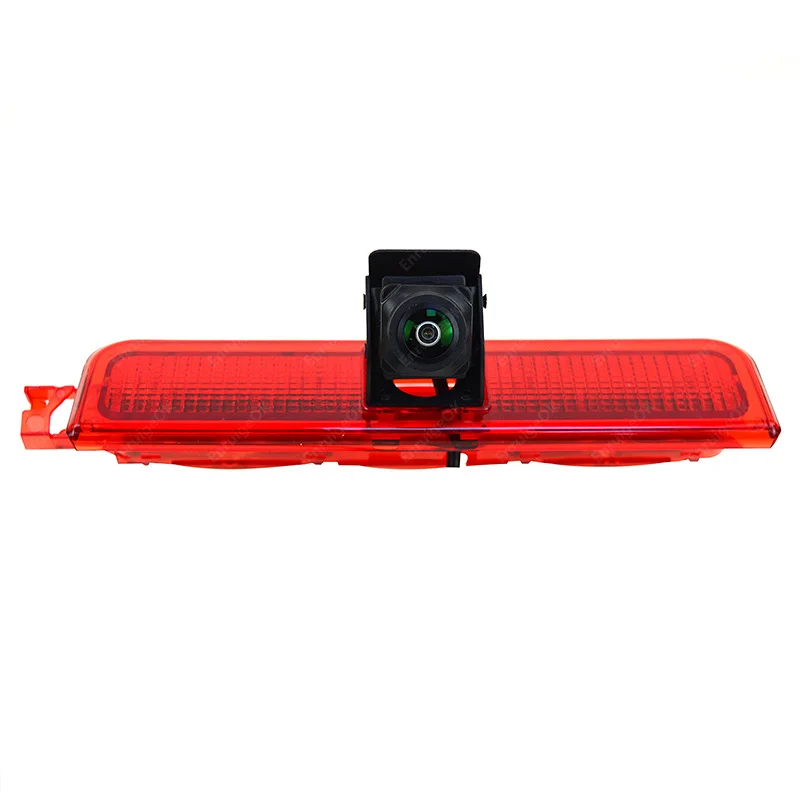

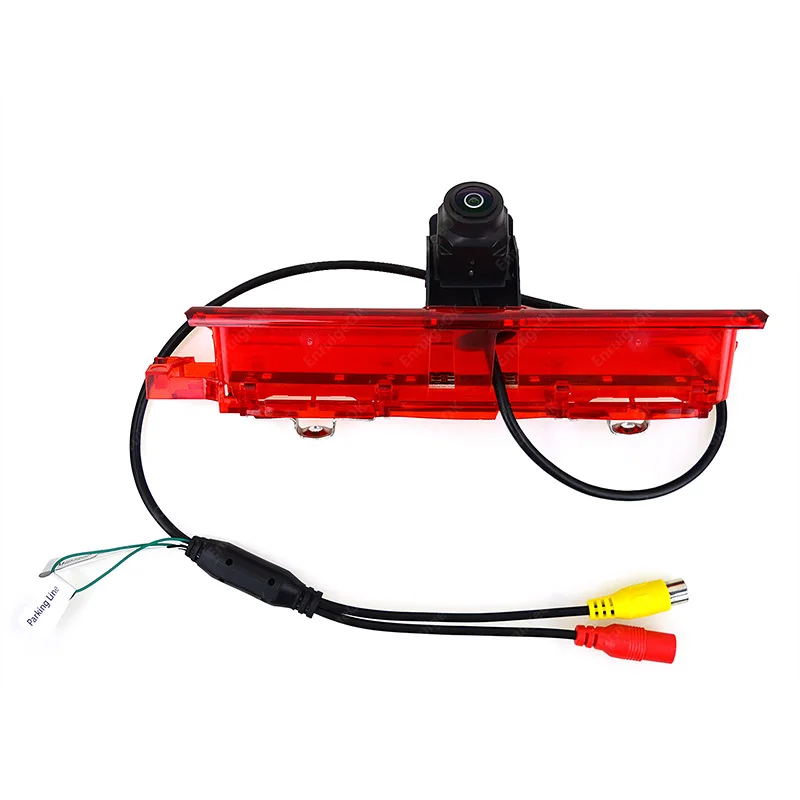

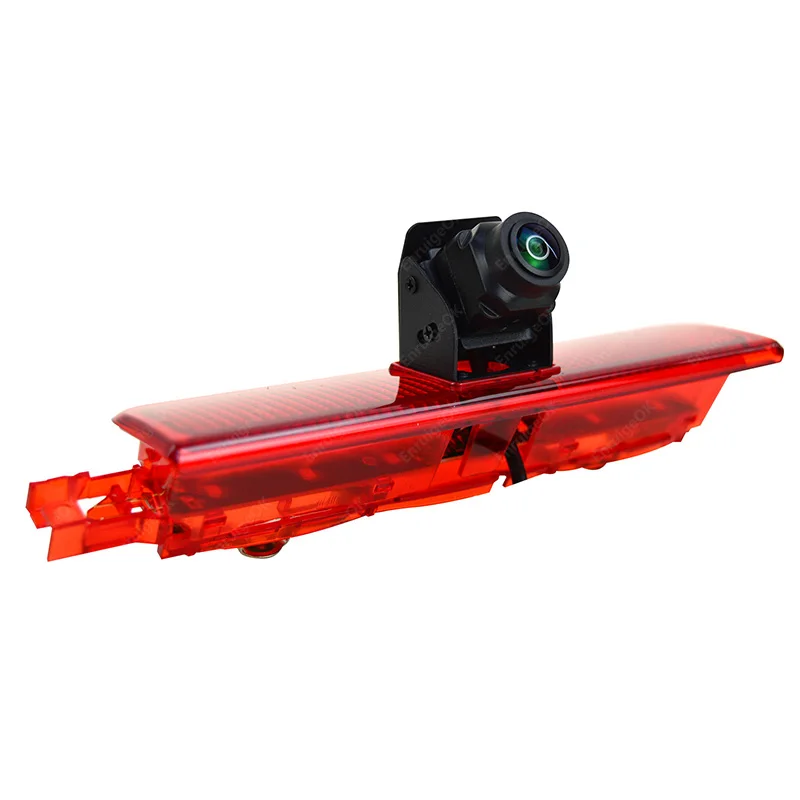

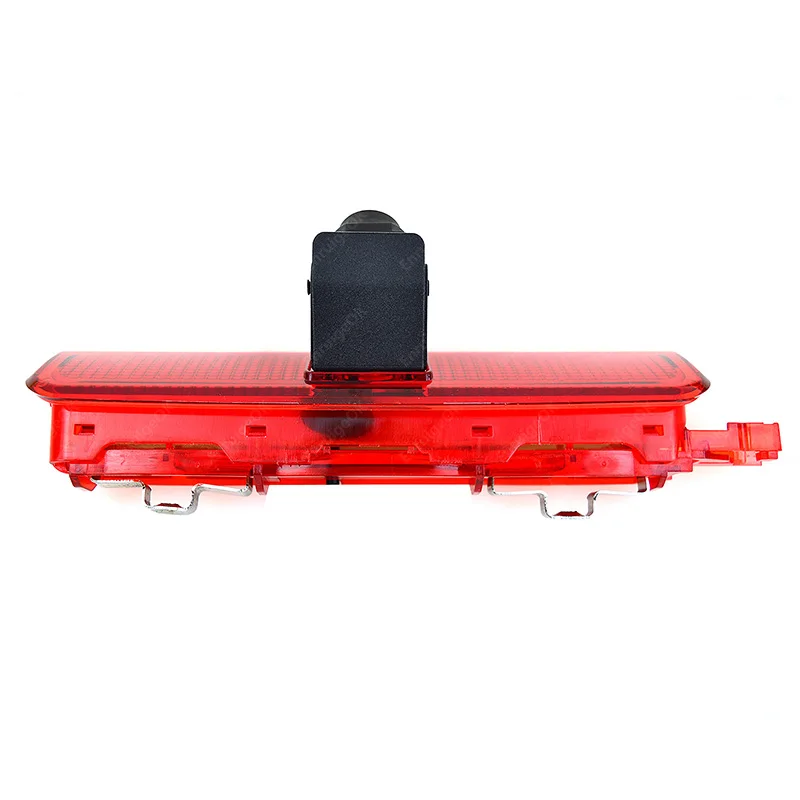

Brake Light Replacement Camera: This camera is designed to replace your existing brake light, providing an easy and factory-like installation.
* This brake light camera uses a 1/3″ CMOS sensor with enhanced color imaging. The camera features 6 infrared lights around the lens to ensure excellent night vision.
* With a 120-degree viewing angle, this reversing camera provides detailed information about the environment behind your car.
* 100% Waterproof: Built with an IP68 rating, this camera is fully waterproof.
Product details
Camera Compatibility:
VW Caddy (3rd Gen Pre-Facelift) (2003 – 2009)
VW Caddy (3rd Gen Facelift 1.0) (2010 – 2015)
VW Caddy (2003-2020)—-Barn Door
VW Caddy (2003-2015)—-Tailgate Models
Camera Specifications:
Image sensor: 1/3″ CMOS
Lens: 2.8mm
Effective pixel: 733(H)x493(V)
TV Line: 700TV Lines
Night Vision distance: Approx.35ft
Waterproof rating: IP68
Viewing angle: 120°
Video system: PAL/NTSC
S/N Ratio: > 48dB
Current consumption: < 150mA
Minimum illumination: 0.1Lux
Power: DC12V
Operating temperature: -20℃ to +70℃

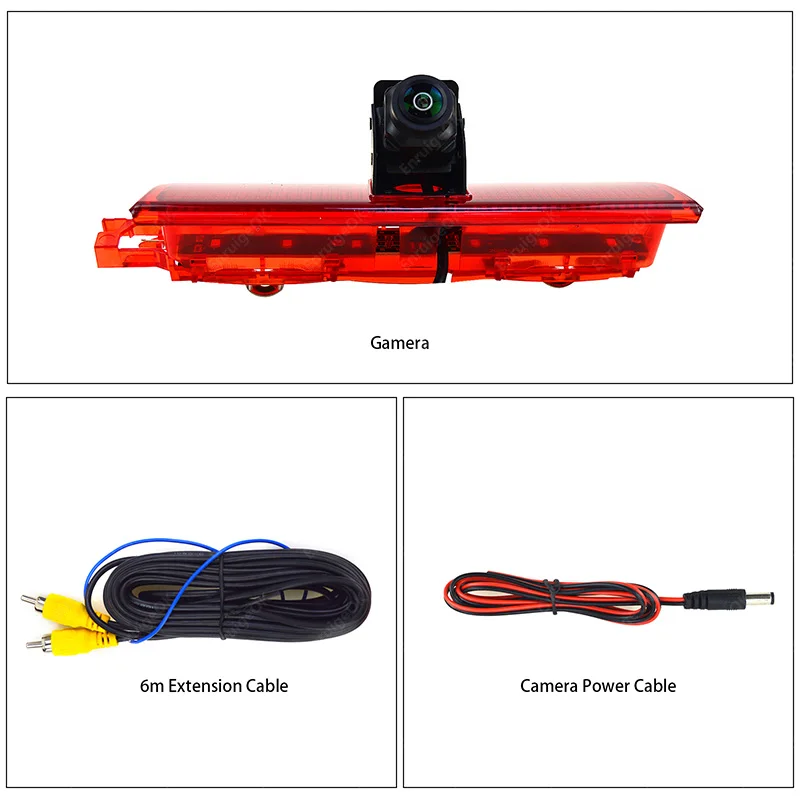

Package contents:
1 X Brake light camera
1 X 10m/33ft. video extension cable
1 X 1m DC power cable
1 X Manual
