- Screen size
- 7-inch IPS
- Monitor resolution
- 800 × 480
- Camera resolution
- 1920 × 1080 / AHD 1080P
- Viewing angle
- 120°
Baby car camera kit with a 7-inch IPS monitor, 1080P camera, eight infrared LEDs, 120° viewing angle and adjustable headrest camera mounting.
Specifications
General
- Screen size
- 7-inch IPS
- Monitor resolution
- 800 × 480
- Camera resolution
- 1920 × 1080 / AHD 1080P
- Viewing angle
- 120°
- Night vision
- 8 infrared LEDs
- Included cameras
- 1
Monitor
- Aspect ratio
- 16:9
- Input voltage
- DC 12–24V
- Power consumption
- Below 5W
Camera
- Power supply
- DC 12V
- Minimum illumination
- 0 lux with infrared on
- Waterproof rating
- IP68
Environment
- Operating temperature
- -20°C to +70°C
- Storage temperature
- -40°C to +80°C
Full product details
Product overview

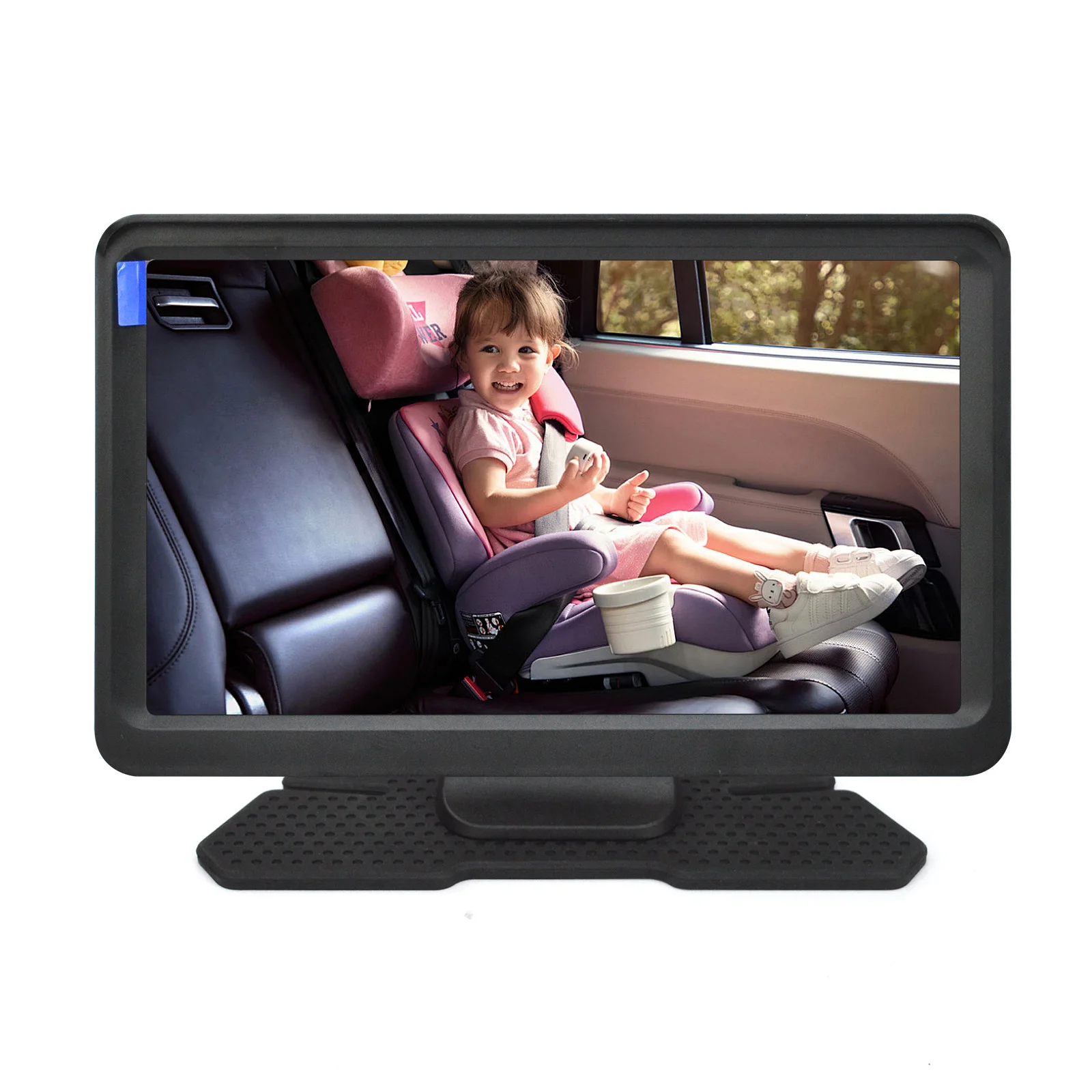

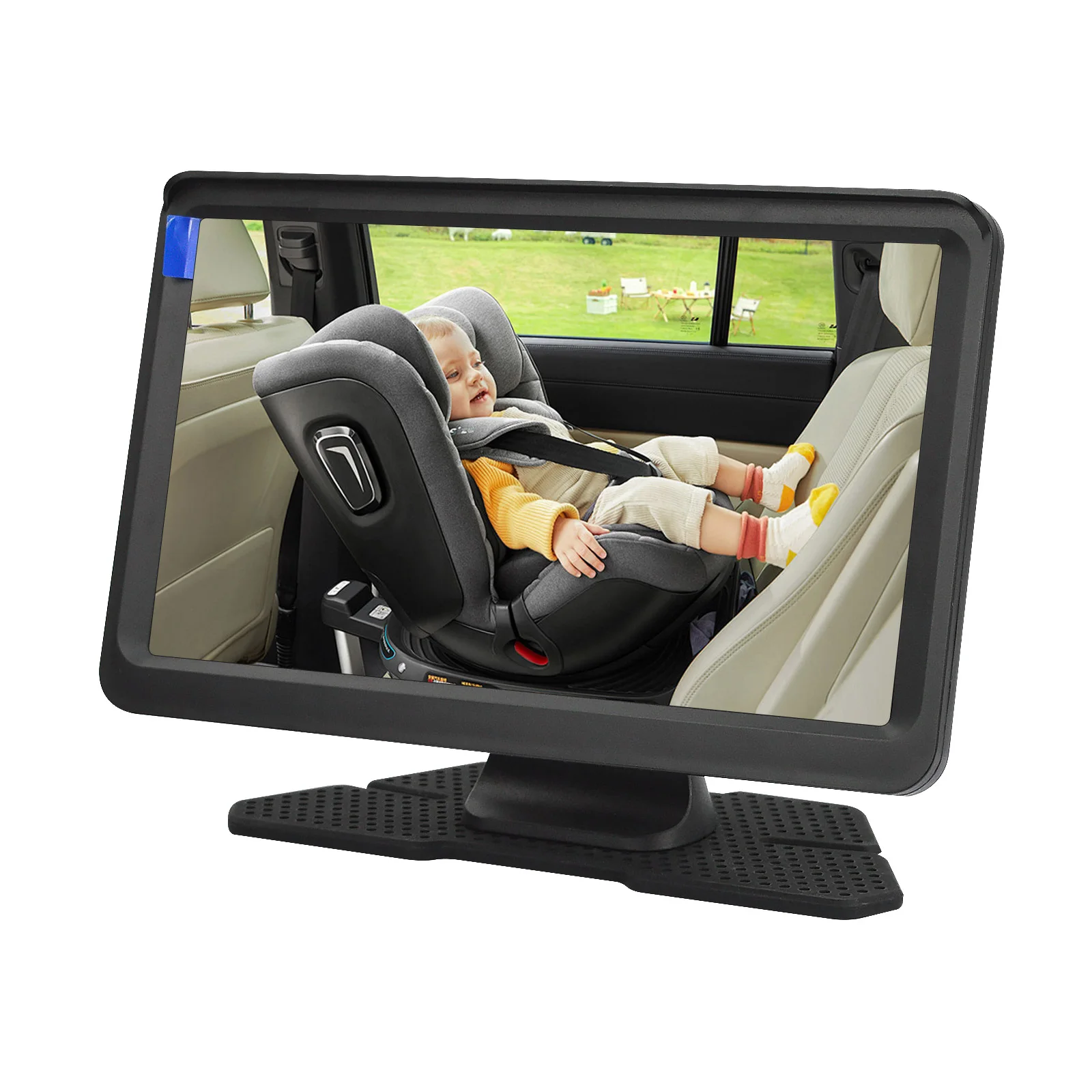

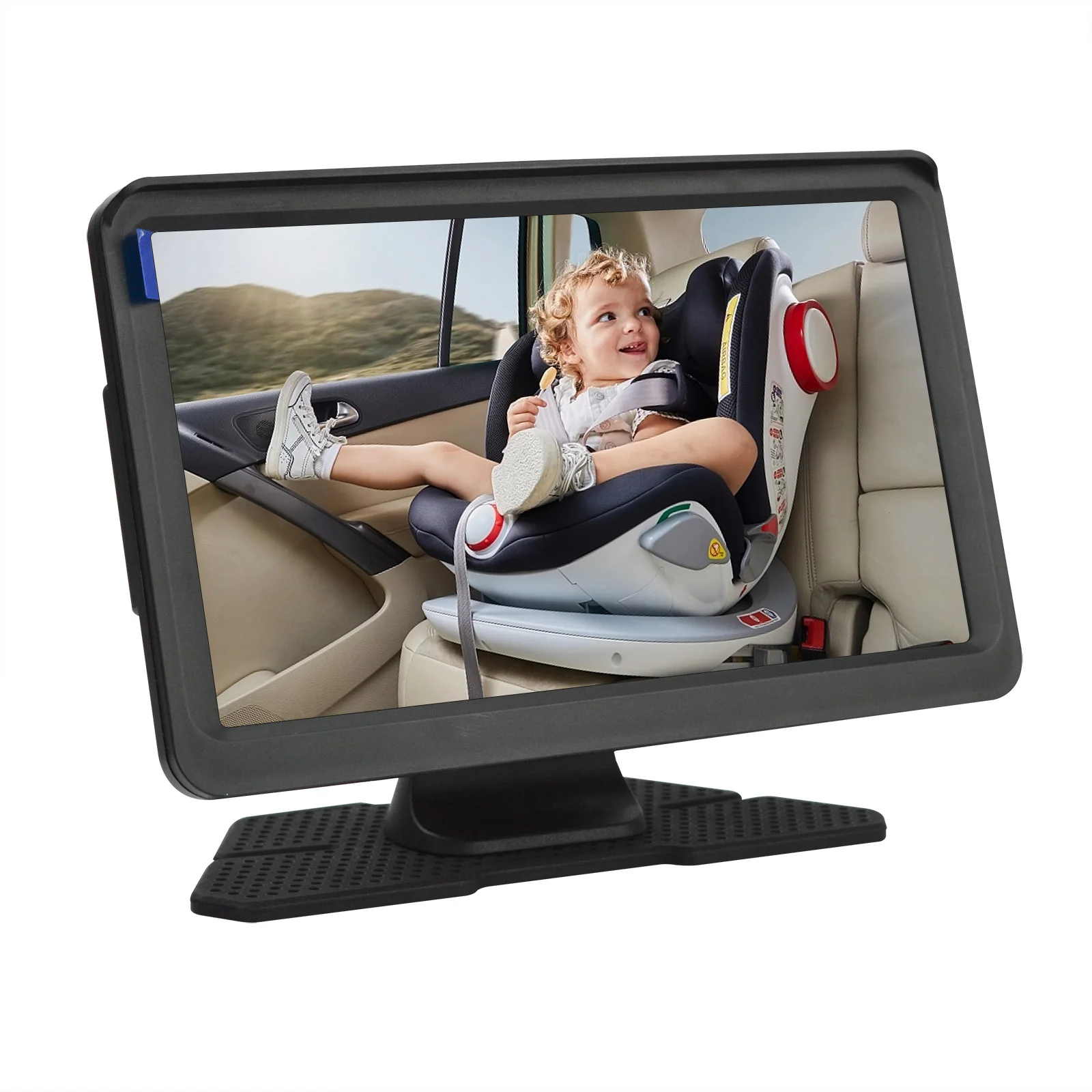

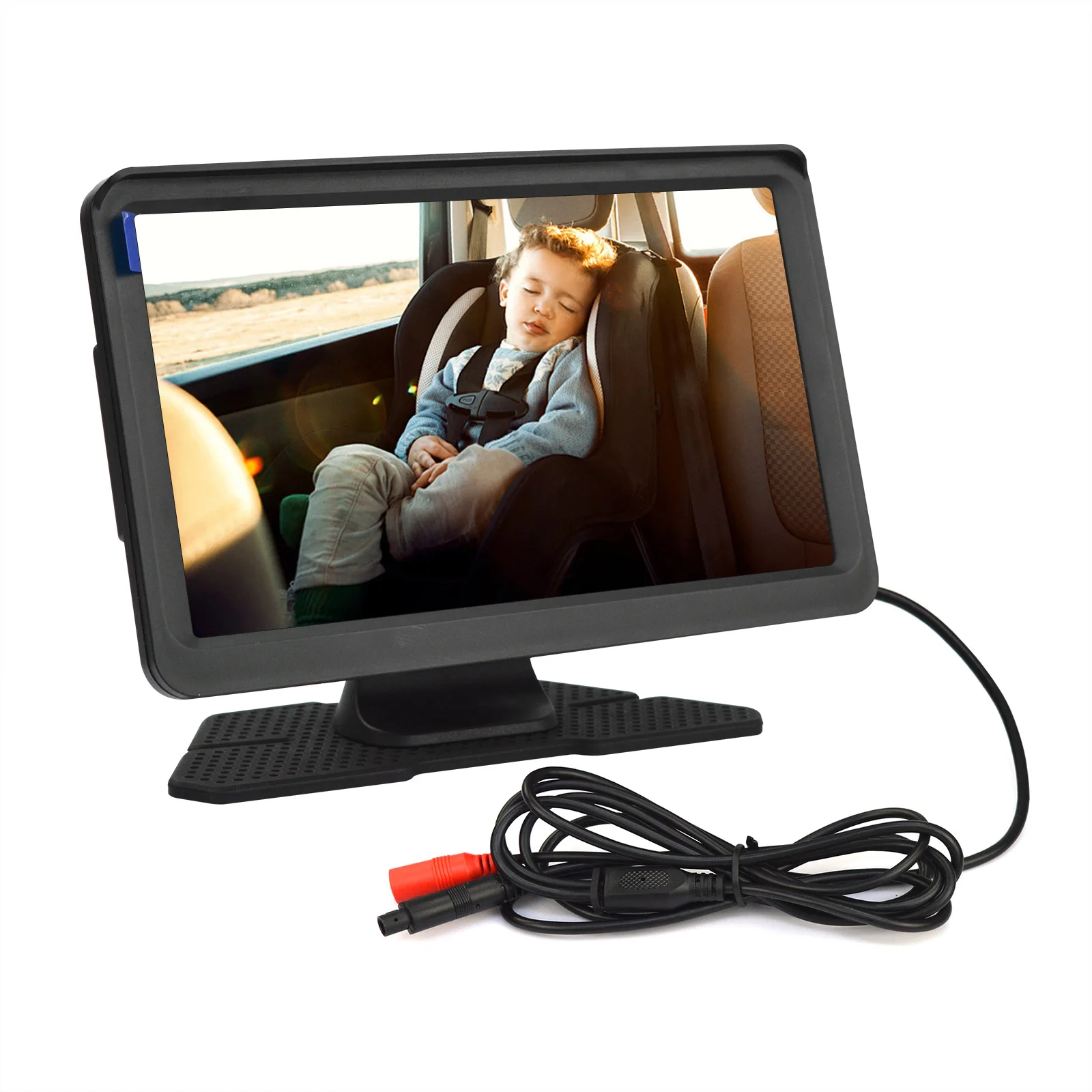

ERG-5694 combines a headrest-mounted baby car camera with a 7-inch IPS monitor for viewing the rear seat. The camera provides a 1080P image source, while the monitor has an 800 × 480 IPS display. Infrared night vision supports viewing in low-light conditions.
Product details

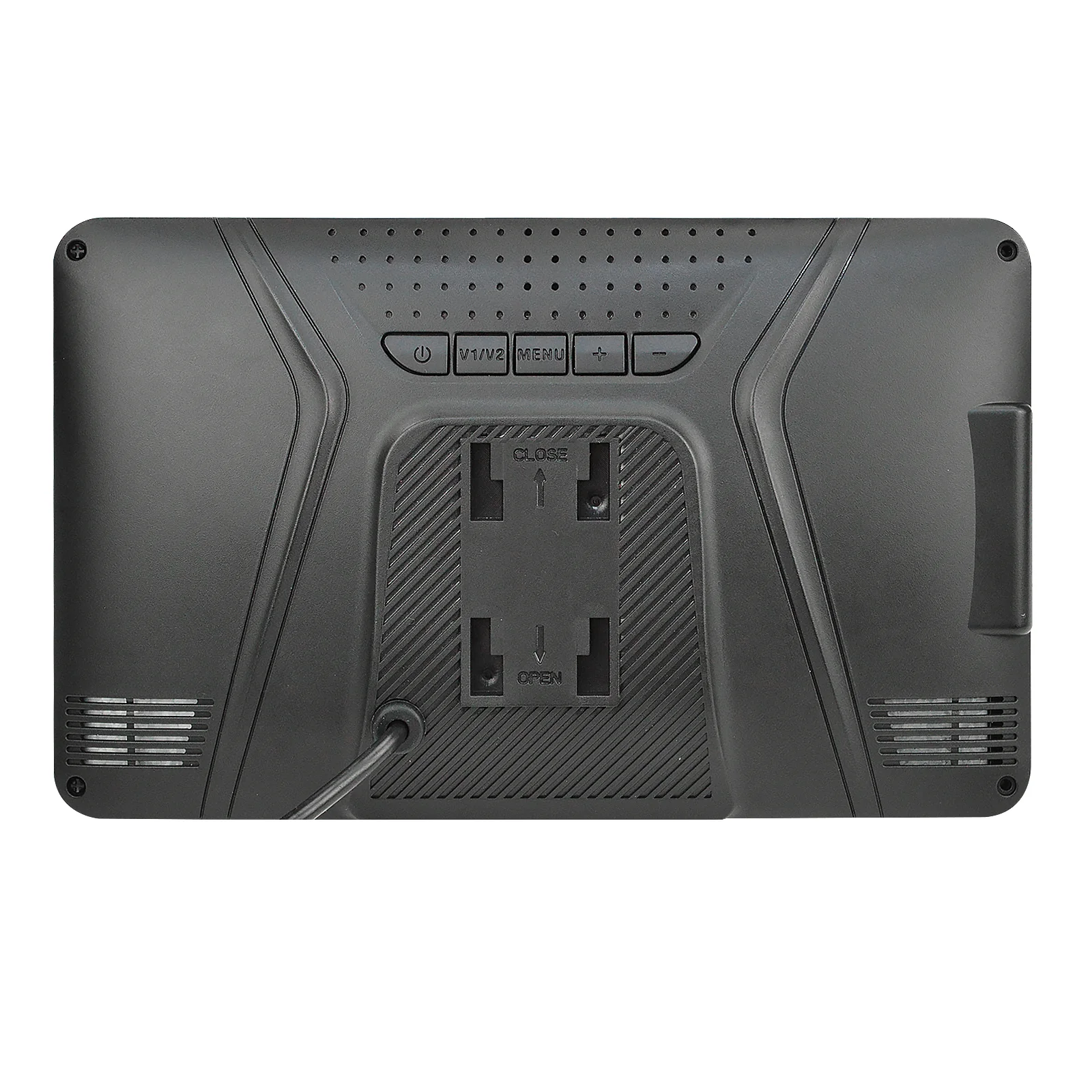

- 7-inch IPS display with a 16:9 aspect ratio.

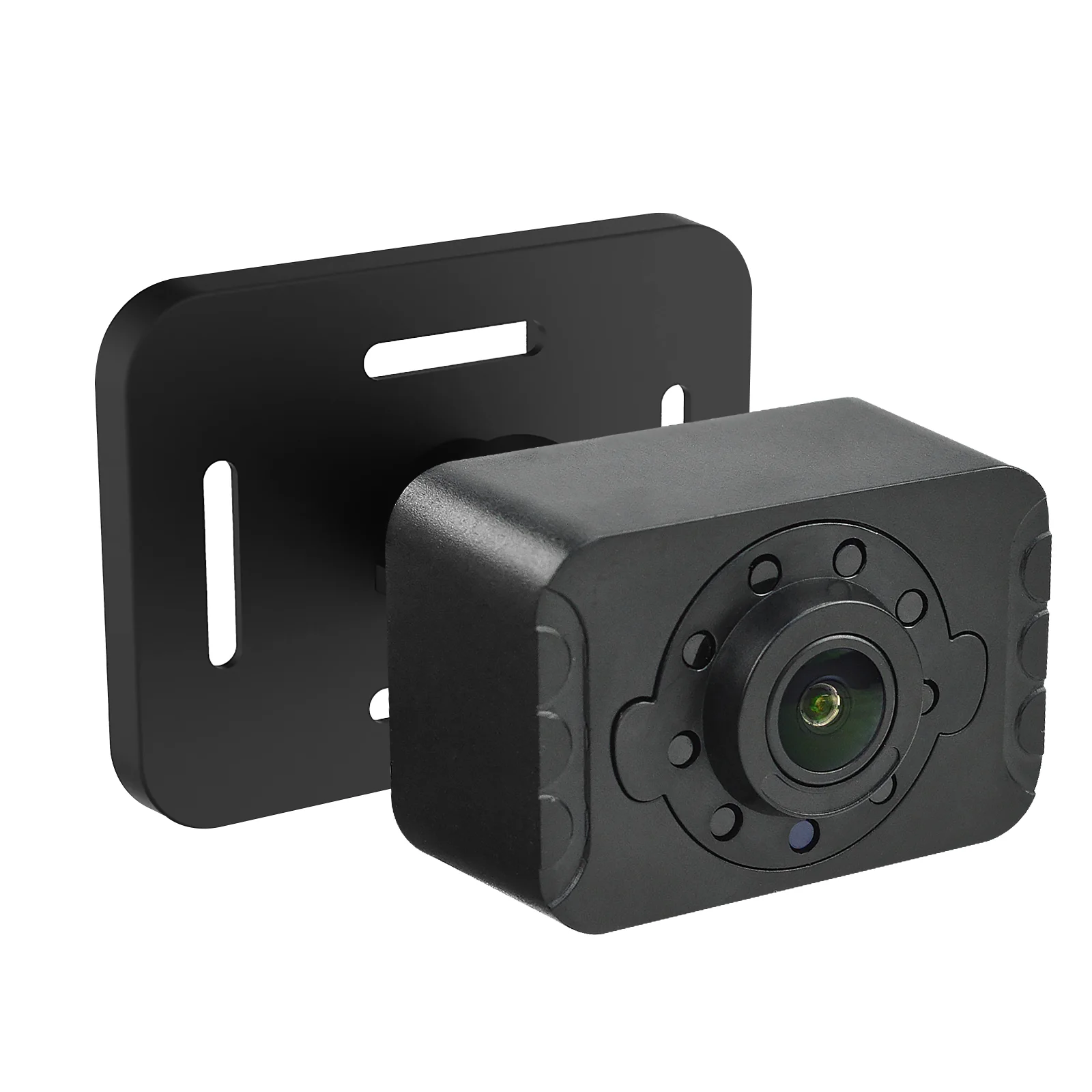

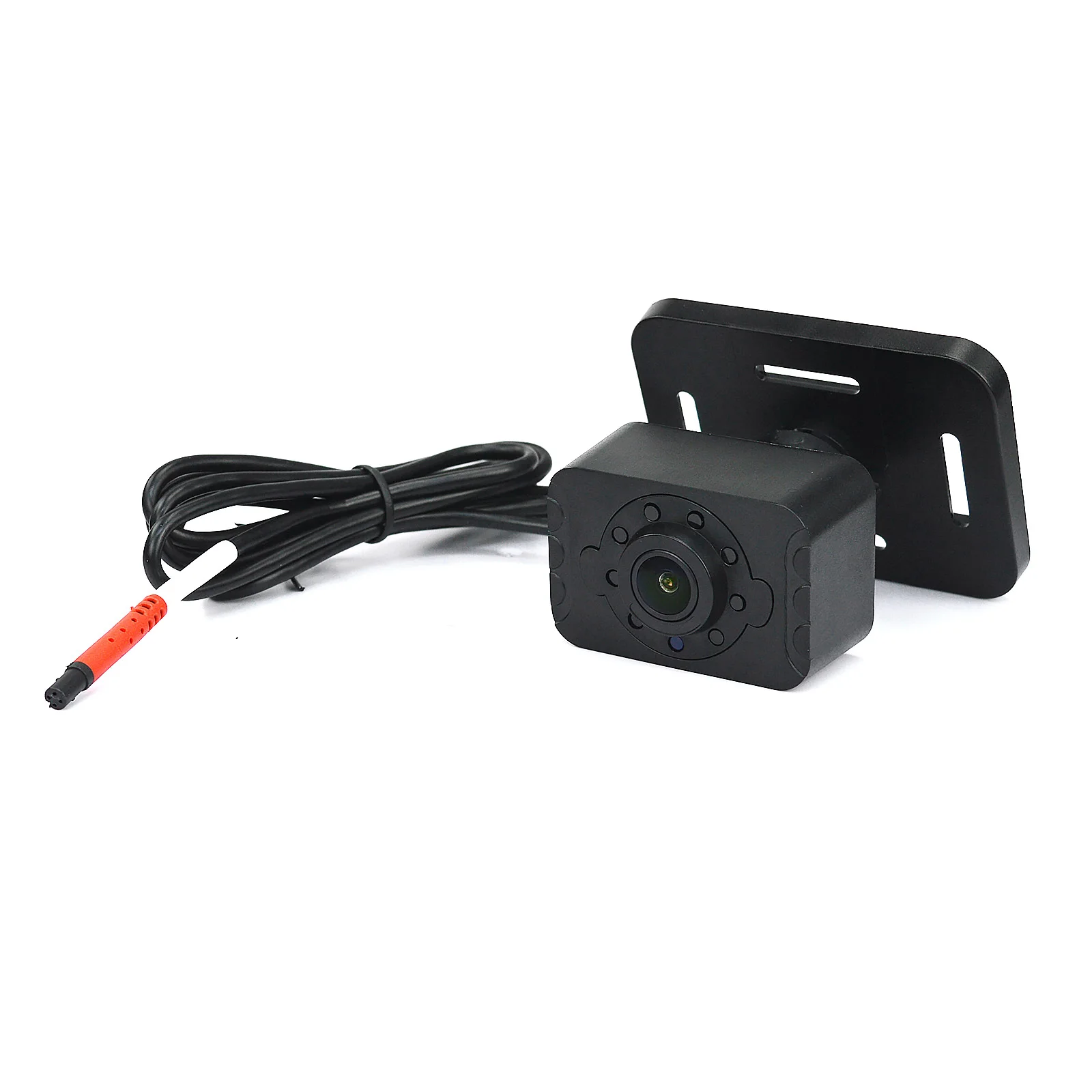

- Camera with eight infrared LEDs and a 120° viewing angle.

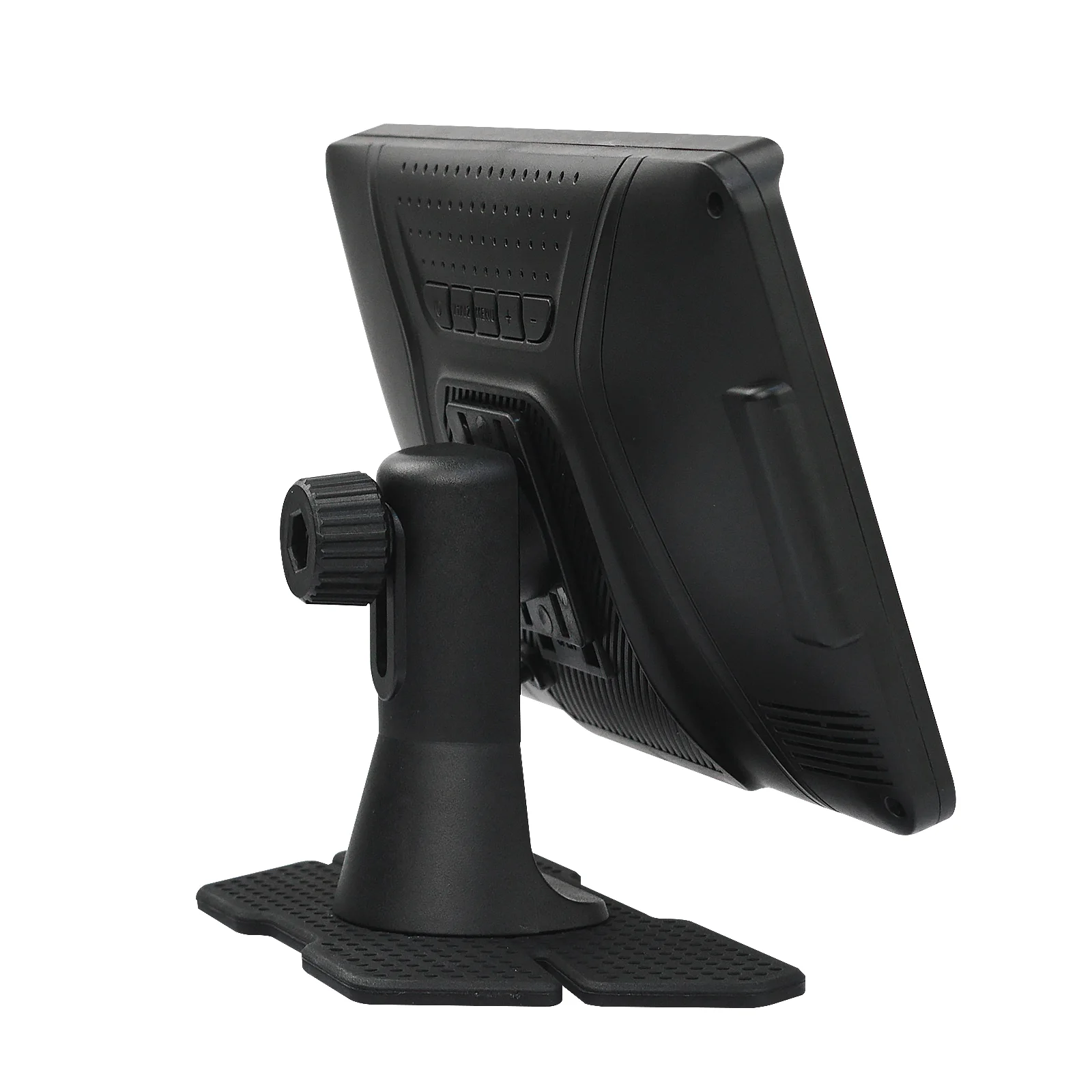

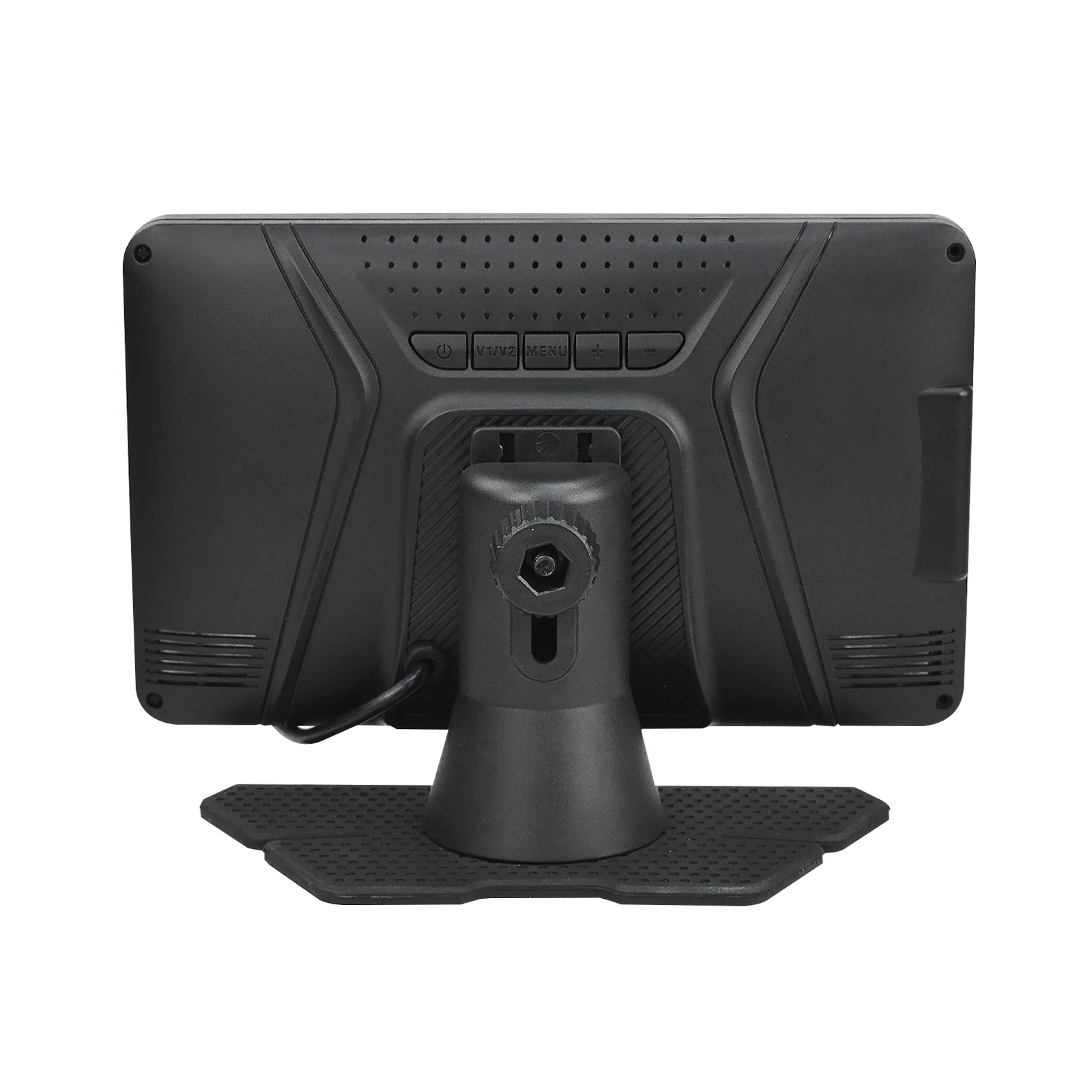

- Adjustable camera and monitor brackets with 360° rotation.
- 3× zoom and screen saver mode.

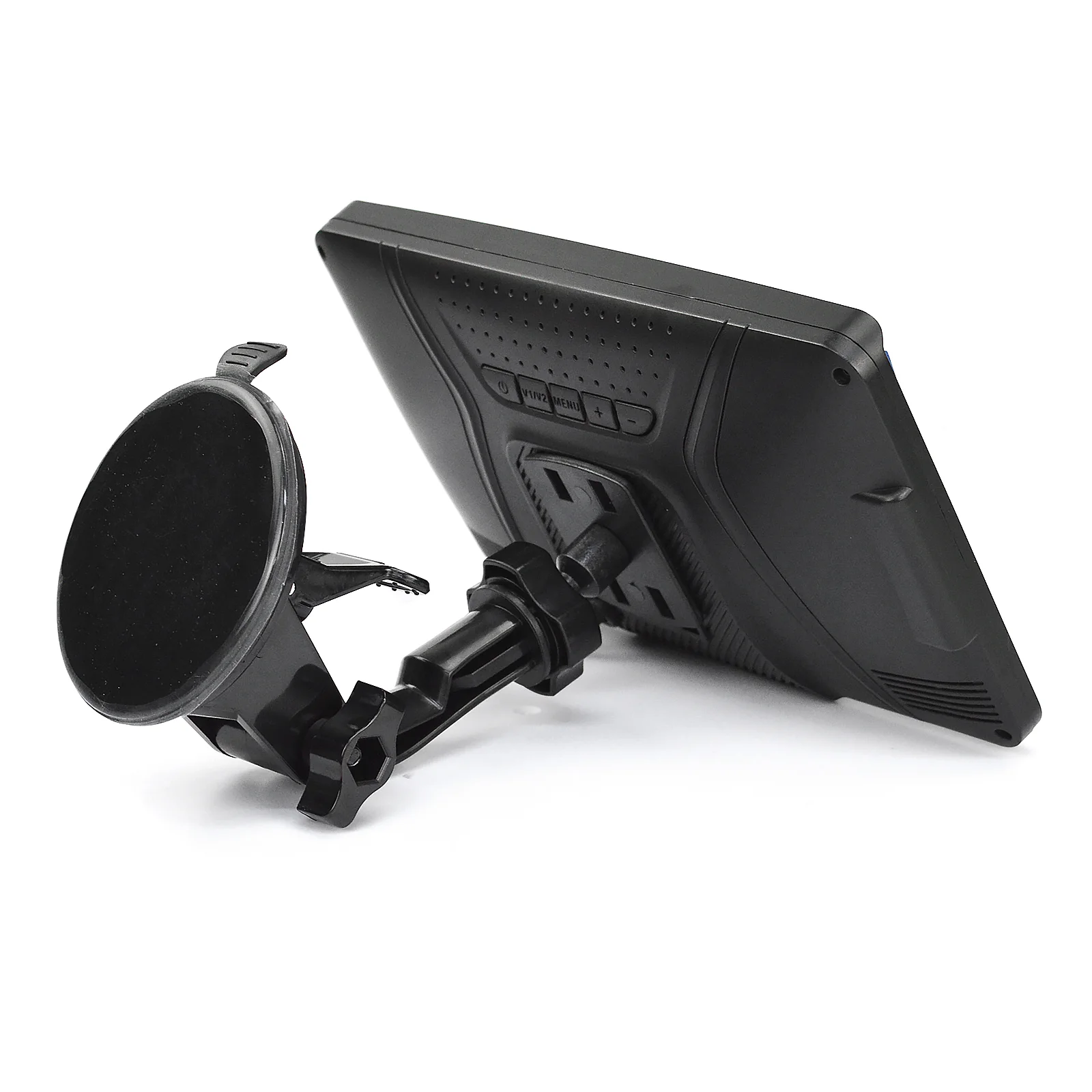

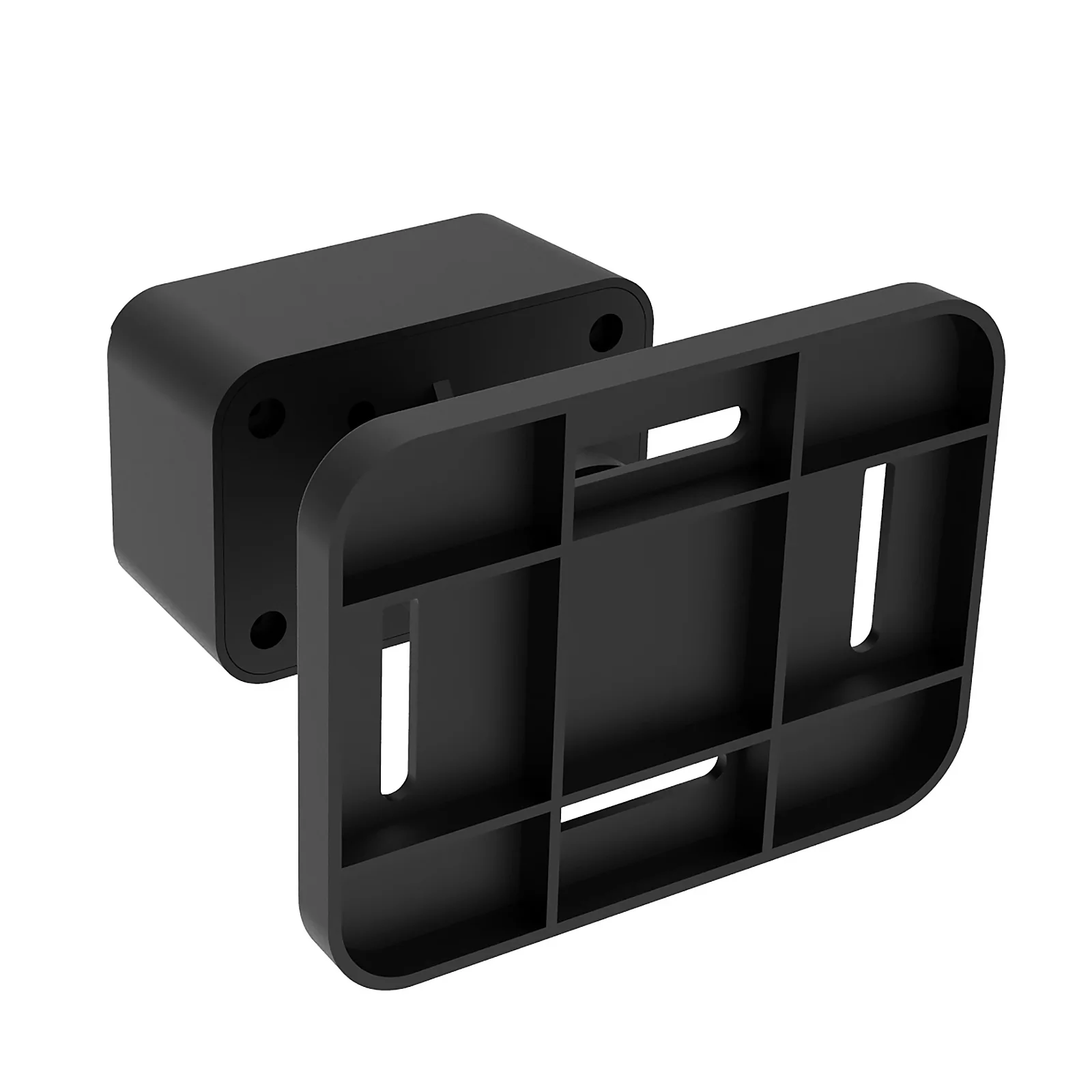

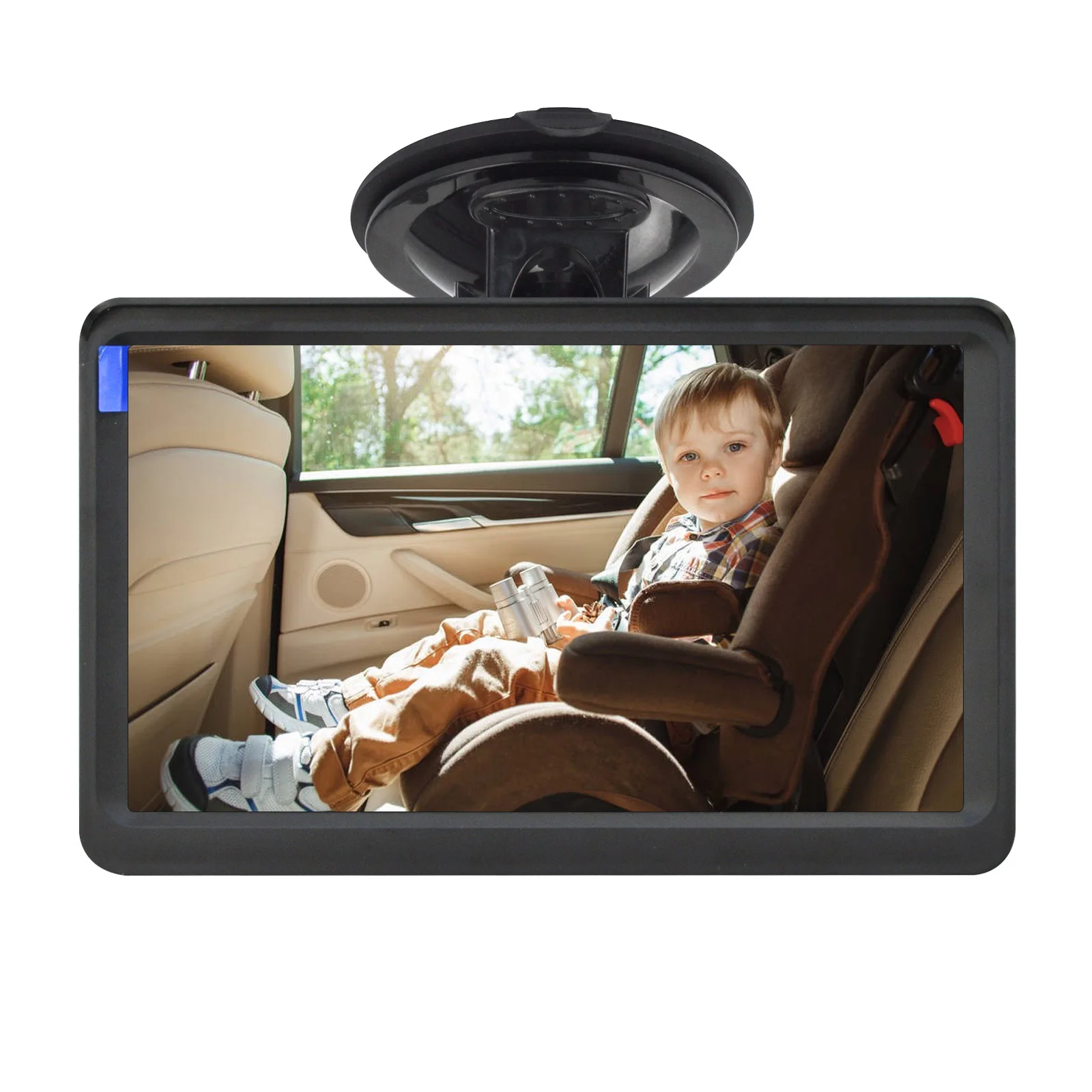

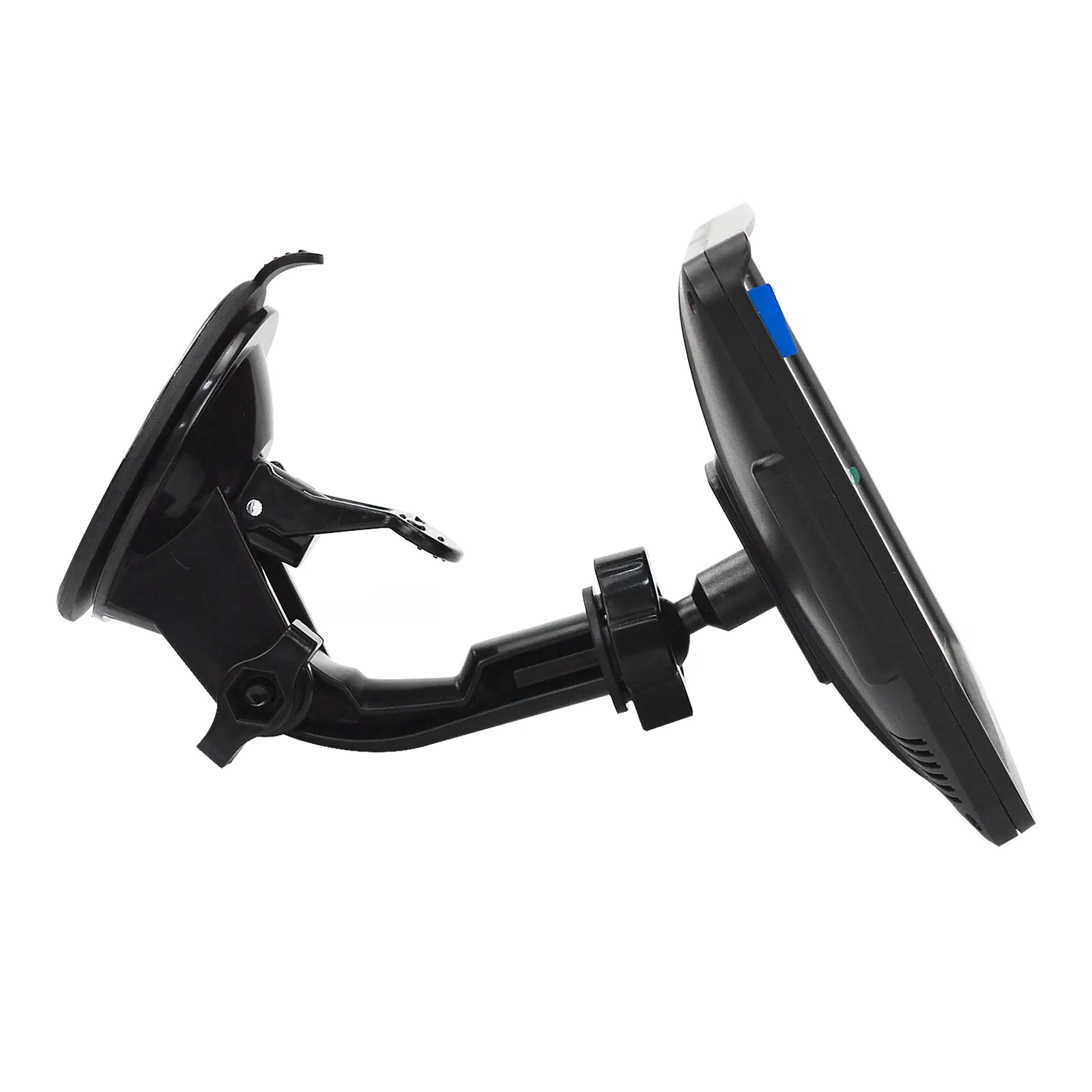

- Headrest camera straps and a suction-cup bracket for dashboard or windshield mounting.
- Car charger and USB power options.
Installation and compatibility
Strap the camera to the headrest, secure the monitor and connect the supplied cables and power adapter. Confirm the headrest arrangement, mounting position, power connection and cable route for your vehicle before ordering.

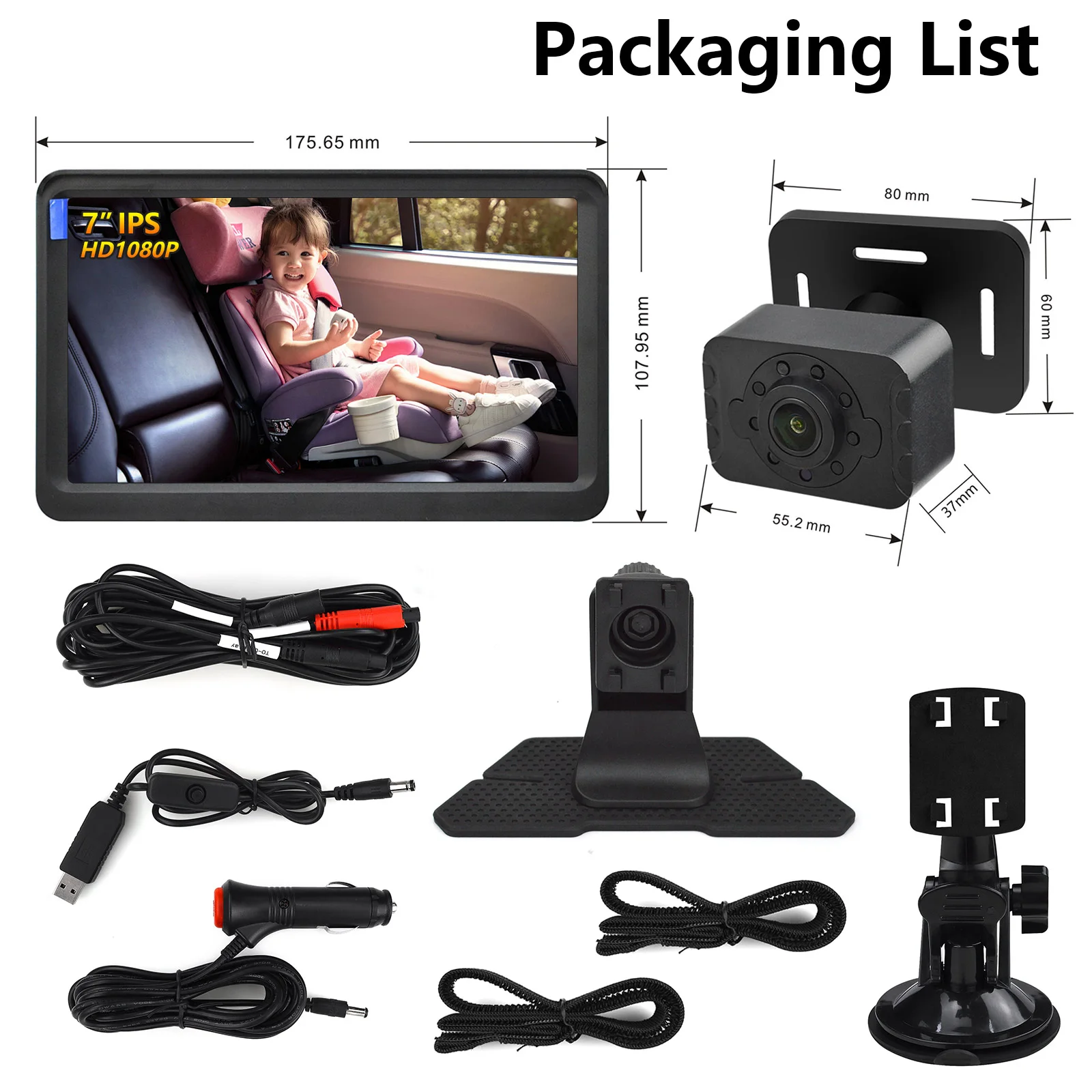

Package contents
- 1 × baby car camera
- 1 × 7-inch monitor
- 1 × car charger
- 1 × video cable
- 1 × USB charger
- 2 × camera straps
- 1 × windshield bracket
- 1 × user manual
