ERG-4579
7-inch IPS Wired Reversing Camera Kit with Two Cameras
Open full-size image ↗
1 / 13
- Screen size
- 7-inch IPS
- Monitor resolution
- 800 × 480
- Video inputs
- 2
- Included cameras
- 2
Wired rear-view kit with a 7-inch IPS monitor, two cameras, dual video inputs, automatic reversing view and 15 m four-pin camera cables.
Specifications
General
- Screen size
- 7-inch IPS
- Monitor resolution
- 800 × 480
- Video inputs
- 2
- Included cameras
- 2
- Connection
- Wired, four-pin
- Camera cable length
- 15 m / 50 ft
Monitor
- Power supply
- DC 9–35V
- Display format
- 4:3 / 16:9 selectable
- Video system
- PAL / NTSC
- Brightness
- 400 cd/m²
- Power consumption
- 7.5W
- Controls
- Front keys and remote control
Show 3 more specifications
- Menu languages
- Chinese, English, Japanese, German, French, Russian, Spanish, Portuguese, Italian, Polish
- Operating temperature
- -20°C to +75°C
- Storage temperature
- -20°C to +75°C
Cameras
- Image sensor
- 1/3-inch CMOS
- Viewing angle
- 120°
- Waterproof rating
- IP68
- Power supply
- DC 12V
- Video system
- PAL / NTSC
- Minimum illumination
- 0.01 lux
Show 1 more specifications
- Night vision
- Infrared; 12-LED / 18-LED variants
Full product details
Product overview
ERG-4579 is a wired reversing camera kit with a 7-inch IPS monitor and two rear-view cameras. Dual video inputs support two viewing positions, and the monitor switches automatically to the reversing camera image when reversing.
Product details
- 7-inch IPS monitor with an 800 × 480 display and selectable 4:3 / 16:9 format.

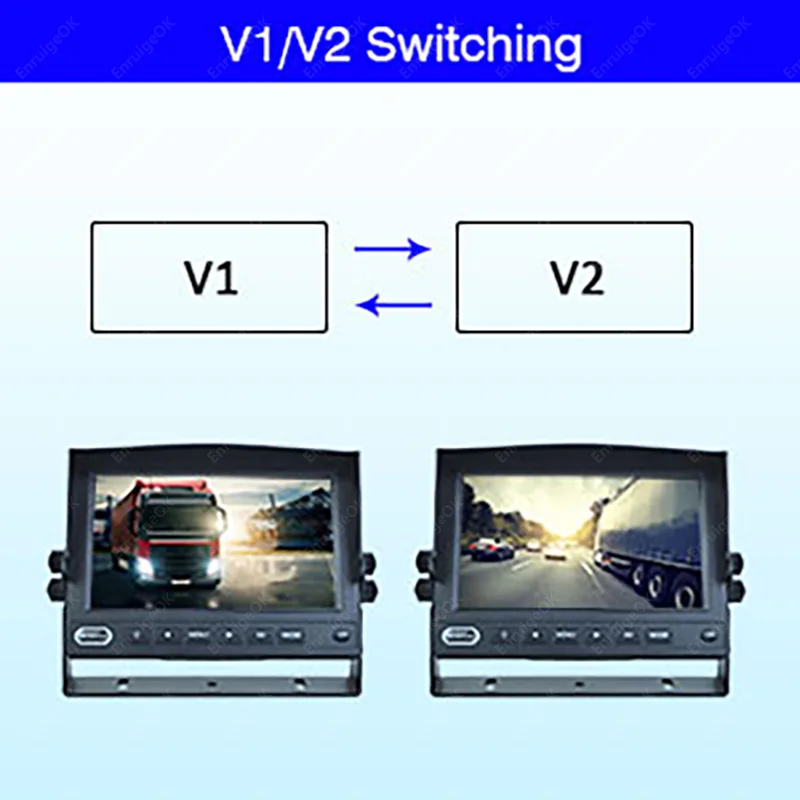

- Two video inputs for rear and additional camera views.

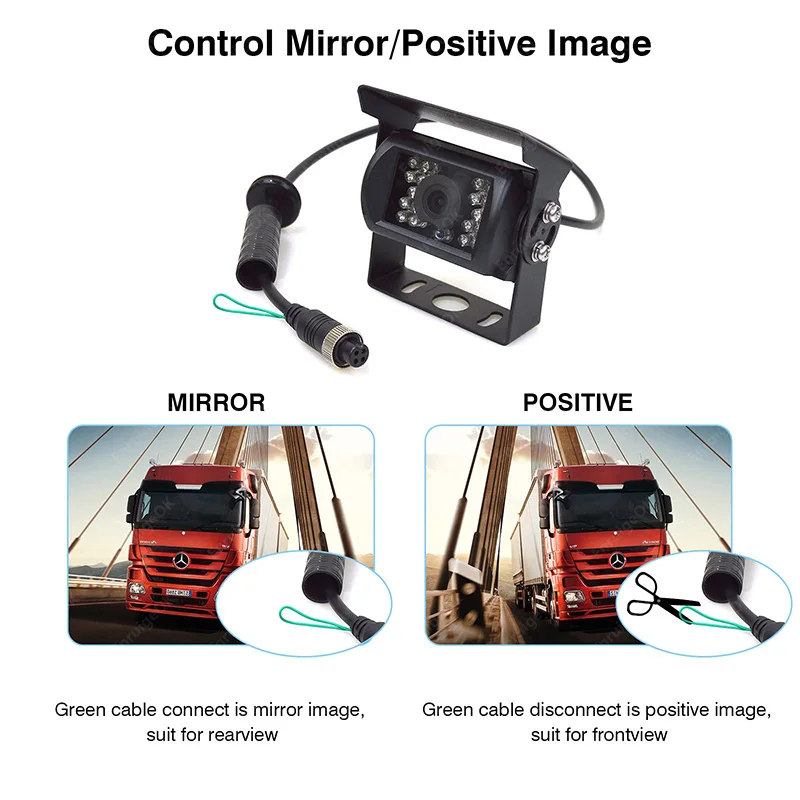

- Camera viewing angle of 120°, with a six-layer glass lens.

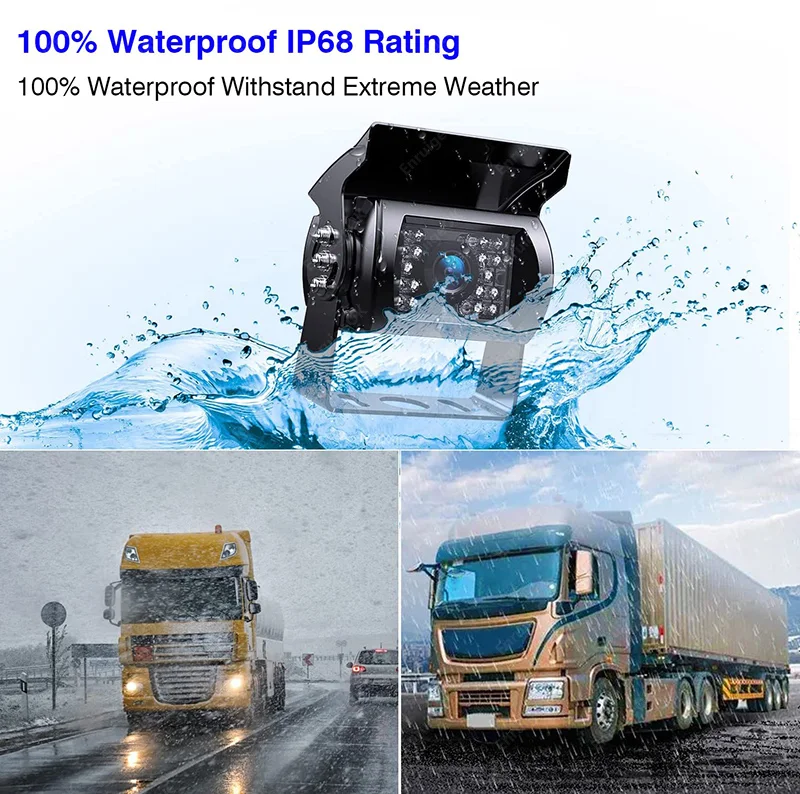

- Infrared night vision and IP68 camera protection; 12-LED and 18-LED camera variants are listed by the source.

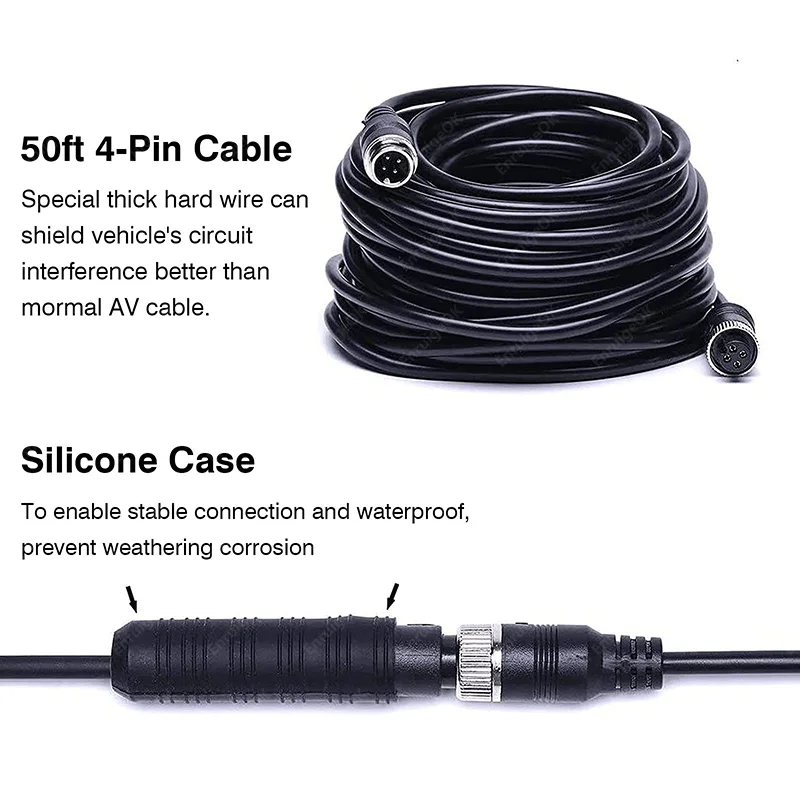

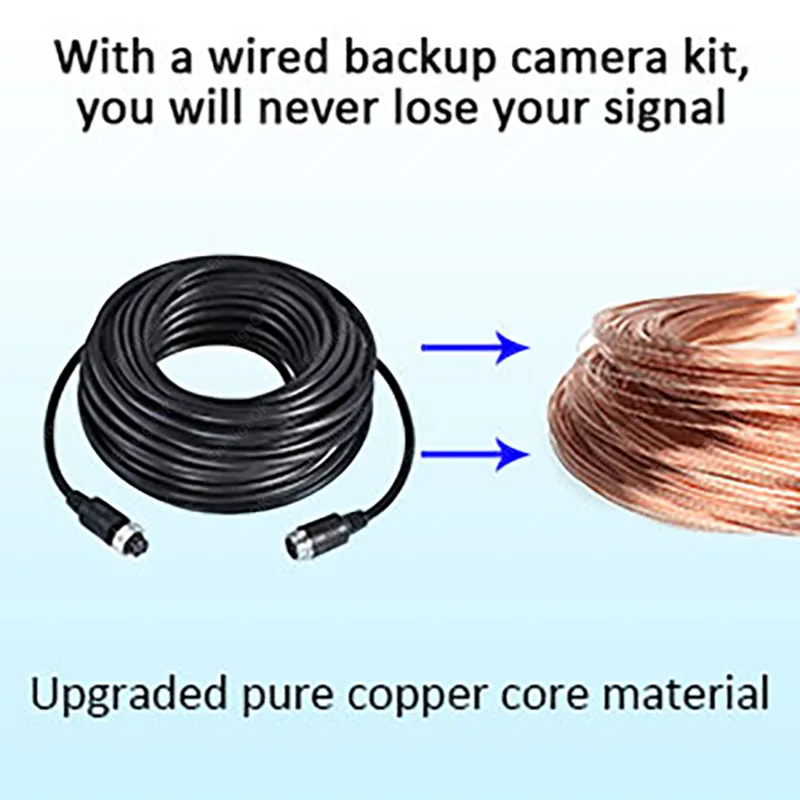

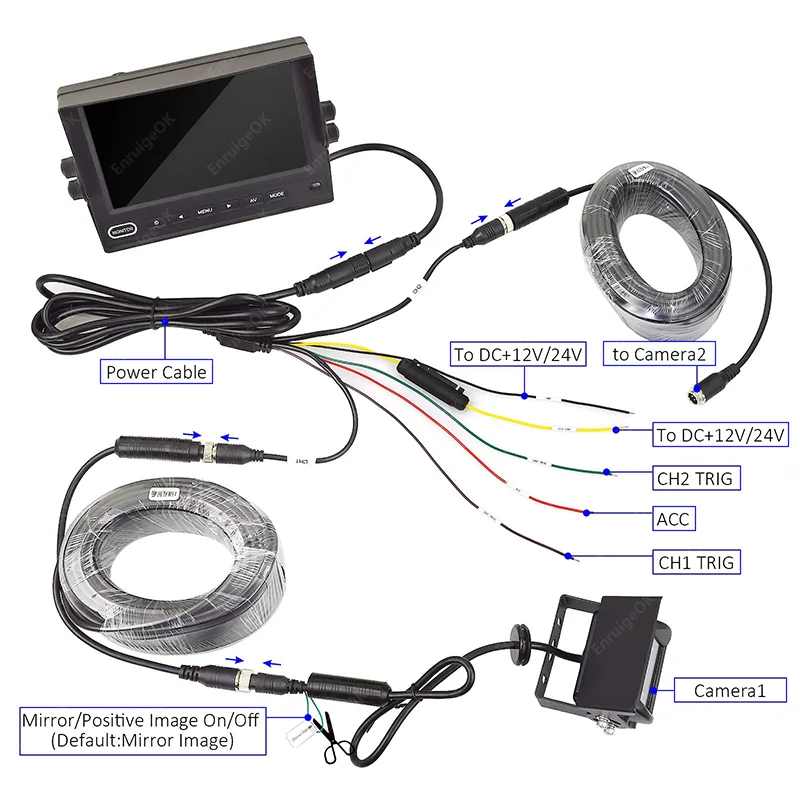

- 15 m (50 ft) four-core camera cables with four-pin waterproof connectors.
- Monitor controls through front keys and a remote control.

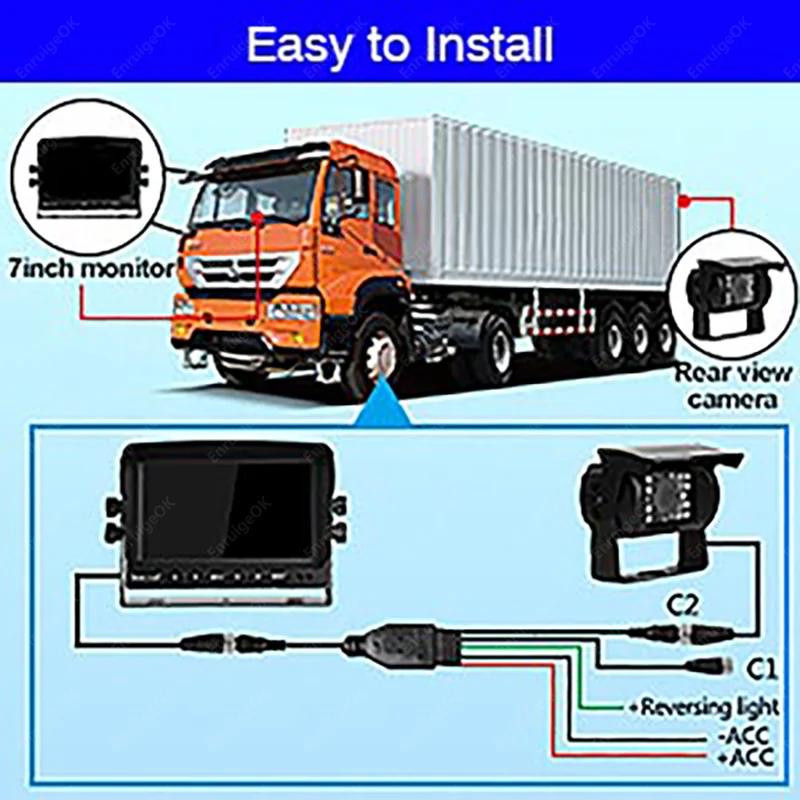

Installation and compatibility
Intended for camera installations on cars, trucks, trailers, buses, vans, agricultural and heavy-duty vehicles. The monitor accepts DC 9–35V and the cameras require DC 12V. Confirm camera power, signal compatibility, mounting locations and cable length before ordering.
Confirm the supplied camera signal and resolution configuration when requesting a quotation.

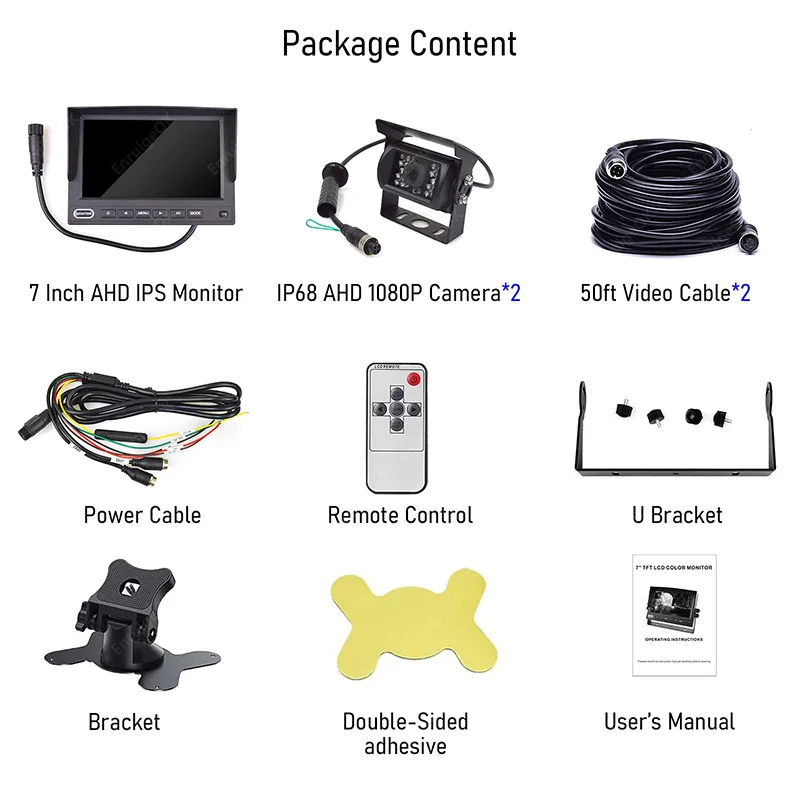

Package contents
- 1 × 7-inch IPS monitor
- 2 × IP68 cameras
- 1 × power cable
- 1 × remote control
- 2 × 50 ft video cables
- 1 × U-bracket
- 1 × additional bracket
- 1 × double-sided adhesive
- 1 × user manual
