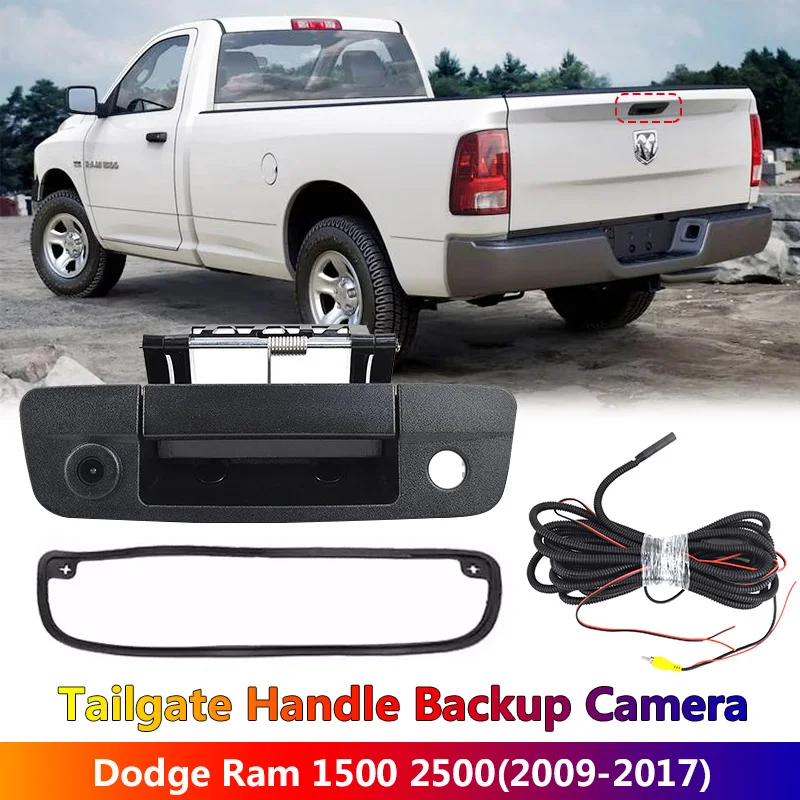

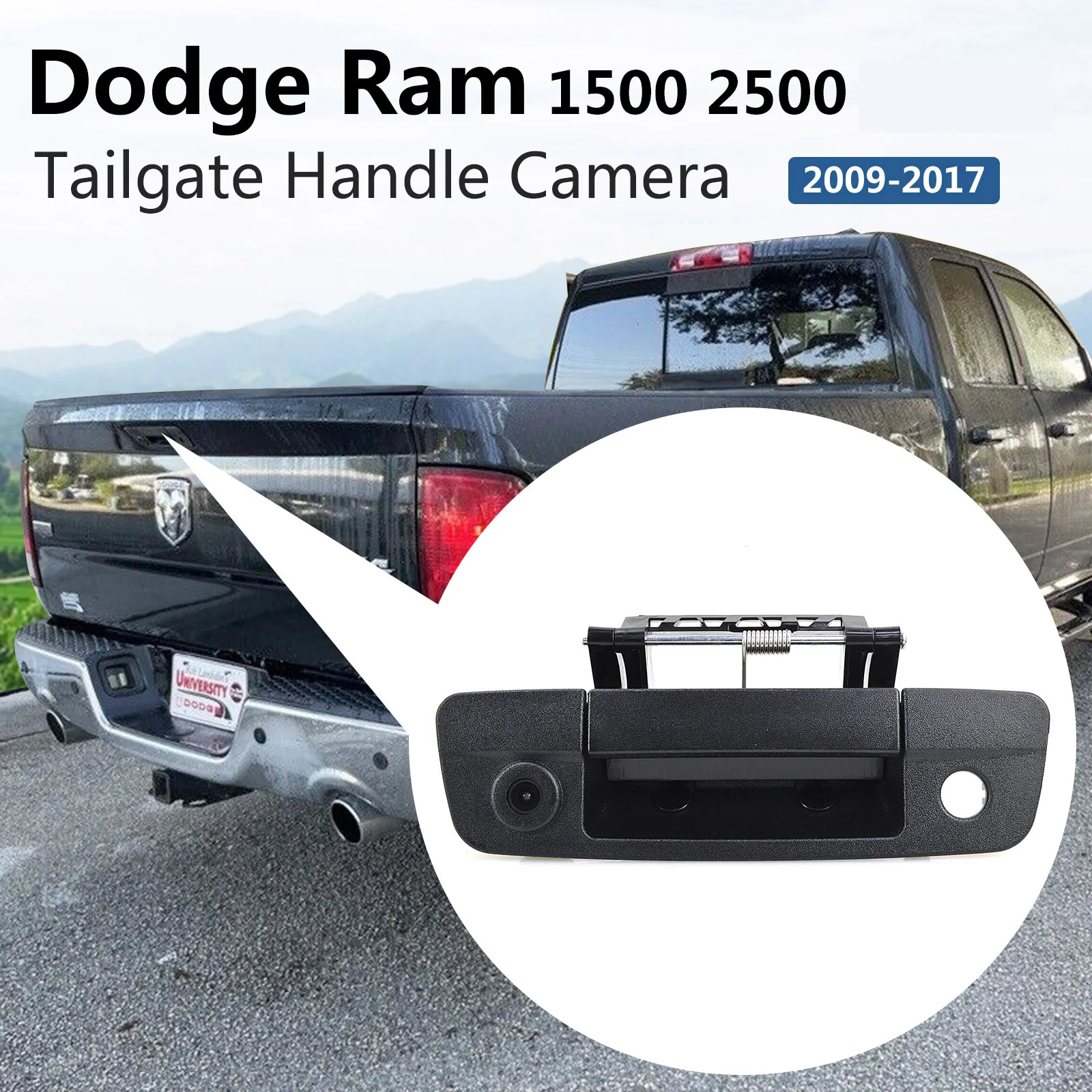

Dodge ram 1500 2500 3500 tailgate handle reverse rearview camera (2009-2017)

Product overview

ERG-S65CVBS/AHD

* Manufactured from high quality materials, meets or exceeds OEM standards and very stable.
*This reversing camera with 120-degree viewing angle shows rich details about the environment behind the car for you.
*100% Waterproof. This camera built with IP68 rating, which make it 100% waterproof.
*Anti-interference. The video extension cable is equipped with a tube sleeve and copper core wire. Double-shielded cable makes the rear camera with stable transmission, anti-interference, and anti-oxidation.
* Easy installation. This reverse parking camera will fit exactly like the OEM, you can connect the camera’s power to reverse light, then connect the rearview camera to your radio screen or monitor by universal monitors (RCA) cable with Hi-definition color pictures, sensitive real-time and continuous.

Product details

Camera Specifications:
Image sensor: 1/3″ CMOS
TV system: PAL/NTSC option
Waterproof rating: IP68
Viewing angle: 120°
Effective pixel: 733(H)x493(V)
Horizontal sync frequency: 15.625KHZ
Scanning system: 2:1 interface
Sync system: Internal
ACG: Auto
BLC: Auto
Resolution: CVBS 700TV Lines
S/N Ratio: > 48dB
Current consumption: < 150mA
Minimum illumination: 0.1-0.5Lux / F = 1.2
Power supply: DC12V
Power: 5W
Operating temperature: -20℃ to +70℃

Package contents:
1×Tailgate Handle Backup Camera
1×8 m/26ft. extension cable
1×Manual
