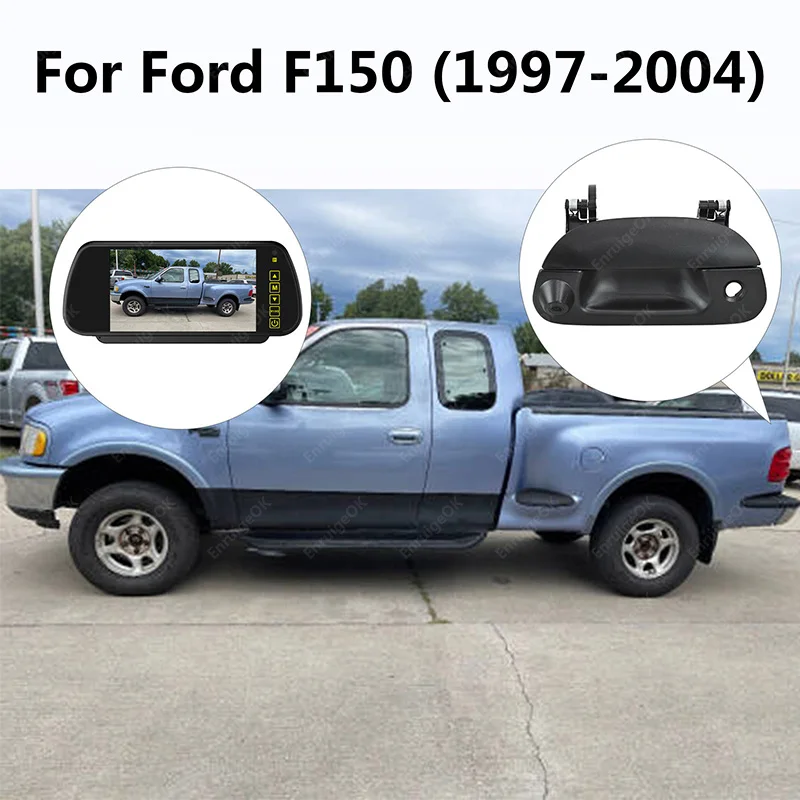

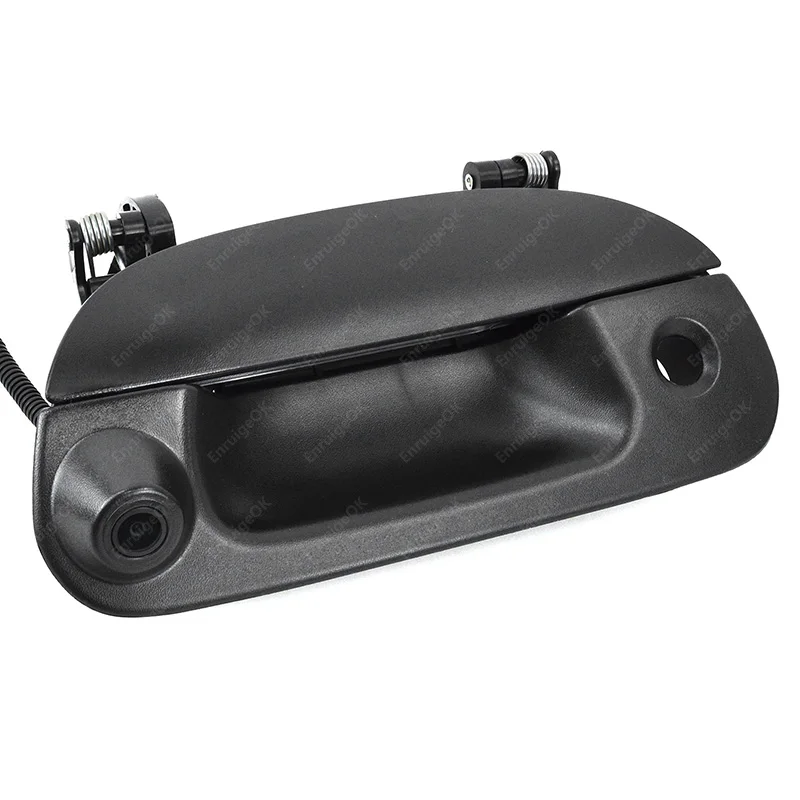

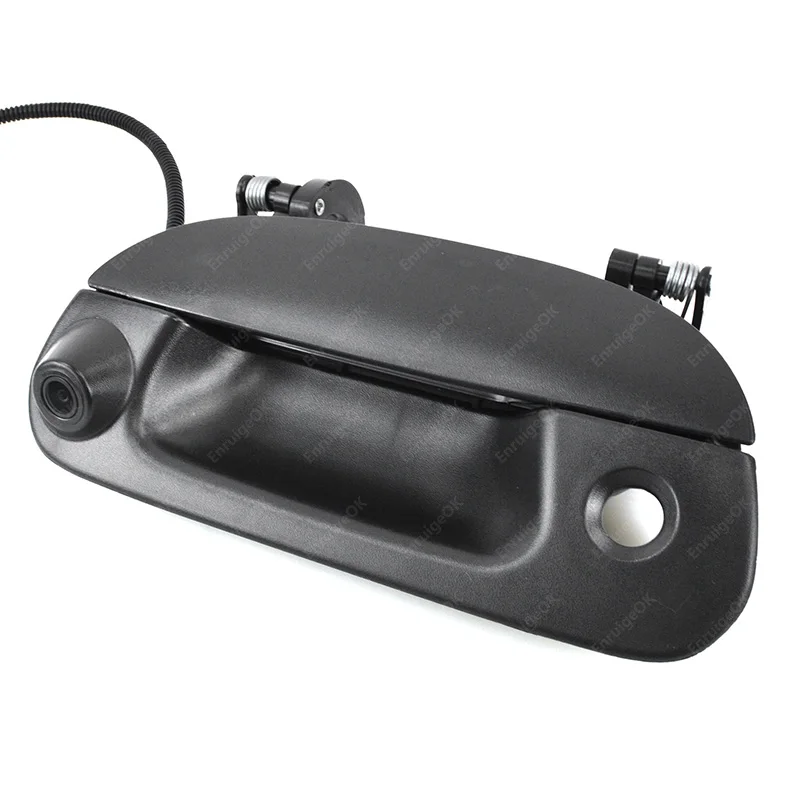

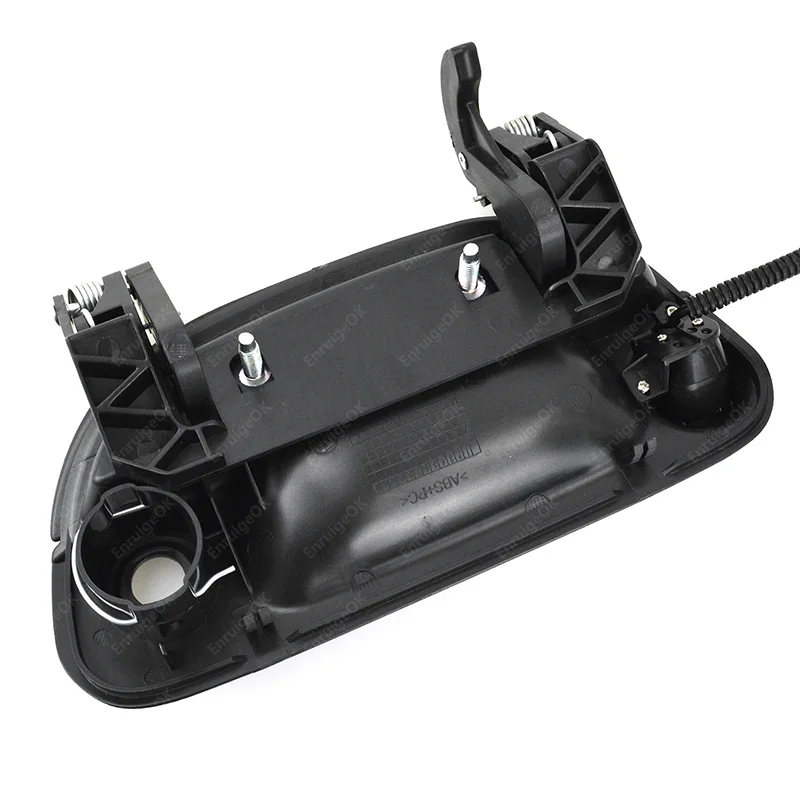

Factory Replacement Tailgate Handle Camera for Ford F150 Super Duty 1997-2004 & Ford Explorer Sport Trac2001-2005

Product overview

ERG-S46CVBS/AHD

Features:
*High quality and high performance
Manufactured from high quality materials, meets or exceeds OEM standards and very stable.
*Safe parking
Rear Park backup camera through the 120° wide-angle camera device, the obstacle behind the car is clearly visible.
*Easy installation
This reverse parking camera will fit exactly like the OEM, you can connect the camera’s power to reverse light, then connect the rearview camera to your radio screen or monitor by universal monitors (RCA) cable with Hi-definition color pictures, sensitive real-time and continuous.

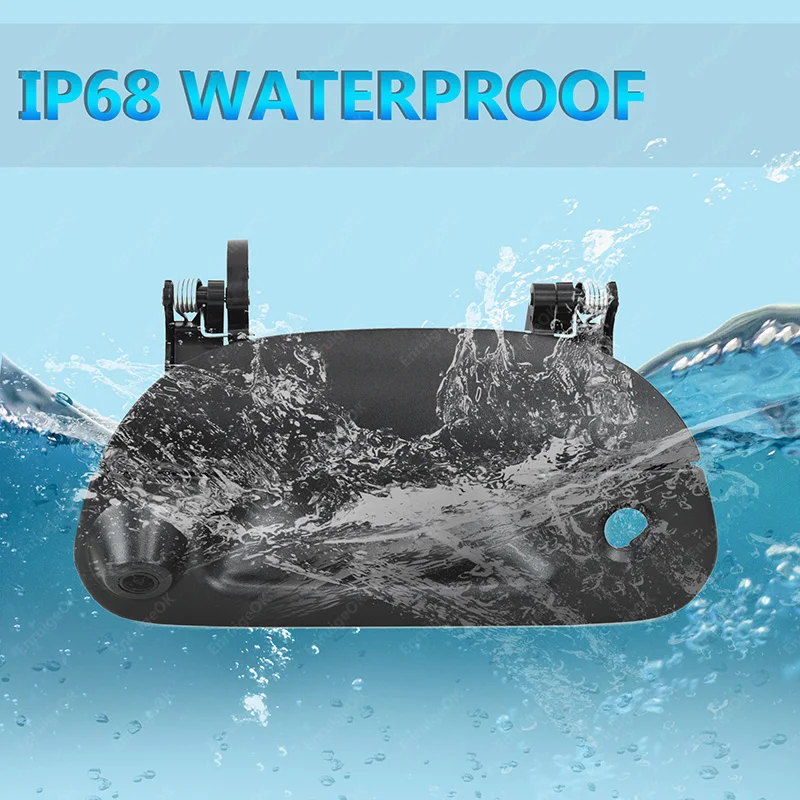

*IP68 waterproof
The backup camera is made of high purity with international standard IP68 waterproof. And our tailgate handle is crafted from reinforced PC material and surface-treated to create a durable surface.
*Anti-interference
The video extension cable is equipped with a tube sleeve and copper core wire.Double-shielded cable makes the rear camera with stable transmission, anti-interference, and anti-oxidation.

Product details

Specifications:
– Image sensor: 1/3 “CMOS
– TV system: PAL/NTSC
– waterproof rating: IP68
– Viewing angle: 120°
– Effective pixel: 733(H)x493(V)
– Horizontal sync frequency: 15.625KHZ
– Scanning system: 2:1 interface
– Sync system: Internal
– ACG: Auto
– BLC: Auto
– Resolution: 700TV Lines
– S/N Ratio: better than 48dB
– Current consumption: no more than 150mA
– Minimum illumination: 0.1 – 0.5Lux / F = 1.2
– Power supply: DC12V
– Power: 5W
– Operating temperature: -20℃ to +70℃

Package Includes:

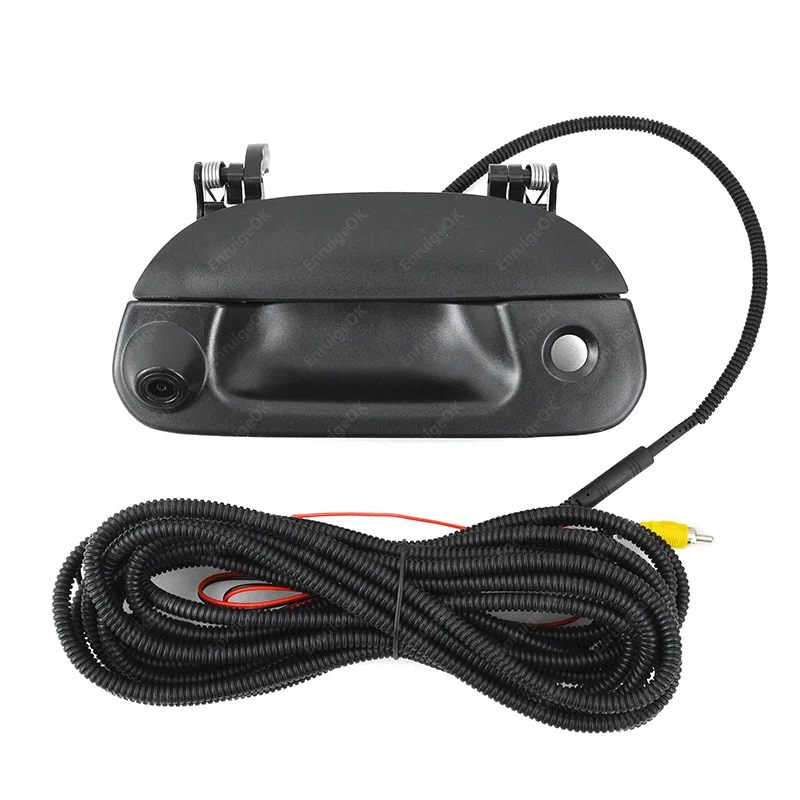

1×Tailgate Reverse Camera
1×8m Extension Cable
1×Manual
